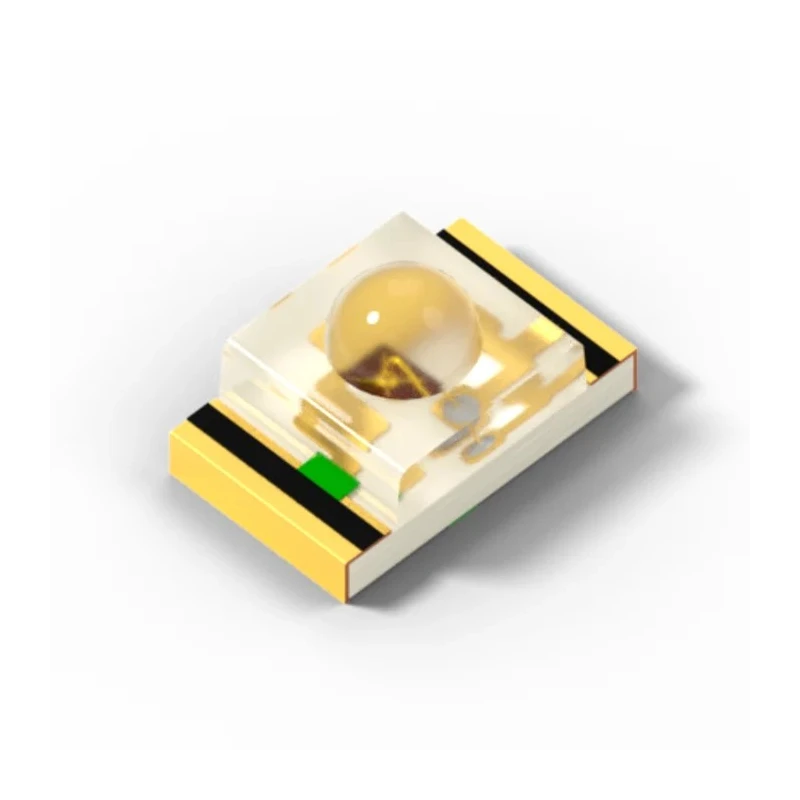

Kingbright 1.75 V Red LED SMD Surface Mount Light Emitting Diode KPTD-2012LVSURCK
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPTD-2012LVSURCK |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPTD-2012 |
| Maximum forward current | 30mA |
| Viewing angle | 40 ° |
| Package Type | SMD |
| Standards/Approvals | RoHS Compliant |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 1.75V |
| Number of Pins | 2 |
| LED Luminosity | 150 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 2.0 x 1.25 x 1.05 mm |
| Lens Shape | Round |
Key Features
- This LED features a clear round lens with compact dimensions of 2.0 x 1.25 x 1.05 mm.
- It has a luminous intensity of 150 mcd, suitable for backlighting and indicator applications.
- The device is RoHS compliant and halogen-free, meeting environmental standards.
- The LED is packaged in tape and reel format with 3000 pieces per reel for automated assembly.
- It has a viewing angle of 40 degrees, providing focused illumination.
- Designed for surface mounting, it features 2 pins for electrical connection.
- It has a maximum power dissipation of 75 mW ensuring low power consumption.
- The dominant wavelength is 630 nm, producing a bright red light output.
Product Description
Kingbright KPTD-2012LVSURCK is a new, high-quality red LED SMD surface mount device designed for various electronic applications including industrial indicators, backlighting, and display technologies.
This LED uses AlGaInP on GaAs substrate technology, resulting in efficient light emission at a forward voltage of 1.75 V and capable of handling a maximum forward current of 30 mA. The compact package size of 2.0 x 1.25 x 1.05 mm and low power consumption of up to 75 mW make it ideal for space-constrained circuit designs.
The device features a clear round lens with a 40° viewing angle, offering focused red light emission at a dominant wavelength of 630 nm and a luminous intensity of 150 mcd, suitable for various lighting and display applications.
Environmentally compliant, this LED is RoHS compliant and halogen-free. It is supplied in tape and reel packaging containing 3000 pieces per reel, facilitating easy integration into automated manufacturing processes.
Care should be taken to avoid damage from electrostatic discharge and power surges during handling; proper grounding and electrostatic protection are recommended. Compact 2.0 x 1.25 x 1.05 mm size with 1.05 mm thickness.
Low power consumption of 75 mW maximum. Red light emission at 630 nm wavelength. 40° viewing angle with clear round lens. Surface mountable with 2 pins. Packaged 3000 pcs per tape & reel for automated mounting. RoHS compliant and halogen-free for environmental safety.
This Kingbright KPTD-2012LVSURCK LED is a reliable choice for electronic component applications requiring efficient, compact, and high-quality red LED lighting. It is widely used across industries including electronics manufacturing, instrumentation, communication devices, automotive indicators, and consumer electronics.
Explore more LED components and related parts in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Kingbright KPTD-2012LVSURCK LED is 30 mA.
This LED operates at a forward voltage of 1.75 V.
The luminous intensity of this model is 150 mcd.
The viewing angle of the Kingbright KPTD-2012LVSURCK is 40 degrees.
The dimensions of the KPTD-2012LVSURCK are 2.0 x 1.25 x 1.05 mm.
This LED is packaged in tape and reel format, containing 3000 pieces per reel for automated assembly.
The KPTD-2012LVSURCK is designed for surface mounting and features 2 pins for electrical connection.
The dominant wavelength of the light emitted by this model is 630 nm, producing red light.
This LED is RoHS compliant and halogen-free, meeting environmental safety standards.
The maximum power dissipation for the KPTD-2012LVSURCK is 75 mW.
This LED is suitable for various applications including industrial indicators, backlighting, and display technologies.
Care should be taken to avoid damage from electrostatic discharge and power surges during handling; proper grounding and electrostatic protection are recommended.
