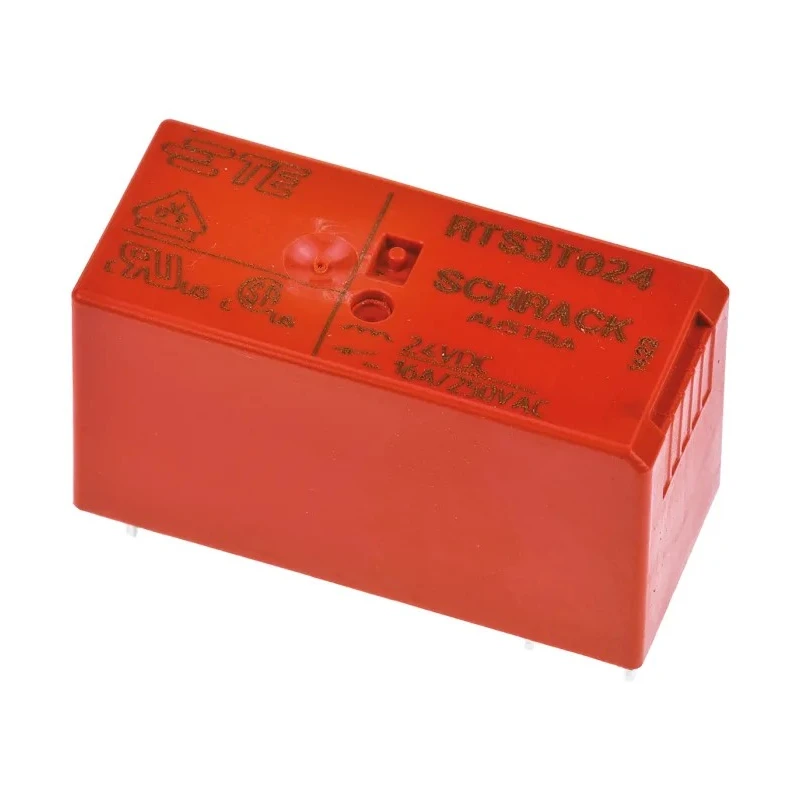

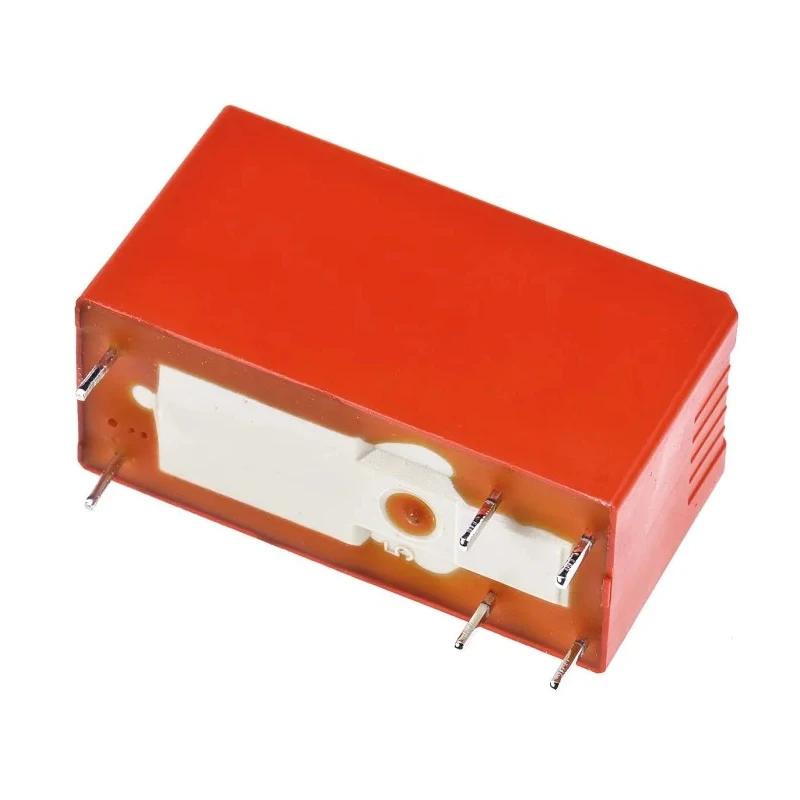

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPST RTS3T024

TE Connectivity RTS3T024 PCB Power Relay features a 24V DC coil voltage and supports a switching current of 16A with a Single Pole Single Throw (SPST) contact configuration. This relay is designed for PCB mount applications with solder terminals, making it ideal for integration into various electrical and electronic systems.

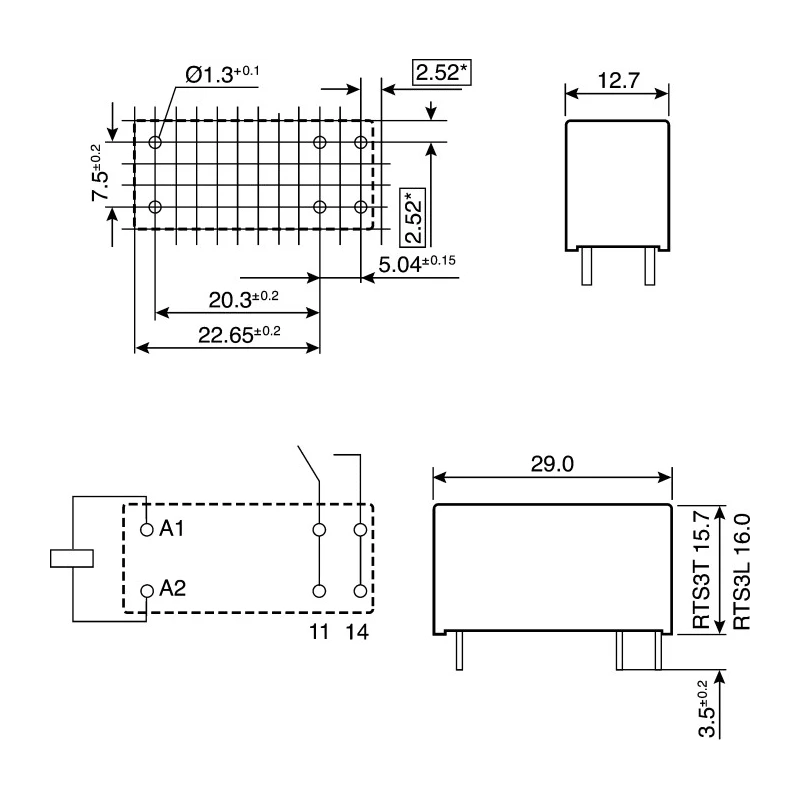

Measuring 29mm in length, 12.7mm in width, and 15.7mm in height, it offers a compact form factor suitable for space-constrained circuit boards. The coil resistance of 1.4kΩ and power consumption of 250mW contribute to energy-efficient operation. It is rated for operation within a wide temperature range from -40°C to 85°C, supporting use in diverse industrial, commercial, and laboratory environments.

This relay complies with IEC 60335-1, VDE, and RoHS standards, ensuring it meets rigorous safety, environmental, and quality benchmarks. The contact material utilized is tungsten silver tin oxide, providing high durability and consistent switching performance. Reinforced insulation and a creepage and clearance distance of 10mm enhance safety, making the relay suitable for high inrush currents and demanding loads.

Its high making and breaking capacity rated at 16A @ 250Vac according to IEC 60669-1 standard makes it apt for a variety of applications including lighting control systems, movement sensors, motors, and filament/incandescent lamp loads.

Operates with a 24V DC coil voltage to ensure reliable power relay switching. Supports a maximum switching current of 16 amperes for strong load handling. Designed for PCB mounting with solder terminal type for secure installation.

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize space usage. Coil resistance of 1.4k ohms and power consumption of 250mW provide energy efficiency. Wide operating temperature range from -40°C to 85°C for diverse environmental conditions.

Compliance with IEC 60335-1, VDE, and RoHS standards ensures safety and environmental responsibility. Features tungsten silver tin oxide contact material for durability and reliable switching. Suitable for applications including lighting systems, motors, filament and incandescent lamp loads.

Reinforced insulation and 10mm creepage and clearance distances enhance operational safety.

This relay is ideal for industrial automation, electrical control panels, HVAC systems, lighting control, and other commercial and industrial electrical applications. TE Connectivity's RTS3T024 ensures high performance, reliability, and safety in demanding environments.
