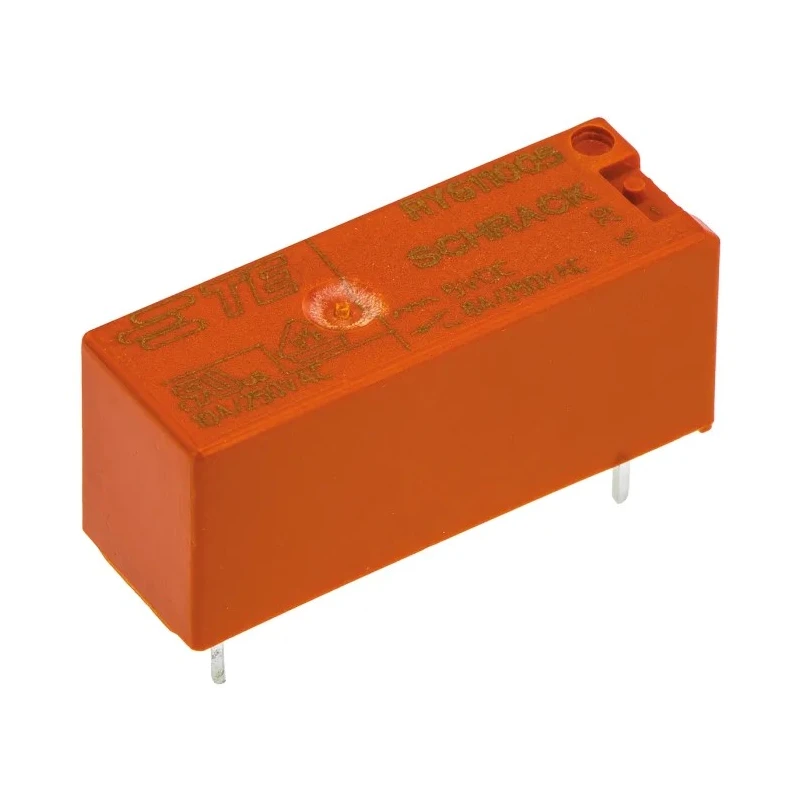

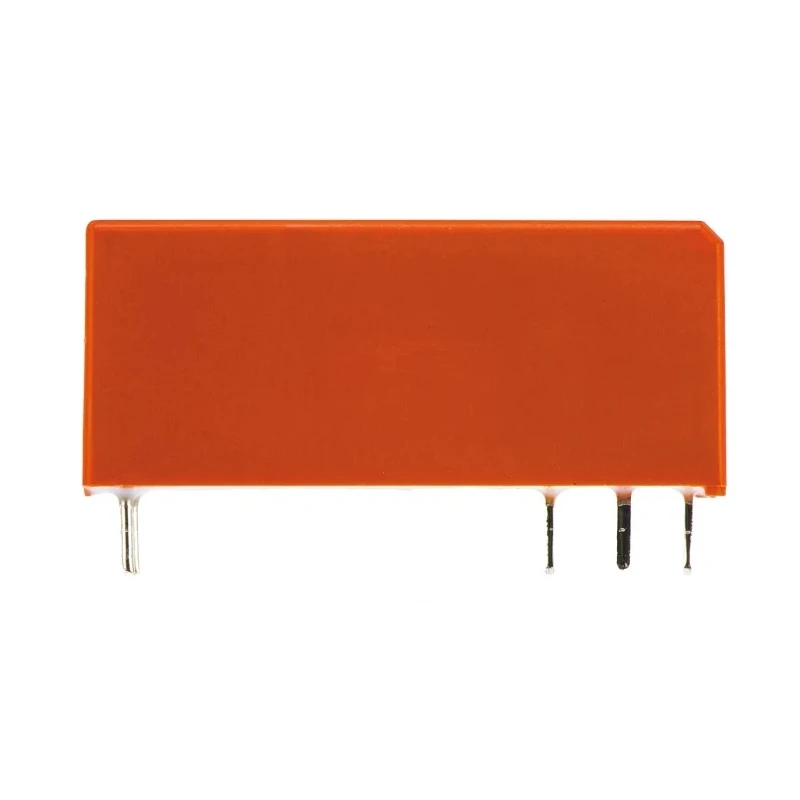

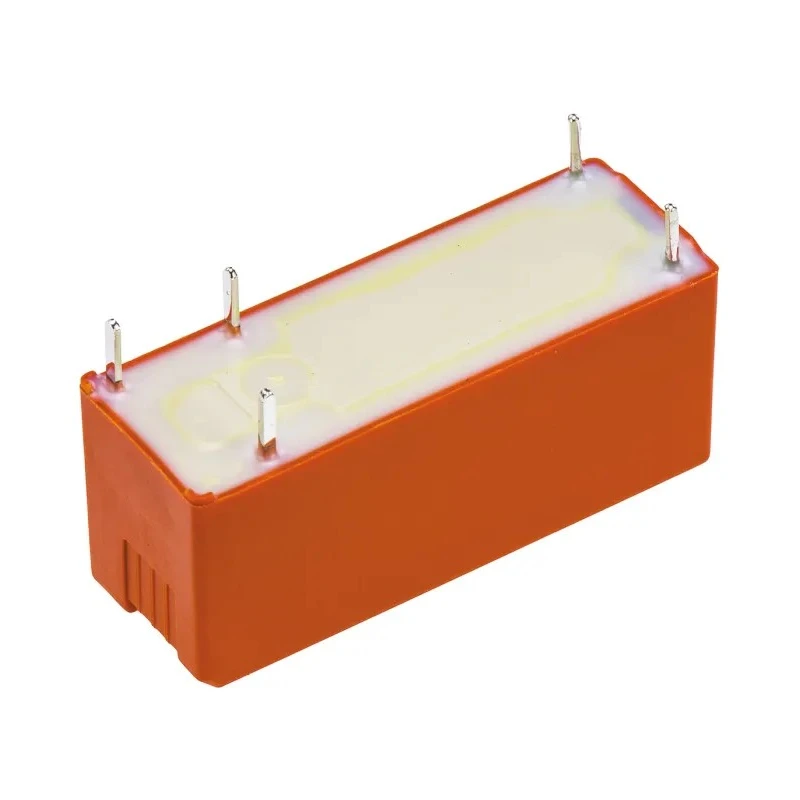

TE Connectivity PCB Power Relay, 5V DC Coil, 8A Switching Current, SPDT RY611005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |

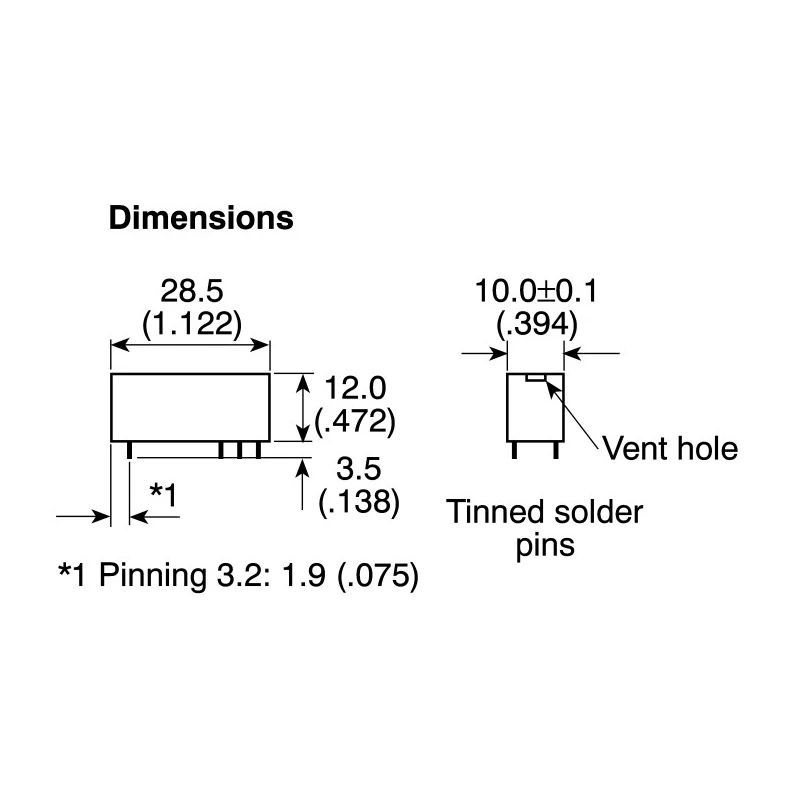

| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY611005 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 112Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Equipped with a 5V DC coil voltage for efficient power usage.
- Capable of switching currents up to 8 amperes.
- SPDT (Single Pole Double Throw) contact configuration for flexible circuit design.
- Designed for PCB mounting with solder terminal type for easy integration.
- Operating temperature range from -40°C to 70°C for durability in various environments.
- Compact dimensions measuring approximately Height 12.3 mm, Width 28.5 mm, Depth 10.1 mm.
- Constructed with silver alloy contact material for superior conductivity and longevity.
- Coil resistance of 112 ohms and coil power consumption of 250 milliwatts.
Product Description
TE Connectivity RY611005 is a high-quality PCB power relay designed for industrial and automation applications. It features a 5V DC coil voltage and can handle a switching current of 8A, providing reliable single pole double throw (SPDT) switching for diverse circuit requirements.
This power relay is built to withstand harsh operating conditions with an operating temperature range from -40°C to 70°C, making it suitable for industrial, manufacturing, and automation environments.
The relay’s compact dimensions of 12.3 mm height, 28.5 mm width, and 10.1 mm depth offer space-efficient installation on PCB boards with solder terminal connections. Its silver alloy contact material ensures excellent electrical conductivity and durability over extended use.
RY611005 series includes a coil resistance of 112 ohms and coil power consumption of 250 milliwatts, optimizing energy efficiency. Compliance with international standards such as VDE, RoHS, and IEC 60335-1 further guarantees high product quality and safety in electrical installations.
This relay is ideal for various industrial and commercial applications including automation systems, signal conditioning, power supply switching, and other electrical control systems requiring reliable and precise switching performance.
Equipped with 5V DC coil for low power consumption. Capable of handling 8A switching current ensuring robust performance. SPDT contact configuration enabling versatile electrical routing. PCB mounting with solder terminals allows easy assembly in circuit boards.
Wide operating temperature range from -40°C to +70°C for diverse environments. Compact size allows efficient use of PCB space. Silver alloy contacts for enhanced conductivity and wear resistance. Certifications include VDE, RoHS, and IEC 60335-1 for assured compliance.
Explore a wide range of Power Relays and components in the Electronics & Electricals category at EnvMart for your industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 5V DC, which allows for efficient power usage.
It can handle a maximum switching current of 8A, making it suitable for various applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration, providing flexibility in circuit design.
The dimensions of this relay are approximately 12.3 mm in height, 28.5 mm in width, and 10.1 mm in depth.
The operating temperature range is from -40°C to +70°C, allowing it to function in diverse environments.
This model is designed for PCB mounting and features solder terminal connections for easy integration.
The contacts are made of silver alloy, which enhances conductivity and durability.
The coil resistance of this relay is 112 ohms, which contributes to its energy efficiency.
It complies with several international standards including VDE, RoHS, and IEC 60335-1, ensuring quality and safety.
The coil power consumption is 250 milliwatts, optimizing energy usage during operation.
This relay is suitable for various industrial and commercial applications including automation systems and power supply switching.
The maximum AC voltage that this relay can switch is 400V AC, making it versatile for different electrical systems.
