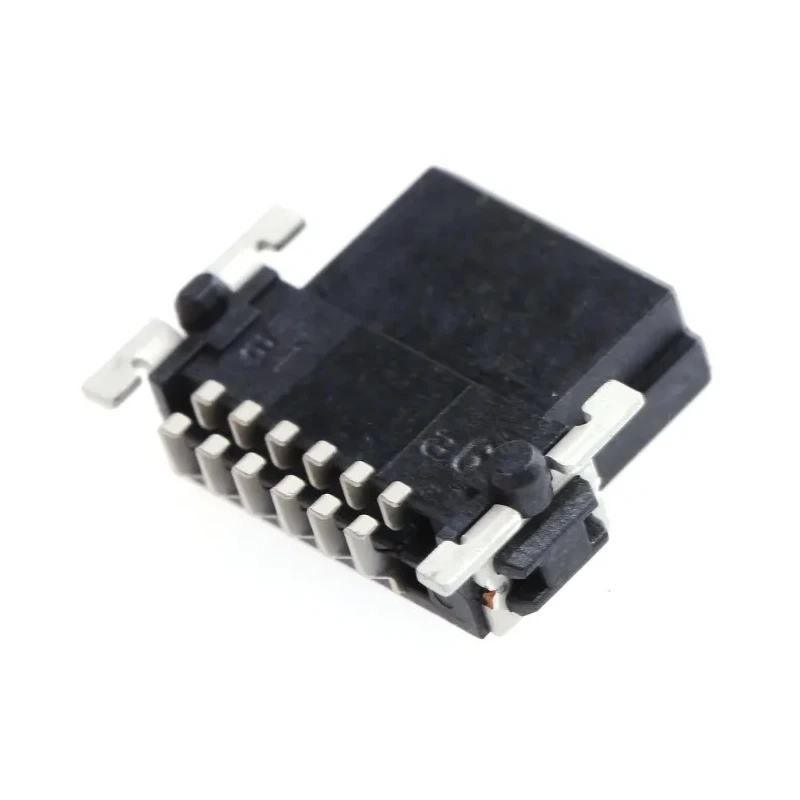

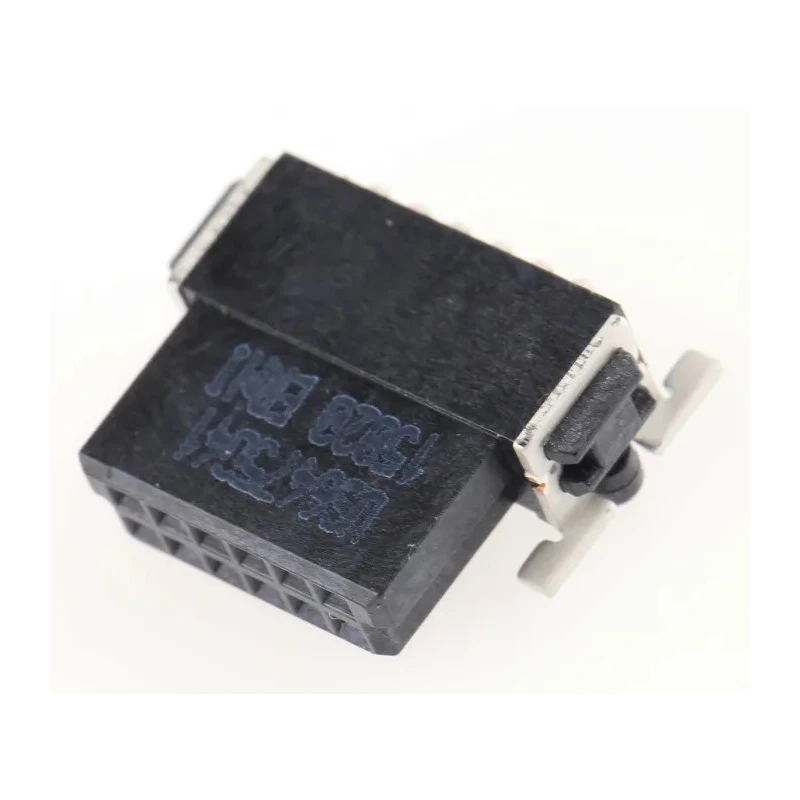

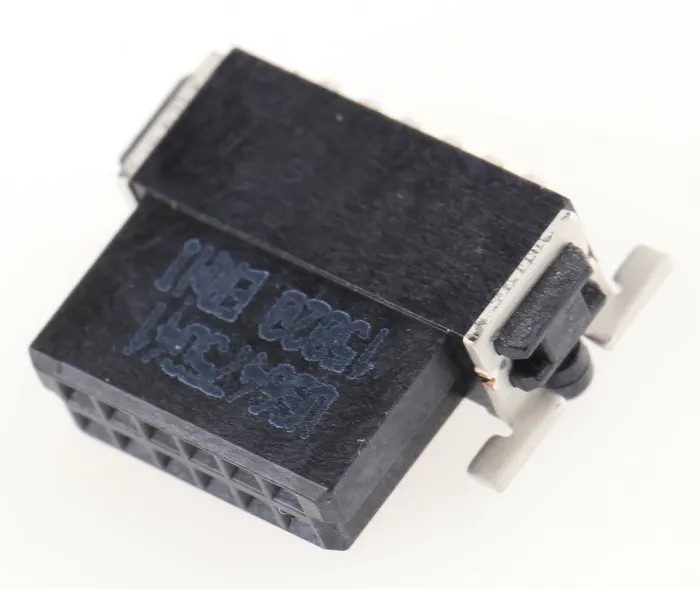

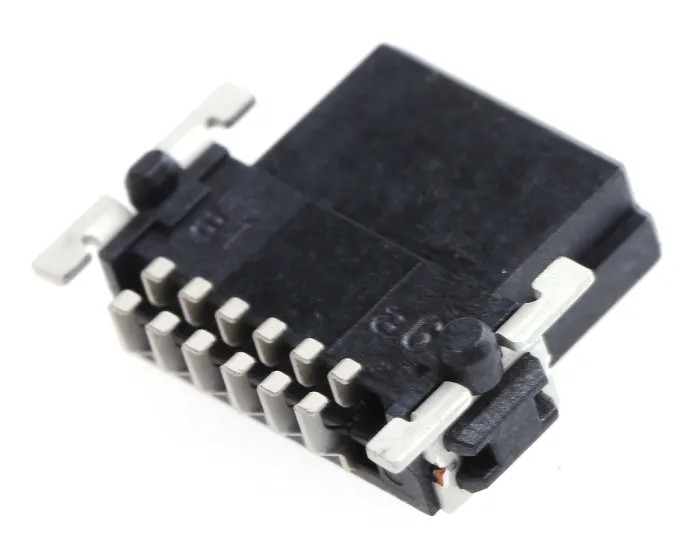

ERNI SMC Series Right Angle Surface PCB Socket, 12-Contact, 2 Row, 1.27 mm Pitch, Solder Termination 154740 / 154740-E
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ERNI |
| Orientation | Right Angle |
| Current | 1.7A |
| Model | 154740 / 154740-E |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SMC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 9.37mm |
| Row Pitch | 1.5mm |
Key Features
- The socket features a compact high-density design suitable for space-saving PCB layouts.
- Dual beam copper alloy contacts with gold plating ensure excellent electrical performance.
- Designed for surface mounting with solder termination providing robust mechanical and electrical connection.
- Operating temperature range extends from -55°C to 125°C for diverse environmental applications.
- Includes locating pegs and soldering brackets for precise PCB placement and high retention force.
- Supports signal transmission rates up to 3 Gbit/s with a continuous impedance profile.
- Housing made of Liquid Crystal Polymer, rated UL 94 V-0 flame retardant.
- Suitable for automated board assembly in industrial, automotive, communications, and medical sectors.
Product Description
ERNI 154740 / 154740-E SMC Series Right Angle Surface PCB Socket is a 12-contact, 2-row connector designed with a 1.27 mm pitch and right angle orientation for board-to-board connections. It features a robust solder termination and high-density SMT design optimized for compact PCB layouts.
The connector’s housing is made from flame-retardant Liquid Crystal Polymer (LCP) providing durability and performance under a wide operating temperature range of -55°C to 125°C. Copper alloy contacts with gold mating area plating and tin termination plating ensure low resistance and excellent signal integrity up to 3 Gbit/s.
This PCB socket includes locating pegs for precise positioning during assembly and soldering brackets that enhance retention and resistance to mechanical shock and vibration. The dual beam contact design provides a reliable electrical connection, essential for high-speed and high-performance applications.
Specifically designed for automated board assembly, the ERNI SMC Series sockets find applications in industrial, automotive, communication, and medical devices where high reliability and compact design are critical. The connector system is board-to-board with a stacking height of 9.37 mm and a row pitch of 1.5 mm.
The socket’s compact layout supports high contact density and space savings. Dual beam contact design lowers electrical resistance for enhanced performance. Gold plating on contacts ensures high corrosion resistance and conductivity.
Solder termination and surface mounting enable a strong mechanical connection. Wide temperature range allows usage in harsh environmental conditions. Locating pegs and soldering brackets facilitate accurate and secure PCB placement.
High-speed signal transmission supports modern high-frequency data applications. Suitable for use in multiple sectors including industrial automation, automotive electronics, and medical devices. Explore more from ERNI and connect with premium quality PCB Sockets and connectors curated for demanding applications on EnvMart.
