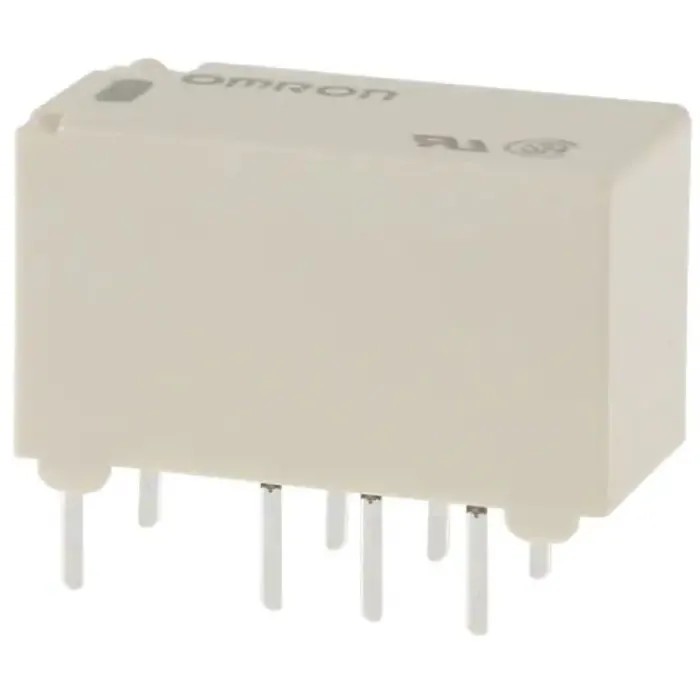

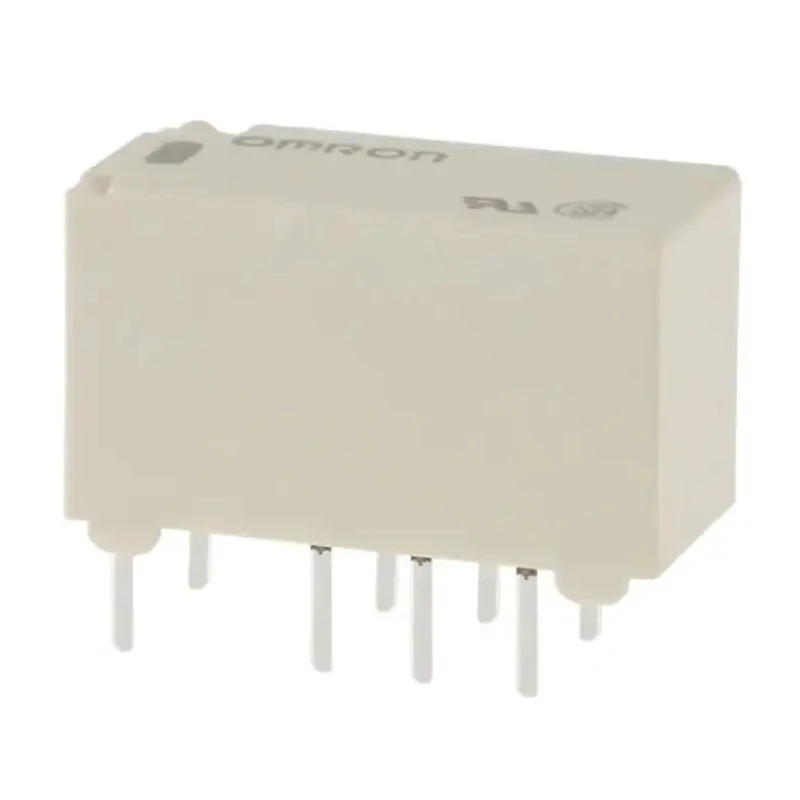

Omron Signal Relay Surface Mount DPDT Contact Configuration 5V DC Coil 2A Switching Current G6S-2F-Y DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2F-Y DC5 |
| Width | 7.3mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- This relay supports surface mounting with a compact form factor for efficient integration.
- It offers a switching AC voltage up to 250V and DC voltage up to 220V.
- The coil power consumption is low at 200mW with coil resistance of 125 ohms.
- It has a robust operating temperature range from -40°C to 85°C ensuring reliable performance.
- Contact material made of silver alloy provides excellent electrical conductivity and durability.
- The relay contacts resistances are low at 75 milliohms, ensuring efficient signal transmission.
- Fully sealed construction enhances reliability against environmental factors.
- Suitable for telecommunications, measurement, office automation, security, and industrial equipment applications.
Product Description
Omron G6S-2F-Y DC5 is a high-quality signal relay designed for surface mounting and featuring a DPDT (Double Pole Double Throw) contact configuration with a coil voltage of 5V DC and switching current rated at 2A.
This relay operates efficiently with low coil power consumption of 200mW and coil resistance of 125 ohms, ensuring minimal power draw. Its switching capabilities include an AC voltage up to 250V and DC voltage up to 220V, making it versatile for various electrical loads.
The physical dimensions of the relay are compact, measuring 14.8mm in length, 7.3mm in width, and 9.2mm in height, facilitating easy integration into compact electronic assemblies.
Constructed with a silver alloy contact material and fully sealed housing, the relay offers high reliability and excellent conductivity with a contact resistance of just 75 milliohms. It is engineered for robust performance across a broad temperature range from -40°C to 85°C, suitable for harsh environments.
These characteristics make the Omron G6S-2F-Y DC5 relay ideal for use in telecommunications equipment, measurement instruments, office automation machines, audiovisual products, security systems, building automation, industrial machinery, and amusement equipment.
The product complies with RoHS certification, ensuring it meets environmental and safety standards. Choose the Omron G6S-2F-Y DC5 for dependable switching of signal loads in professional industrial, commercial, and consumer electronics applications.
This relay supports surface mounting with a compact form factor for efficient integration. It offers a switching AC voltage up to 250V and DC voltage up to 220V. The coil power consumption is low at 200mW with coil resistance of 125 ohms.
It has a robust operating temperature range from -40°C to 85°C ensuring reliable performance. Contact material made of silver alloy provides excellent electrical conductivity and durability. The relay contacts resistances are low at 75 milliohms, ensuring efficient signal transmission.
Fully sealed construction enhances reliability against environmental factors. Suitable for telecommunications, measurement, office automation, security, and industrial equipment applications. Complies with RoHS standards for environmental safety.
Explore the Electronics & Electricals category on EnvMart for more Signal Relays and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing it to switch multiple circuits effectively.
It can switch AC voltage up to 250V and DC voltage up to 220V, making it versatile for various electrical loads.
The coil voltage is 5V DC, with a low power consumption of 200mW, ensuring minimal energy use during operation.
This model measures 14.8mm in length, 7.3mm in width, and 9.2mm in height, making it compact for easy integration.
The contact resistance is low at 75 milliohms, which helps ensure efficient signal transmission.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
The contacts are made from silver alloy, providing excellent electrical conductivity and durability.
This model supports surface mounting, facilitating efficient integration into electronic assemblies.
It complies with RoHS standards, ensuring it meets environmental and safety requirements.
It is suitable for telecommunications, measurement instruments, office automation, security systems, and industrial machinery applications.
The coil resistance is 125 ohms, which is essential for determining the current draw during operation.
This relay is part of the HFD4 series, indicating its specific design and performance characteristics.
