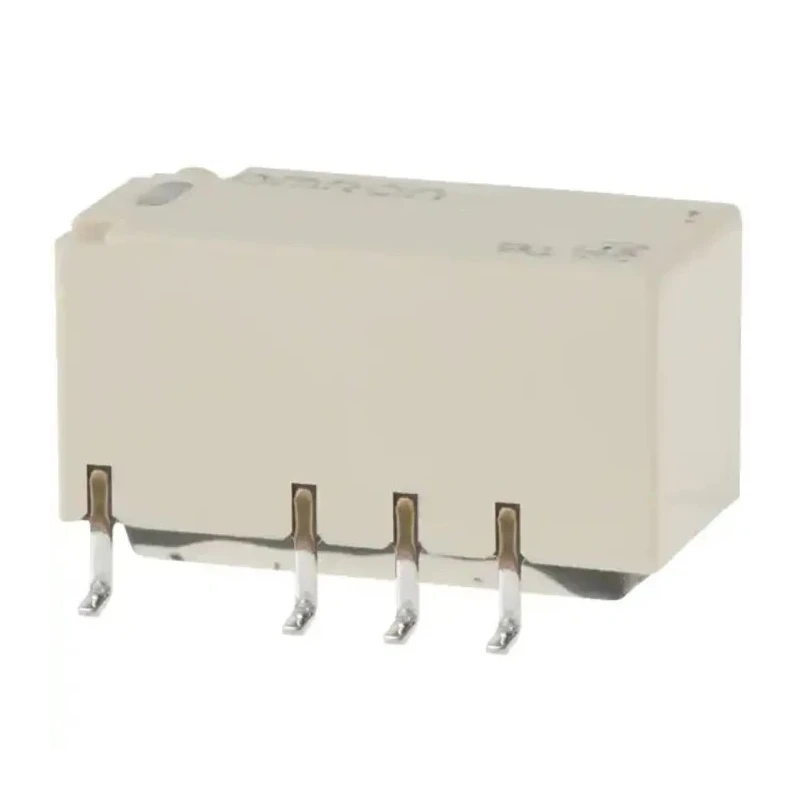

Omron Signal Relay Surface Mount DPDT 12V DC Coil, 2A Switching Current G6S-2F-Y-TR DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14mm |
| Model | G6S-2F-Y-TR DC12 |
| Width | 7.3mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD31 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- This relay supports a switching current of 2A and switching voltages of 250V AC and 220V DC.
- Compact dimensions of 14mm length, 7.3mm width, and 9.2mm height enable versatile installation.
- Coil power consumption is low at 200mW with a coil resistance of 720Ω.
- Contacts are made of silver alloy ensuring reliable conductivity and long operational life.
- Operating temperature range extends from -40°C to 85°C suitable for diverse industrial environments.
- Terminal type is surface mount providing ideal soldering and mounting reliability.
- Fully sealed construction enhances durability and protection against environmental factors.
- Suitable for applications including telecommunications, measurement devices, office automation, audio-visual equipment, security, building automation, industrial machinery, amusement, and home appliances.
Product Description
Omron G6S-2F-Y-TR DC12 Signal Relay is a surface mount relay featuring a double-pole double-throw (DPDT) contact configuration designed for switching 2A loads with coil voltage at 12V DC. The relay dimensions of 14mm in length, 7.3mm width, and 9.2mm height allow compact installation in automated and electrical equipment.
This relay operates with a coil power consumption of 200mW and a coil resistance of 720Ω, enabling energy efficient switching. Its contacts are constructed from high-quality silver alloy to assure low contact resistance of 75mΩ and reliable electrical performance. The relay supports switching at voltages up to 250V AC and 220V DC.
The operating temperature range of -40°C to 85°C makes this relay suitable for a variety of industrial, commercial, and domestic environments. Equipped with surface mount terminals, the G6S relay ensures ideal soldering and mounting reliability. The fully sealed design provides enhanced protection against dust and moisture, ensuring durability and long service life.
Common applications include use in telecommunication equipment, measurement and testing devices, office automation machinery, audio and visual products, security systems, building and industrial automation, amusement devices, and household appliances.
This relay supports a switching current of 2A and switching voltages of 250V AC and 220V DC. Compact dimensions of 14mm length, 7.3mm width, and 9.2mm height enable versatile installation. Coil power consumption is low at 200mW with a coil resistance of 720Ω.
Contacts are made of silver alloy ensuring reliable conductivity and long operational life. Operating temperature range extends from -40°C to 85°C suitable for diverse industrial environments. Terminal type is surface mount providing ideal soldering and mounting reliability.
Fully sealed construction enhances durability and protection against environmental factors.
Suitable for applications including telecommunications, measurement devices, office automation, audio-visual equipment, security, building automation, industrial machinery, amusement, and home appliances.
Explore Omron's wide range of relay products and other electrical components at EnvMart for your industrial, laboratory, manufacturing, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 2A.
The relay has dimensions of 14mm in length, 7.3mm in width, and 9.2mm in height.
The coil voltage for this relay is 12V DC.
The relay features a double-pole double-throw (DPDT) contact configuration.
It supports switching voltages of up to 250V AC and 220V DC.
This model is equipped with surface mount terminals for reliable soldering and mounting.
The operating temperature range extends from -40°C to 85°C.
The coil power consumption is low at 200mW.
The contacts are made of silver alloy, ensuring reliable conductivity.
The contact resistance is rated at 75mΩ.
The fully sealed construction enhances protection against dust and moisture, making it suitable for various environments.
It is suitable for applications including telecommunications, measurement devices, office automation, and industrial machinery.
