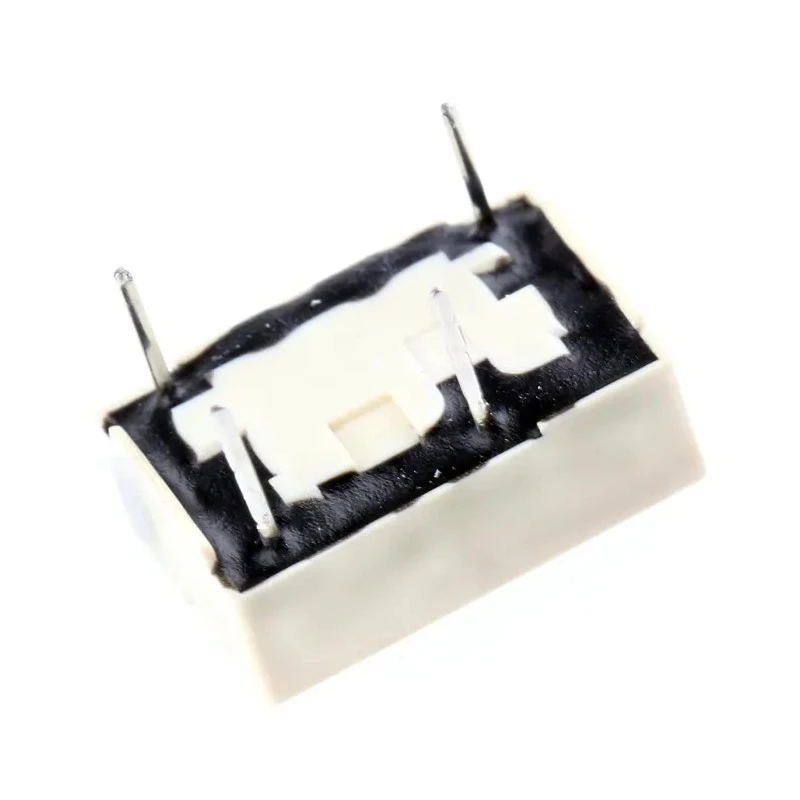

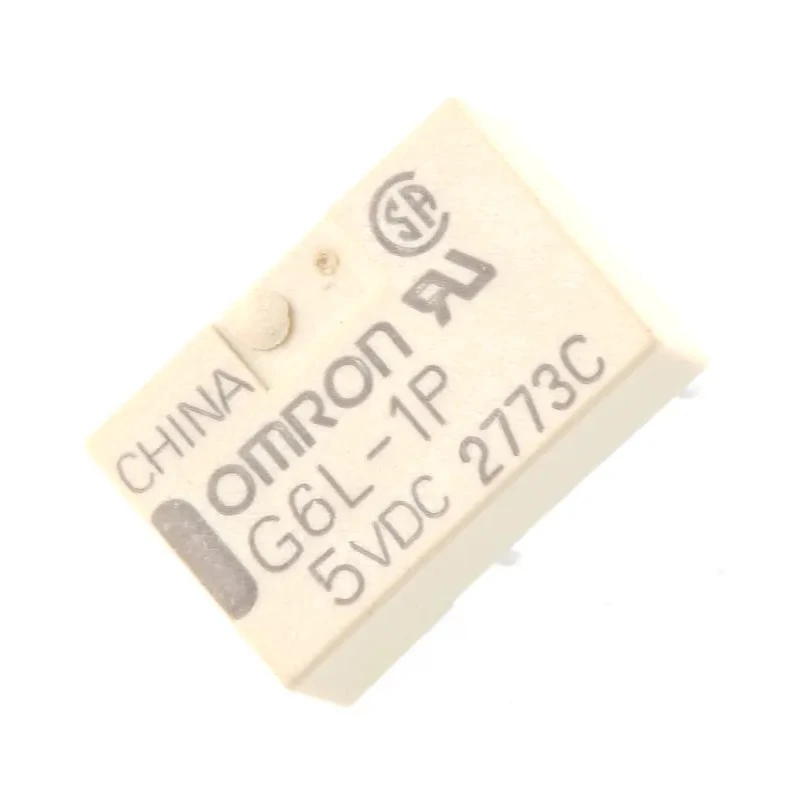

Omron Signal Relay SPST PCB Mount 5V DC Coil 1A Switching Current G6L-1P 5DC

Omron G6L-1P 5DC Signal Relay is an extremely thin single-pole single-throw (SPST) normally open relay designed for PCB mounting with a 5V DC coil voltage and a switching current of 1A. This relay offers compact dimensions of 7 mm width, 10.6 mm length, and 3.8 mm height, making it ideal for space-constrained electronic designs.

The relay features silver alloy contacts providing excellent conductivity and longevity. It operates efficiently with a coil power consumption of 180mW and coil resistance of 139 ohms. The dielectric strength between coil and contacts reaches 1000 VAC at 50/60 Hz for one minute, ensuring robust insulation and safety in operation.

With a switching AC voltage rating of 125V and DC voltage of 60V, the G6L-1P 5DC is suitable for various signal switching applications in electrical, automation, and electronics industries. The operating temperature range from -40°C to +70°C allows reliable performance across diverse environmental conditions.

This relay conforms to RoHS standards and FCC part 68, supporting eco-friendly and regulatory compliance requirements. The expected life cycle of up to 5 million operations guarantees durability and consistent performance.

Its PCB terminal configuration facilitates easy and secure PCB mounting. The product is widely used in industrial, laboratory, manufacturing, and electronic control systems for precise signal switching and conditioning tasks.

This relay features a single-pole single-throw contact configuration suitable for PCB mounting. Coil voltage is rated at 5V DC with a coil power consumption of 180mW. Supports a maximum switching current of 1A, with switching voltages of 125V AC and 60V DC.

Constructed with silver alloy contacts for reliable conductivity and durability. Dimensions are compact at 7 mm width, 10.6 mm length, and 3.8 mm height for easy integration. Operating temperature ranges from -40°C to 70°C for wide environmental applicability.

The coil resistance of this relay is specified at 139 ohms, ensuring stable operation. Designed to meet RoHS compliance and FCC part 68 standards. Dielectric strength between coil and contacts is 1000 VAC, supporting reliable insulation.

Expect an operating life cycle of up to 5 million operations. Explore more Signal Relays and electronic components to enhance your industrial, automation, and electrical projects at EnvMart.
