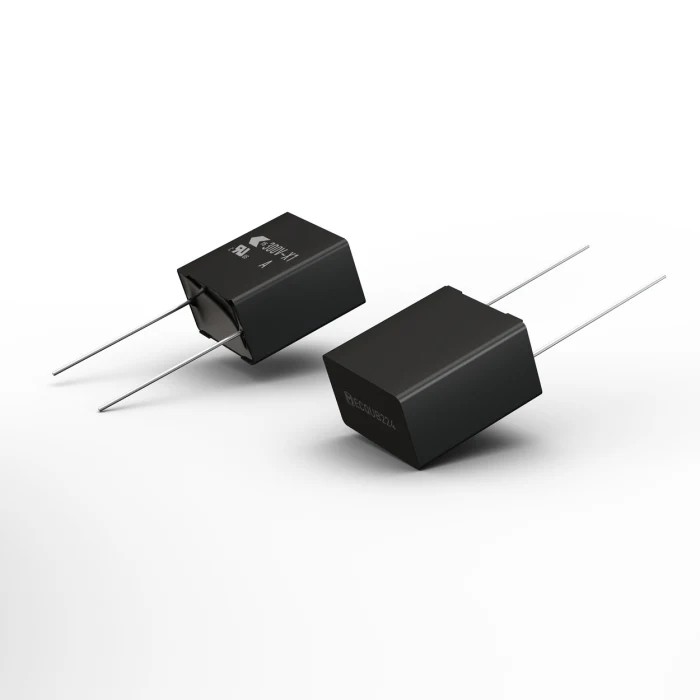

Panasonic Polypropylene Capacitor 1.8 nF 300V AC Tolerance ±20%, Through Hole Mount ECQUBAF182M

Panasonic ECQUBAF182M is a polypropylene capacitor featuring a capacitance of 1.8 nF with a tolerance of ±20%. It is rated for 300V AC operation and is constructed using metallized polypropylene film, which provides non-inductive properties and stability under electrical stress.

The capacitor is housed in a flame-retardant plastic case and non-combustible resin, fulfilling safety requirements suitable for industrial, automotive, and electronic manufacturing applications. Its operating temperature range spans from -40°C up to 110°C, allowing reliable function across demanding environments, including automotive use as certified by the AEC-Q200 standard.

This through hole mounted device has a lead pitch of 12.5mm, lead length of 20mm, and terminal type straight with a lead diameter of 0.6mm, facilitating secure PCB assembly. The physical dimensions include a height of 11.5mm, length of 15.3mm, and width of 5mm, making it compact for various electronic designs.

The capacitor meets international standards UL 60384-14, EN 60384-14, and CSA E60384-14, confirming its compliance with global safety and quality norms. It exhibits a low dissipation factor of 0.1% which improves energy efficiency and reduces losses in sensitive circuits.

Capacitance of 1.8 nF with ±20% tolerance ensures effective electronic interference suppression. Rated AC voltage at 300V suitable for high performance in electronic applications. Flame-retardant plastic case and non-combustible resin for enhanced safety.

Wide operating temperature from -40°C to 110°C accommodates industrial and automotive environments. Through hole mounting with 12.5mm lead pitch for stable circuit board connection. Metallized polypropylene film construction for non-inductive, reliable operation.

Meets AEC-Q200 automotive standard for high reliability. Certified to UL 60384-14, EN 60384-14, and CSA E60384-14 standards. Low dissipation factor of 0.1% reduces energy loss in circuits. Ideal for interference suppression in electronic equipment across industrial, automotive, and manufacturing sectors.

This Panasonic film capacitor is engineered for robust, precise performance in demanding electronics where durability and electrical stability are critical. It is well suited for use in power electronics, automotive control units, and industrial machinery, providing trusted capacitive filtering with high safety standards.
