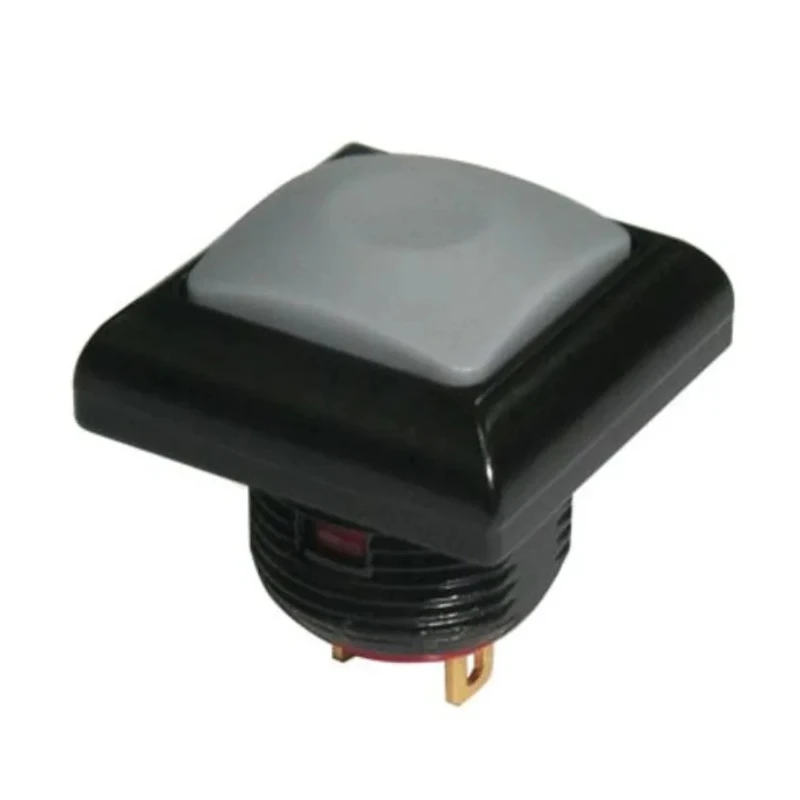

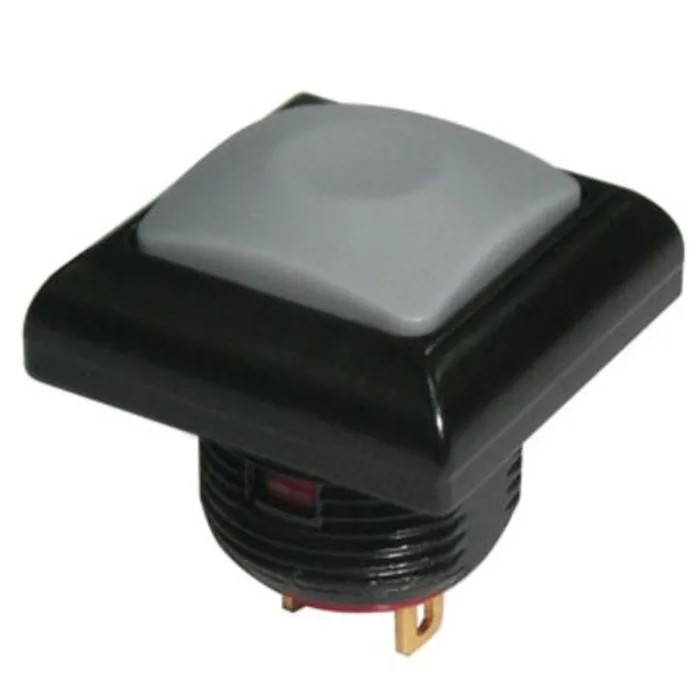

RS PRO Push Button Switch Momentary Panel Mount SPST White LED IP67 36 V dc 250 V ac 209-9083

RS PRO 209-9083 is a sub-miniature push button switch designed for momentary operation, ideal for panel mounting applications requiring a compact and reliable control switch. Featuring a 13.6 mm panel cutout, this push button switch provides single-pole single-throw (SPST) functionality with a momentary off-(momentary) push operation.

The switch actuator is made from high-quality polyamide 6/6 material with a flat square cap in white, providing a sleek appearance suitable for control panels in industrial and commercial environments. It includes a white LED to indicate switch status, enhancing visibility during operation.

The RS PRO switch offers IP67 ingress protection, ensuring it is dust-tight and protected against immersion in water, making it suitable for harsh or wet environments such as industrial machinery and automation systems.

Electrical ratings include contact voltage capability of 36 V dc and 250 V ac, with a contact current of 125mA, appropriate for low current control circuits. It supports mechanical operations up to one million cycles, ensuring long-term durability in demanding applications.

The solder lug terminal type facilitates secure electrical connections, and the switch is designed to withstand soldering temperatures up to 350°C for short durations. It operates reliably in extended temperature ranges from -35°C to 85°C, making it suitable for a variety of industrial and laboratory conditions.

Typical applications include use in test equipment, telecommunications, networking devices, and handheld appliances where sub-miniature push button switches are required with reliability and IP67 protection.

This RS PRO push button switch meets industry standards and approvals, providing a trusted option for engineers and technicians requiring high quality and performance in control switch components.

Explore the full range of push button switches in this category for additional options suitable for various industrial and commercial applications. Designed for panel mounting with a 13.6 mm cutout size. Momentary single-pole single-throw (SPST) switch operation.

Durable polyamide 6/6 material with a flat square cap actuator. Waterproof and dustproof according to IP67 standard. Operates at 36 V dc and 250 V ac with a contact current rating of 125mA. Equipped with a white LED indicator for status display.
