Eaton 3-Pole Panel Mount Isolator Switch IP65 250A 90 kW P5-250

Free Delivery in India | Lowest Global Shipping Charges

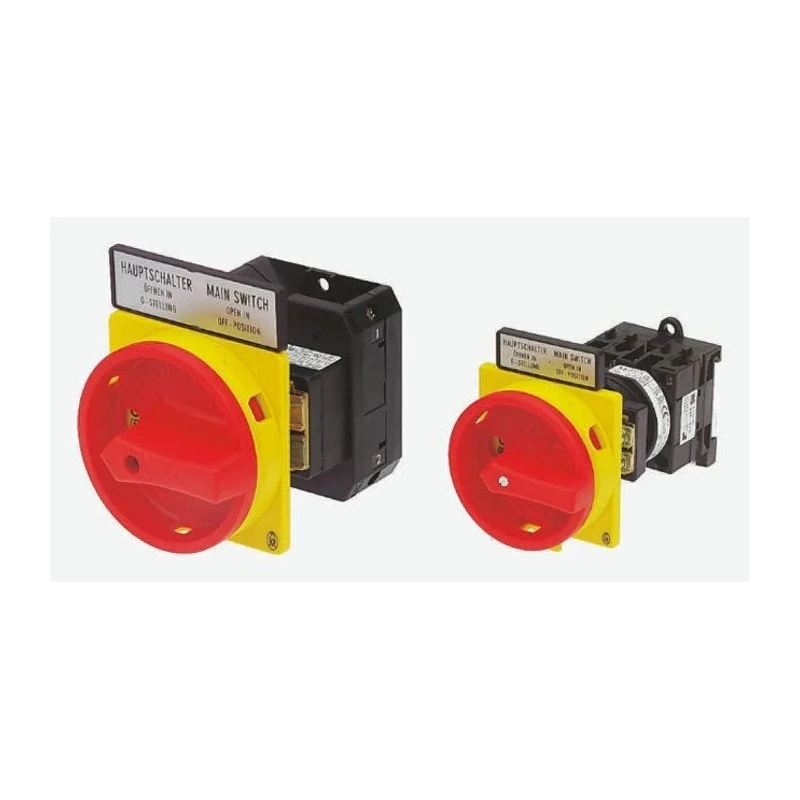

Eaton 3-Pole Panel Mount Isolator Switch IP65 250A 90 kW P5-250

Name: Eaton 3-Pole Panel Mount Isolator Switch IP65 250A 90 kW P5-250
Brand: Eaton
SKU: 342848
Price: 51974.21 INR
Availability: InStock



Category Isolator Switch Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Length	88mm
Model	IP65
Depth	98mm
IP Rating	IP65
Width	88mm
Mount Type	Panel Mount
Series	P5-250
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Switching Current	250A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Red
Hazardous Area Certification	ATEX
Number of Poles	3
Standards/Approvals	VDE, UL, IEC, EN, CSA, ATEX
Switching DC Voltage	42V dc
Switching AC Voltage	400V ac
Switching Power	90kW

Key Features

Compact and durable design suitable for harsh environments.
Clear position indication with padlock compatibility in OFF position.
Red handle with auxiliary contacts available for added functionality.
Rear mounted for easy fitting on DIN rail or base plate.
Rated for 3-phase electrical circuits with AC voltage up to 400V and DC voltage up to 42V.
Operating temperature range from -25°C to 50°C with hazardous area ATEX certification.
Complies with multiple international standards including VDE, UL, IEC, EN, CSA, and ATEX.

Product Description

Eaton 280942 P5-250/V/SVB 3-Pole Panel Mount Isolator Switch IP65 250A 90 kW P5-250 series is engineered for safe switching, isolation, and control in demanding industrial and engineering applications. Its IP65 ingress protection rating ensures reliable operation in harsh environments that require dust-tight sealing and protection against water jets.

This panel mount switch disconnector features a robust red handle with clear ON/OFF position indication, allowing operators to isolate electrical equipment safely before maintenance or repair. The device supports high switching power of up to 90 kW at 250A switching current, suitable for three-phase circuits with AC voltage up to 400V and switching DC voltage up to 42V.

Designed for rear mounting, the isolator switch can be easily installed on DIN rails or base plates, making it versatile for various cabinet or enclosure depths up to 400mm with optional extension shafts. The compact dimensions (88mm width, 88mm length, 98mm depth) and padlock compatibility for up to three 8mm padlocks enhance safety and compliance with electricity regulations.

The product complies with international certifications and approvals including VDE, UL, IEC, EN, CSA, and ATEX, with hazardous area certification for use in explosive environments. It operates reliably across a broad temperature range from -25°C to 50°C, ensuring durability and consistent performance.

Typical industrial applications include machine control panels, isolation of circuit breakers, transformers and transmission lines, switchgear, distribution panels, and consumer units. Eaton's P5-250 series offers reliable manual switch disconnectors to isolate power safely, reduce electrical hazards, and support maintenance workflows.

Compact and durable design. Clear position indication with padlock feature. Red handle and auxiliary contact availability. Rear mounting on DIN rail or base plate. Suitable for harsh environment use due to IP65 rating. Supports 3-pole, 3-phase switching at 250A and 90 kW power.

Compliant with multiple international safety and quality standards. Designed for industrial control panels and electrical applications. Explore Eaton Isolator Switches category on EnvMart for reliable electrical safety solutions in industrial automation and electrical distribution.
