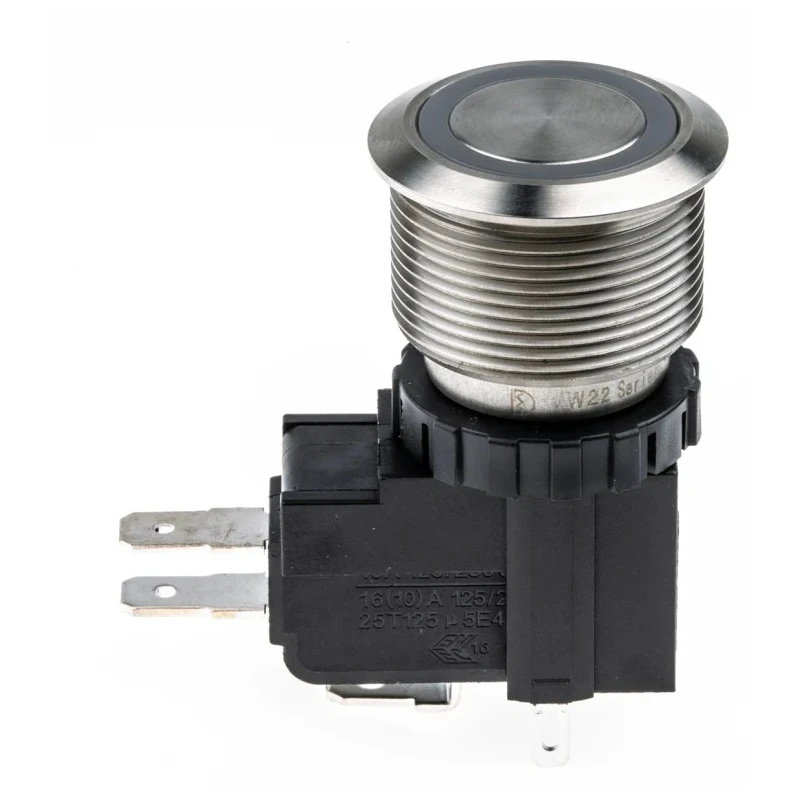

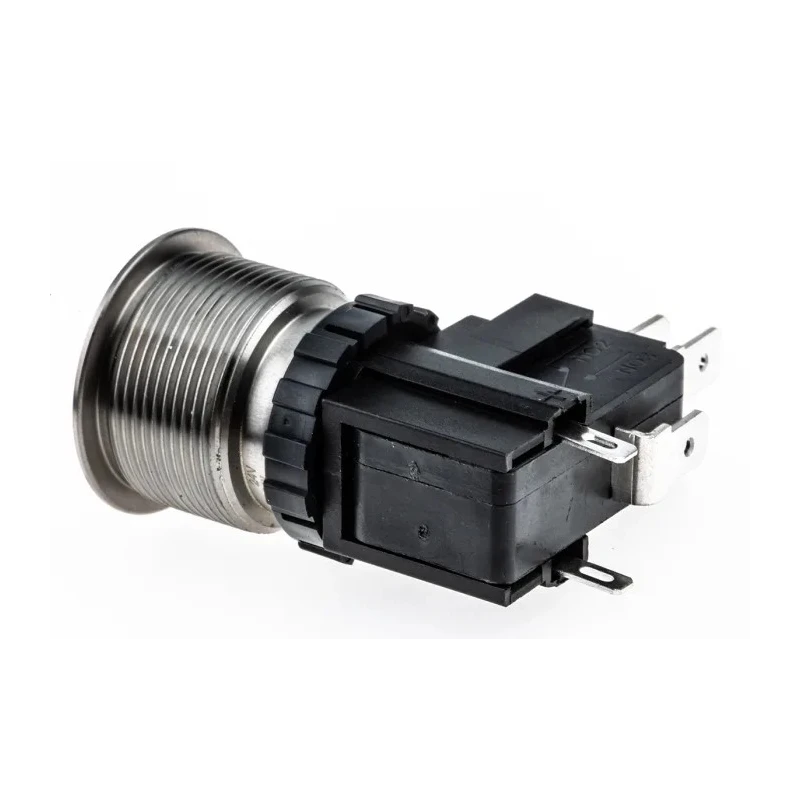

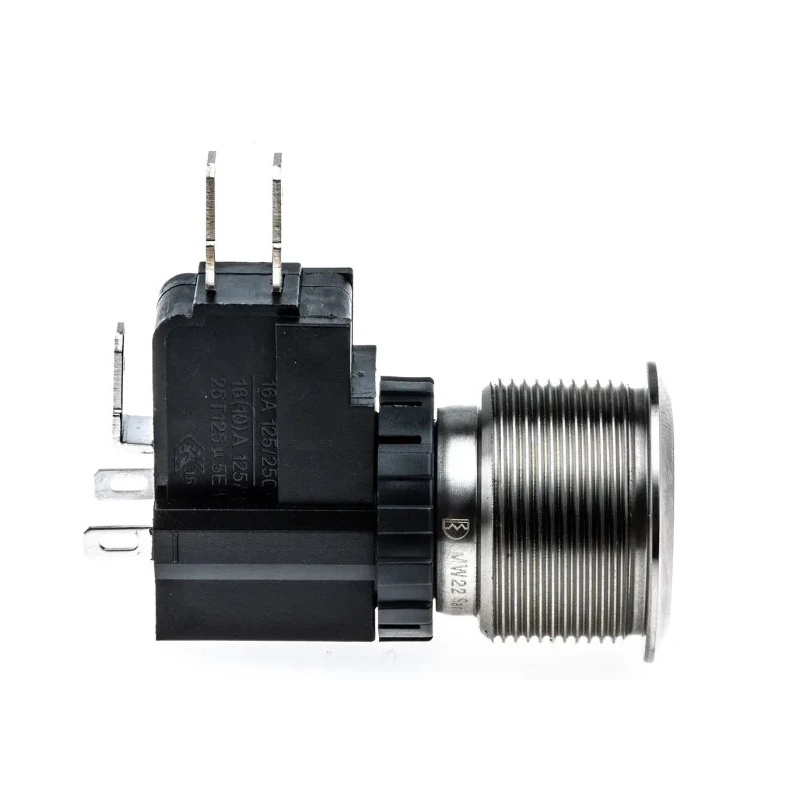

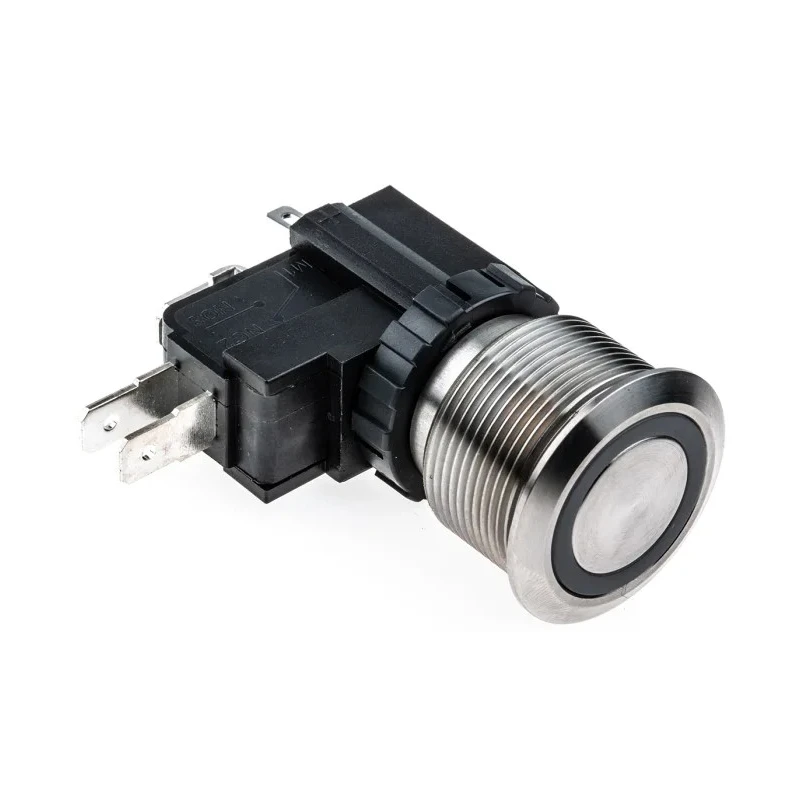

RS PRO Illuminated Push Button Switch Latching Panel Mount SPDT White LED IP67 250 V ac 175-8196

Name: RS PRO Illuminated Push Button Switch Latching Panel Mount SPDT White LED IP67 250 V ac 175-8196
Brand: RS PRO
SKU: 241252
Price: 3282.21 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	175-8196
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22.2 mm
Terminal type	Quick Connect
Standards/Approvals	cULus Recognized, EC15, EN15, UL 94 V-0, UL 94 V-2
LED Colour	White
Switch Operation	Latching
Actuator Style	Flat
Switch Contact Current	16, 26A
Contact AC Voltage	250V ac

Key Features

The switch features a white LED and is rated IP67 for dust and water resistance.
Operating voltage and power rating support 250 V ac at 16 to 26 A contact current.
The flat actuator style and panel mount type facilitate effective installation.
Wide operating temperature range from -25°C to 85°C for harsh environments.
Compliant with multiple standards including cULus, EC15, EN15 and UL 94 V-0 / V-2.
Micro-switch and bushing replaceable parts enhance maintainability.
Suitable for industrial, medical, security, vehicle, audio-visual, and energy storage applications.

Product Description

RS PRO 175-8196 Illuminated Push Button Switch is a high-quality latching panel mount switch with a 22.2 mm cutout designed for robust industrial use. It features an SPDT (Single Pole Double Throw) contact configuration and a white LED indicator, providing clear operational status. The IP67 rating ensures the component is dust-tight and protected against water immersion, making it reliable in demanding environments.

This switch operates at 250 V ac with a contact current capacity ranging from 16 to 26 amperes. Its flat actuator style enables seamless integration into control panels, while quick connect terminals allow for swift and secure electrical connections. The device operates effectively within a wide temperature range of -25°C to 85°C, ensuring performance under varied climatic conditions.

The switch complies with respected international standards including cULus Recognized, EC15, EN15, and UL 94 V-0 and V-2 fire safety classifications. An innovative design feature includes replaceable micro-switch and bushing components, simplifying maintenance and reducing downtime.

Typical industrial applications include control instrumentation, medical devices, security monitoring systems, vehicle peripheral controls, audio-visual equipment, and energy storage units. This versatility makes the RS PRO 175-8196 an integral part of advanced electronics and electrical systems.

The switch features a white LED and is rated IP67 for dust and water resistance. Operating voltage and power rating support 250 V ac at 16 to 26 A contact current. The flat actuator style and panel mount type facilitate effective installation.

Wide operating temperature range from -25°C to 85°C for harsh environments. Compliant with multiple standards including cULus, EC15, EN15 and UL 94 V-0 / V-2. Micro-switch and bushing replaceable parts enhance maintainability.

Suitable for industrial, medical, security, vehicle, audio-visual, and energy storage applications.

Enhance your industrial electrical systems with the RS PRO 175-8196 Illuminated Push Button Switch, designed for durability, safety, and ease of maintenance. For more high-quality switches and components, explore our extensive product catalog at EnvMart.
