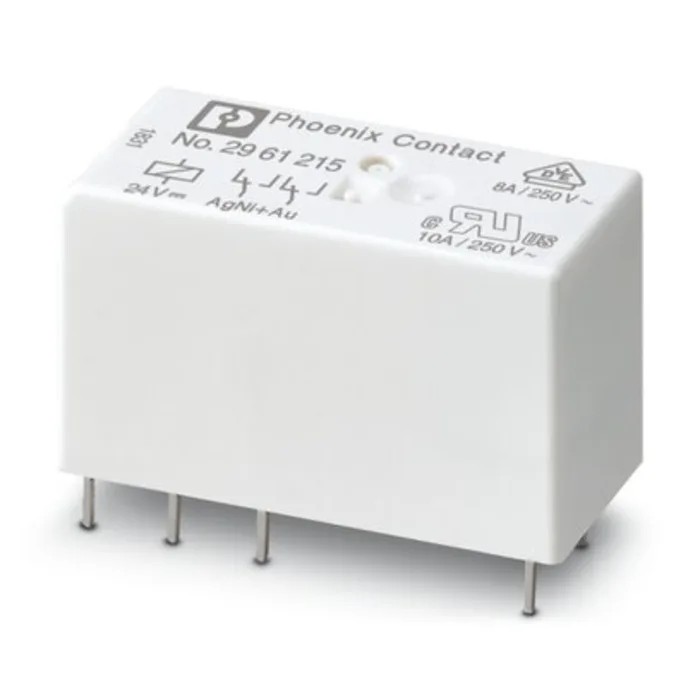

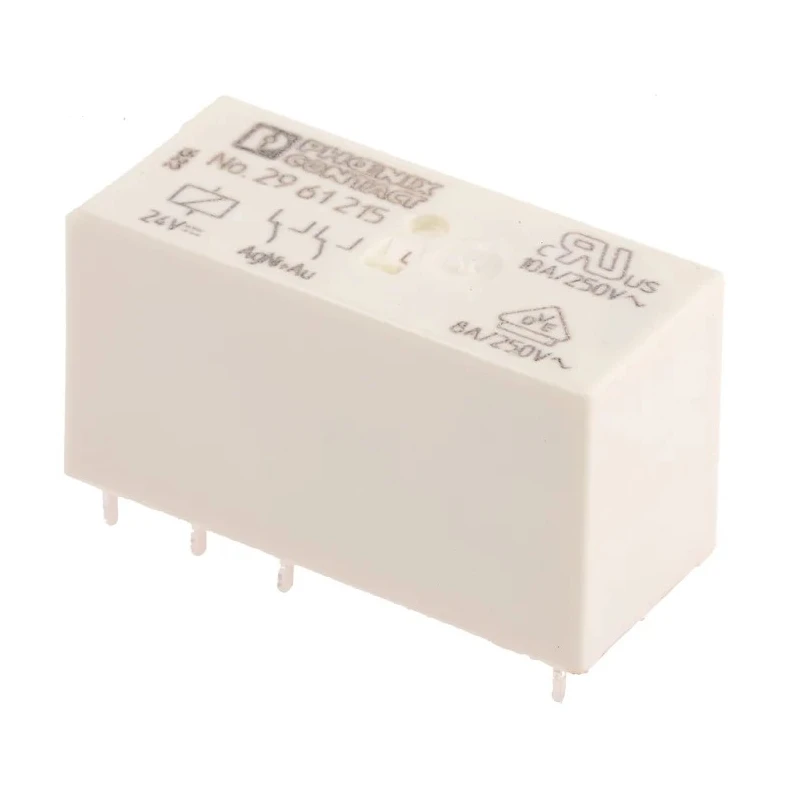

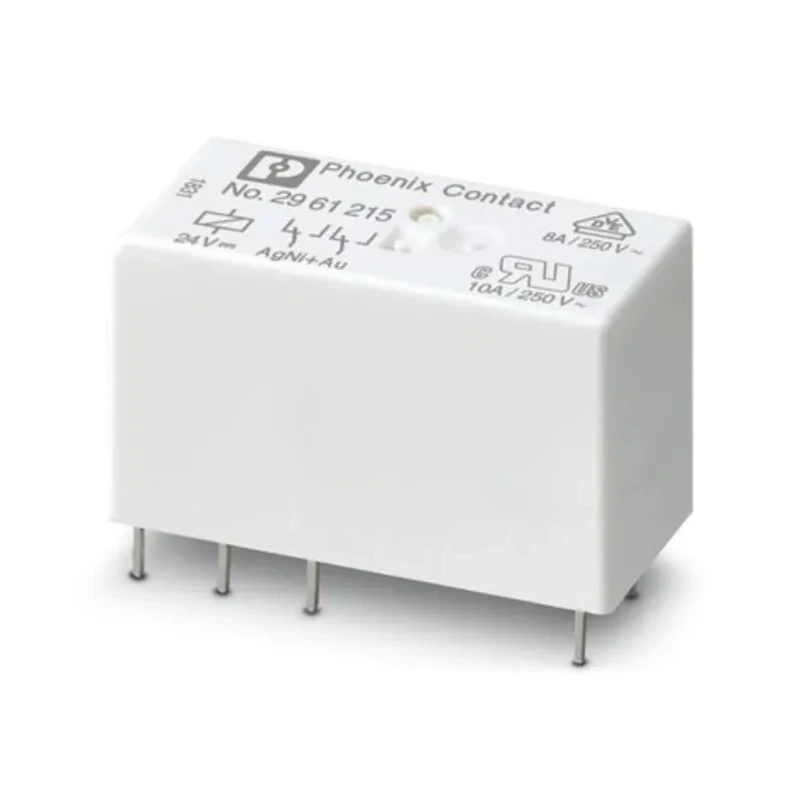

Phoenix Contact PCB Power Relay 24V DC Coil 10A Double Pole Double Throw DPDT REL-MR-24DC/21-21AU 2961215

Phoenix Contact 2961215 PCB Power Relay is a compact, non-latching relay designed for industrial-grade applications requiring reliable switching of two independent signals. Featuring a 24V DC coil and DPDT (Double Pole Double Throw) contact configuration, this relay is perfect for printed circuit board mounting due to its modest dimensions: 15.7mm width, 29mm height, and 12.7mm length.

The relay is equipped with robust gold-plated contacts to resist corrosion and maintain excellent conductivity, ensuring signal integrity over extended periods. Its coil resistance of 1.4kΩ and coil power rating of 2kW contribute to stable and efficient electromagnetic operation.

Designed to function reliably within extreme conditions, the relay operates within a wide temperature range from -40°C to 85°C. The DPDT contact configuration allows for switching of two independent electric circuits simultaneously, suitable for complex electrical control systems.

With a switching current rating of 10A and switching voltage of 36V AC/DC, it is well-suited for industrial automation, control panels, and electronic devices. The through-hole solder termination ensures solid mechanical and electrical bond to the PCB, enhancing durability during operation.

Its mechanical service life extends up to 30 million cycles, evidence of its robust construction ideal for long-term usage in industrial environments such as manufacturing, automation, and signal conditioning.

DPDT configuration enables simultaneous switching of two independent circuits. Gold-plated contacts enhance corrosion resistance and signal quality. Compact PCB mount form factor with through-hole solder terminals. Wide operating temperature range from -40°C to 85°C for harsh environments.

High mechanical lifecycle of 30 million operations ensures durability. Coil voltage of 24V DC with coil resistance of 1.4kΩ and power rating of 2kW. Switching current rated up to 10A at 36V AC/DC. Non-latching relay suitable for push-button and micro-controller interface applications.

Compliance with industry standards including VDE, UL, RoHS, IEC, and EN.

This Phoenix Contact power relay series (REL-MR) is widely used across industrial automation, electrical control, and signal conditioning applications due to its reliability and compact design. Its versatility in AC and DC coil voltages allows compatibility with a broad range of power supplies.

For detailed technical information including datasheets and certificates, consult Phoenix Contact documentation. This product is made in Austria and guarantees the highest standard quality expected in industrial electrical components.
