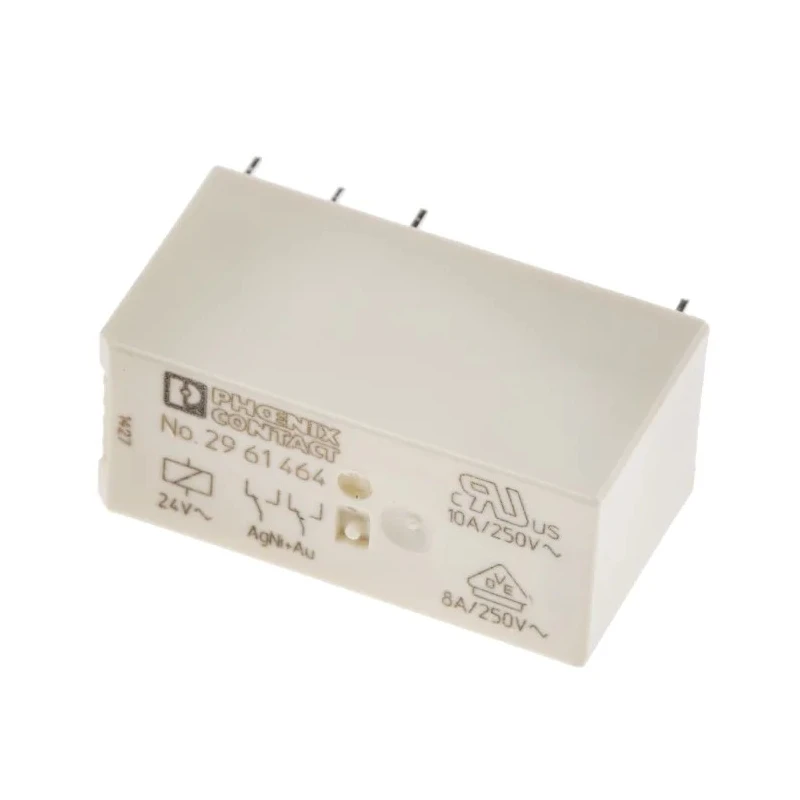

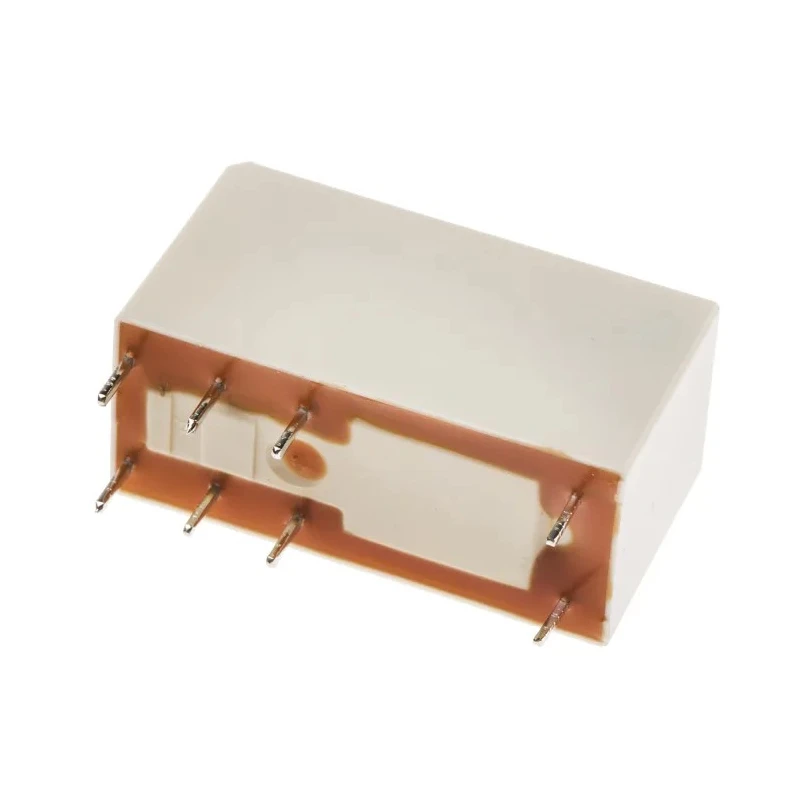

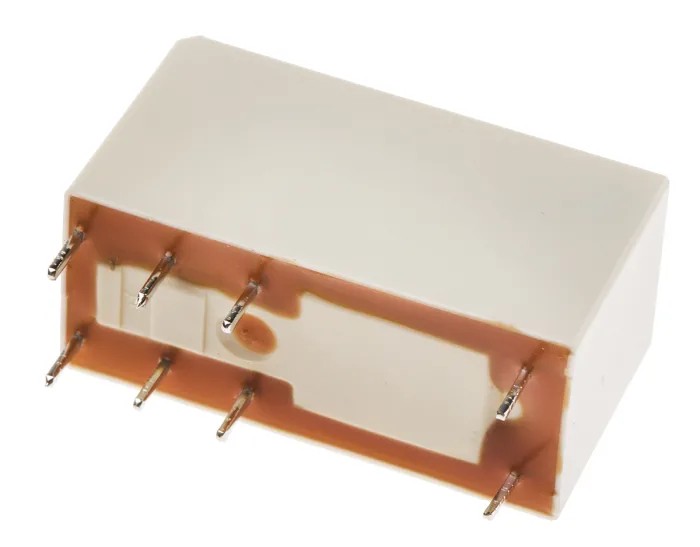

Phoenix Contact PCB Power Relay 24V AC Coil, 10A Switching Current, DPDT Contact Configuration 2961464
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Phoenix Contact |
| Height | 29mm |
| Length | 12.7mm |
| Model | 2961464 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | REL-MR- 24AC/21-21AU |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | EN, IEC, RoHS, UL, VDE |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 36V dc |
| Switching AC Voltage | 36V ac |
| Coil Power | 2kW |
Key Features
- This PCB power relay features a coil voltage rating of 24 volts AC.
- It supports a switching current capacity of 10 amperes.
- The contact configuration is double pole double throw (DPDT) for versatile circuit control.
- Designed for mounting on PCB with solder terminal type ensuring compact installation.
- Coil resistance measures 350 ohms with coil power rating of 2 kW.
- Gold plated contact material ensures high reliability and durability in switching.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Compact physical dimensions with height 29 mm, length 12.7 mm, and width 15.7 mm.
Product Description
Phoenix Contact 2961464 PCB Power Relay with a 24V AC coil and a 10A switching current is a high-quality DPDT non-latching relay designed for demanding industrial applications. This relay provides reliable switching performance in control circuits, automation, and signal conditioning, making it ideal for use in manufacturing, HVAC, and electrical installations.
The relay coil operates at 24 volts AC, drawing a coil resistance of 350 ohms and a power load of 2 kW, making it suitable for efficient electromagnetic actuation. The gold-plated contacts ensure excellent conductivity and long service life. The relay's contact arrangement is double pole double throw (DPDT), which supports switching AC and DC voltages up to 36 volts.
Mounting is intended directly on printed circuit boards (PCB) using solder terminals, facilitating easy integration and a compact form factor. The relay has a robust operating temperature range from -40°C to 85°C, suitable for harsh industrial environments.
The compact relay measures 29 mm in height, 12.7 mm in length, and 15.7 mm in width, making it an excellent choice for space-constrained applications. It adheres to internationally recognized standards including EN, IEC, RoHS, UL, and VDE, ensuring compliance and safety in operation.
Being a non-latching relay, it automatically returns to its default position when the coil power is removed, which is ideal for push-button interfaces and microcontroller-driven inputs. This relay is part of the REL-MR series from Phoenix Contact, known for durability and robust electrical performance.
This DPDT relay provides reliable electrical switching and isolation. Gold plating on contacts increases durability and reduces wear. Compact design allows for integration into tight spaces on PCBs. Suitable for a wide temperature range from -40°C to 85°C.
Meets industry standards ensuring safe and compliant operation.
Ideal for industrial control, automation, electronics, and instrumentation applications. Find more products from Phoenix Contact and a wide range of relays on EnvMart for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 24 volts AC.
It supports a maximum switching current capacity of 10 amperes.
The contact configuration is double pole double throw (DPDT), allowing versatile circuit control.
This model measures 29 mm in height, 12.7 mm in length, and 15.7 mm in width.
The coil resistance measures 350 ohms.
It operates within a temperature range of -40°C to 85°C.
It is designed for mounting on printed circuit boards (PCB) using solder terminals.
It adheres to standards including EN, IEC, RoHS, UL, and VDE.
The coil power rating is 2 kW.
The relay can switch AC and DC voltages up to 36 volts.
The contacts are made from gold-plated material, which enhances conductivity and durability.
This relay is a non-latching type, returning to its default position when coil power is removed.
