TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, Solder Termination HV100

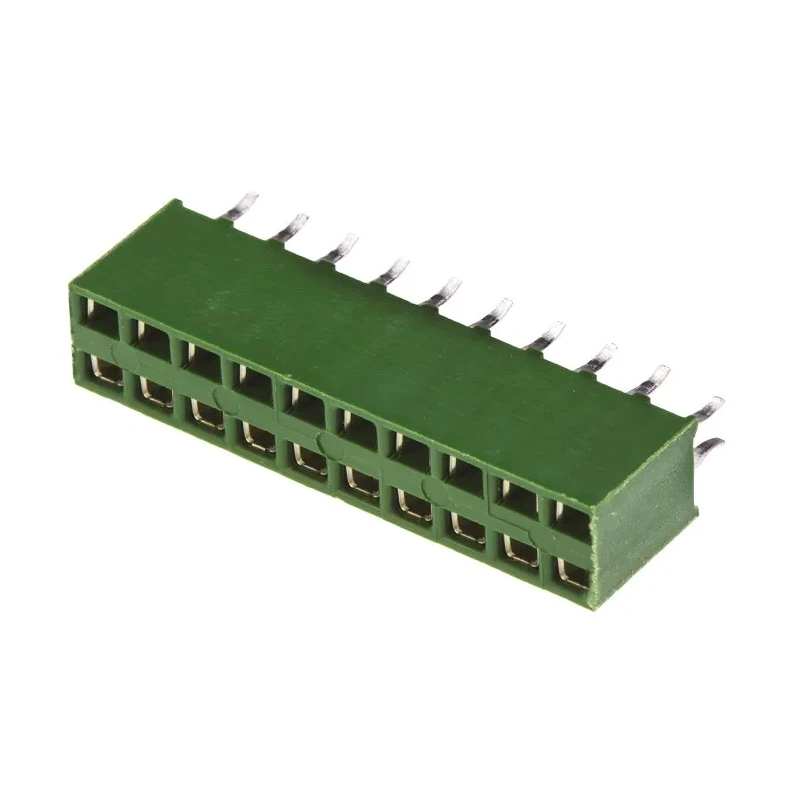

TE Connectivity HV100 series Straight Through Hole PCB Socket model HV100 is a high-quality connector designed specifically for board-to-board applications where secure, reliable electrical connections are essential. Featuring 20 female contacts arranged in 2 rows with a 2.54 mm pitch, this socket supports a current capacity of 12A and operates efficiently within a temperature range of -65°C to 105°C. The socket is engineered for through hole mounting with solder termination, providing stable mechanical and electrical attachment to printed circuit boards.

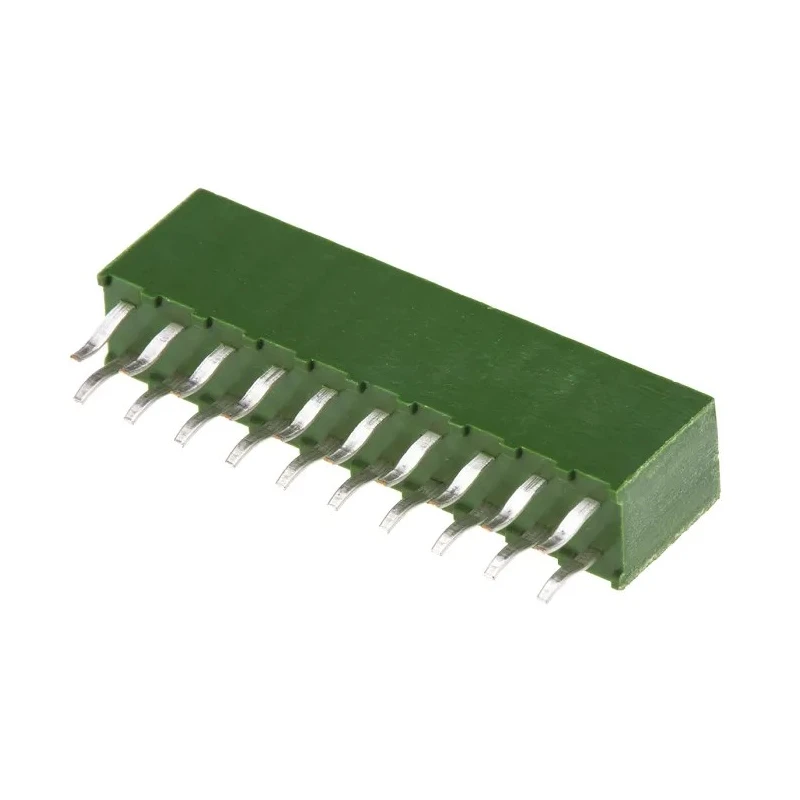

The socket housing is manufactured from polybutylene terephthalate (PBT), a UL 94V-0 flame retardant thermoplastic, which enhances safety and durability in various environments. Additionally, the housing incorporates board stand-offs that provide robust physical stability when mounted on PCBs. The solder legs are kinked to enhance retention on the PCB, minimizing the risk of dislocation during assembly or operation. The bronze female contacts are plated with tin to ensure excellent conductivity and resistance against corrosion in demanding industrial or electronic conditions.

This PCB socket series supports different mounting heights for stacking applications, offering design flexibility in complex electronic assemblies. The product complies with RoHS environmental standards, underscoring TE Connectivity's commitment to environmentally responsible manufacturing. Originating from Germany, this product assures high manufacturing standards and reliability.

Kinked solder legs for secure retention to PCB. UL 94V-0 flame retardant polybutylene terephthalate housing. Board stand-offs ensure mechanical stability. 20 female contacts arranged in 2 rows with 2.54 mm pitch. Solder termination for through hole mounting.

12A current rating for reliable power applications. Operational temperature range from -65°C to 105°C. Bronze contacts with tin plating for enhanced conductivity. RoHS compliant for environmental safety. Manufactured in Germany for quality assurance.

This PCB socket is ideally suited for electronics manufacturing, industrial, telecommunications, and other commercial applications requiring rugged, reliable board-to-board connections. For additional design support, TE Connectivity provides access to 3D models, schematics, and footprints for precise PCB design integration via DesignSpark software.
