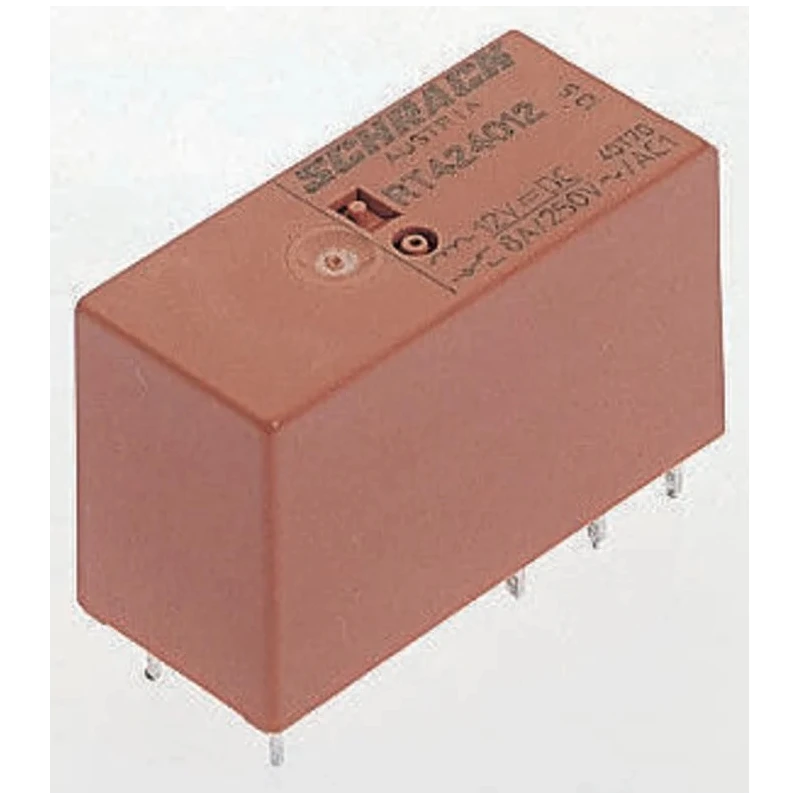

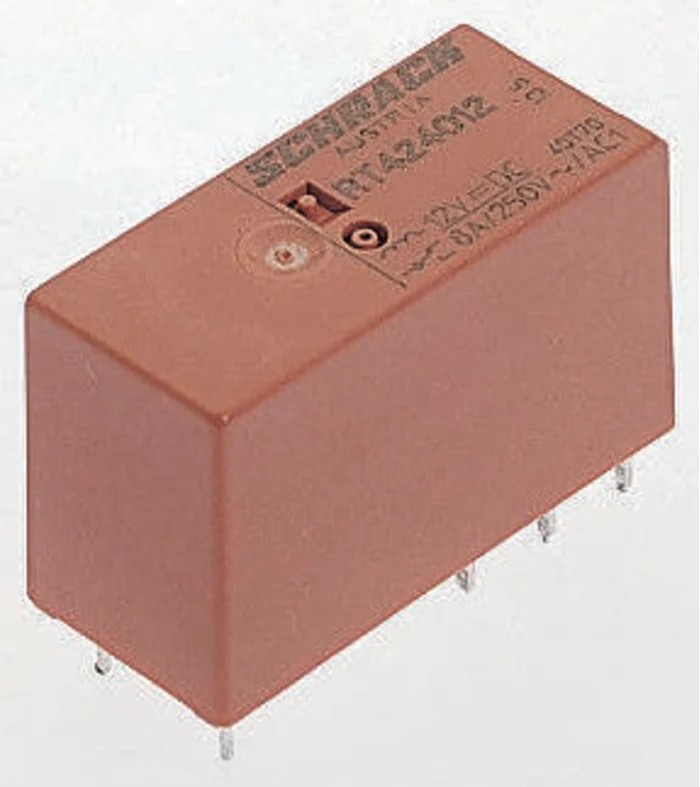

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current SPDT RT114024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT114024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminals.
- Operates within -40°C to 85°C temperature range.
- Switching AC voltage capability up to 400V AC.
- Low coil power consumption of 400mW for efficient operation.
- Constructed with silver nickel alloy contacts for durability.
- Complies with cULus and VDE standards ensuring safety and reliability.
- Suitable for automation, interface, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity RT114024 is a high-quality PCB Power Relay designed for efficient switching applications. It operates with a 24V DC coil voltage and supports a maximum switching current of 12A with a SPDT (Single Pole Double Throw) contact configuration. The relay is designed for PCB mount installation with solder-type terminals, facilitating reliable electrical connections.
This relay is part of the RT1 series, offering a robust solution with a coil resistance of 1.4kΩ and coil power consumption of 400mW. It performs reliably across a wide temperature range from -40°C to 85°C, ensuring operational stability under diverse environmental conditions.
The device supports a switching AC voltage up to 400V AC and achieves a switching power rating of 3kVA. Its compact dimensions - 29mm length, 15.7mm height, and 12.7mm width - make it suitable for space-constrained applications.
Constructed with silver nickel alloy contacts, the relay ensures durability, high conductivity, and low contact resistance. It meets recognized international safety standards including cULus and VDE approvals, reinforcing its quality and reliability for industrial, automation, and domestic applications.
Typical uses include interface control, automation systems, security lighting, and heating systems, where dependable switching performance is critical. The relay’s excellent creepage and clearance distances of 10mm provide enhanced insulation and safety during operation.
Designed for PCB mounting with solder terminals. Operates within -40°C to 85°C temperature range. Switching AC voltage capability up to 400V AC. Low coil power consumption of 400mW for efficient operation. Compact dimensions: 29mm length, 15.7mm height, and 12.7mm width.
Constructed with silver nickel alloy contacts for durability. Complies with cULus and VDE standards ensuring safety and reliability. Suitable for automation, interface, domestic applications, security lighting, and heating systems.
Explore EnvMart's catalog for more TE Connectivity Power Relays and related components suitable for diverse electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 12A.
This relay operates with a coil voltage of 24V DC.
The relay has dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
It operates within a temperature range of -40°C to 85°C.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance for this model is 1.4kΩ.
It supports a maximum switching AC voltage of up to 400V AC.
The contacts are constructed from silver nickel alloy, which provides durability and high conductivity.
It complies with cULus and VDE standards, ensuring safety and reliability.
The coil power consumption is 400mW, allowing for efficient operation.
This relay is suitable for automation, interface control, domestic applications, security lighting, and heating systems.
The relay uses solder-type terminals for PCB mounting.
