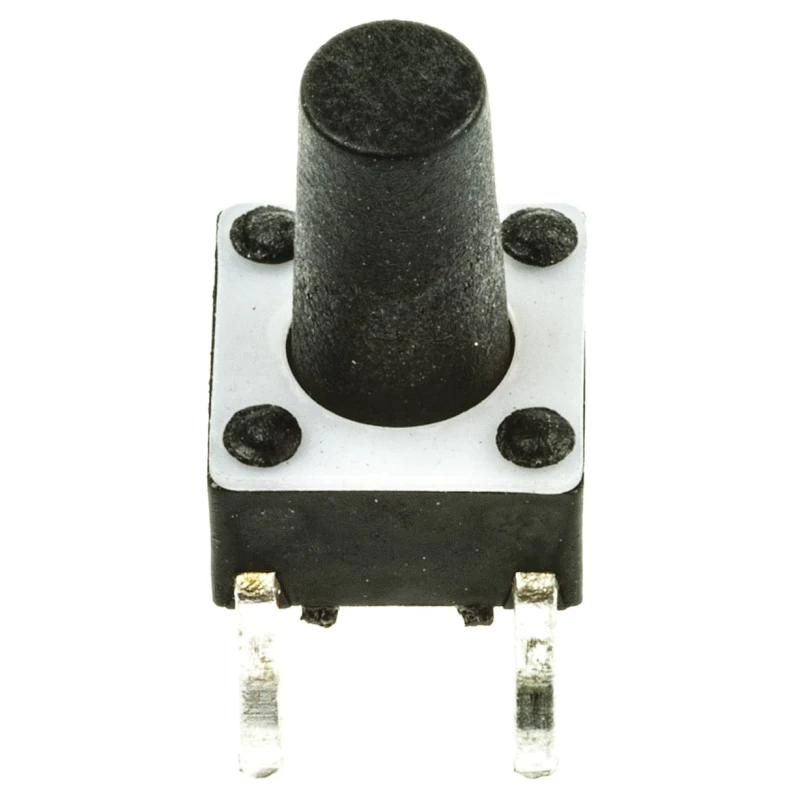

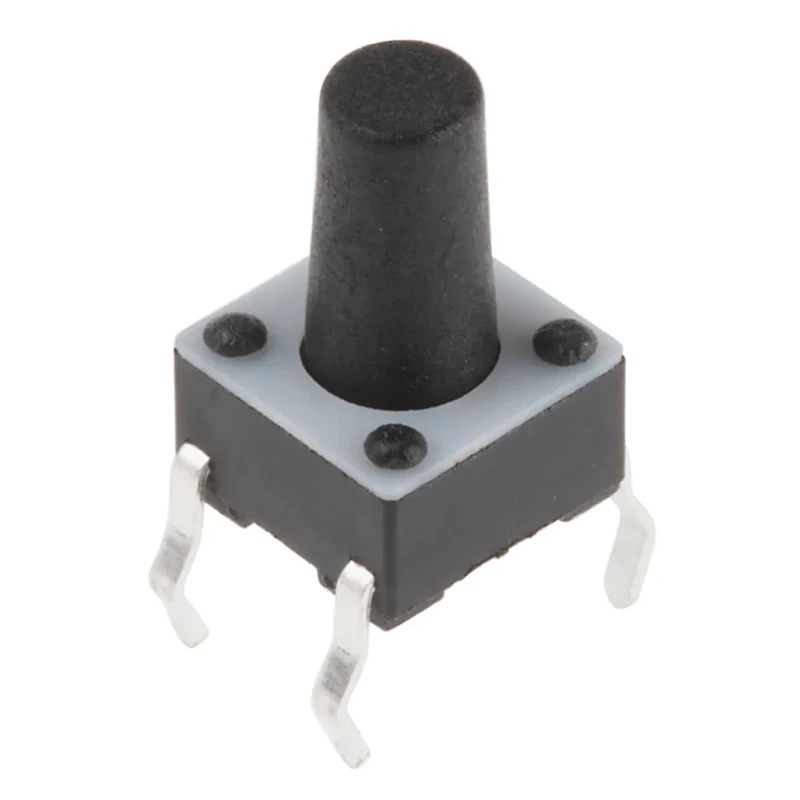

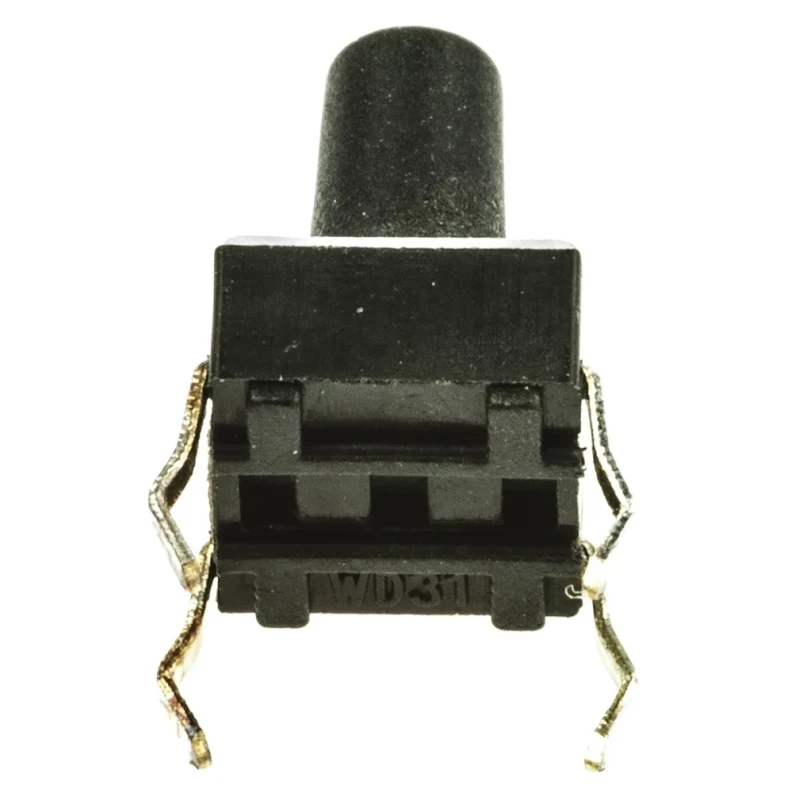

C & K TE Connectivity IP67 Black Tactile Switch Button 5.9 mm SPST 50mA 24 V dc PCB Mount FSM Series 1-1825910-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Height | 9.5mm |
| Length | 6mm |
| IP Rating | IP67 |
| Width | 6mm |
| Mount Type | PCB |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Terminal type | Solder |
| Standards/Approvals | China RoHS 2, EU ELV, EU REACH, EU RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 5.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.569N |
| Mechanical Life | 100000Operations |
| IP60 Red Button Tactile Switch, SPST 10 mA @ 32 V dc 6.2mm Surface MountBrand | C & K |
Key Features
- This tactile switch features a black actuator button measuring 5.9 mm in length.
- It operates momentarily with a switch contact current of 50mA at 24 V dc.
- The mechanical life is rated for 100000 operations ensuring durability.
- Operating temperature range from -35°C to 85°C suits diverse environmental conditions.
- The FSM series switch has IP67 ingress protection for dust and waterproof performance.
- Compact dimensions include 6 mm length, 6 mm width, and 9.5 mm height.
- Constructed with Nylon 66 housing and copper alloy-silver contacts for reliable conductivity.
- Mounting is designed for PCB and solder terminal type for easy integration.
Product Description
C & K 1-1825910-4 is a high-quality tactile switch button from the TE Connectivity FSM series designed for PCB mounting applications. Featuring an IP67 ingress protection rating, this switch provides superior resistance against dust and water, making it suitable for harsh industrial and commercial environments.
The switch features a black actuator button with a length of 5.9 mm, and compact size dimensions of 6 mm by 6 mm width, and 9.5 mm height. It operates as a Single Pole Single Throw (SPST) momentary contact switch, rated at 50mA contact current and 24 V dc contact voltage, allowing low current operation for electronic circuits.
Mechanical life expectancy is rated at 100000 operations supported by an actuation force of 1.569N and a short actuation travel, ensuring reliable tactile feedback and durability for frequent use in keyboards, keypads, telephones, radios, and other consumer electronics. The switch uses a Nylon 66 housing with copper alloy-silver moving contacts for optimum electrical performance and longevity.
Designed for printed circuit board mounting with solder terminal type, it provides easy assembly into electronic devices. The actuator style is a protruding top button for easy and precise actuation. Operating temperature range from -35°C to 85°C ensures reliable function in various environmental conditions.
This product complies with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards, ensuring environmental sustainability and safety requirements are met. This tactile switch button is compact and low profile, ideal for space-critical applications.
It is suitable for industrial automation, consumer electronics, telecommunications, and instrumentation applications. The switch's IP67 rating makes it durable for outdoor and factory floor usage. Provides excellent tactile feedback and reliable performance for momentary circuit closing.
Explore more Tactile Switch solutions in our Electronics & Electricals category for versatile and reliable switching devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for momentary operation.
The maximum operating temperature for this tactile switch is 85°C, making it suitable for various environmental conditions.
It has an IP67 ingress protection rating, providing resistance against dust and water, suitable for harsh environments.
The mechanical life is rated for 100,000 operations, ensuring reliability for frequent use.
The switch has compact dimensions of 6 mm in length, 6 mm in width, and 9.5 mm in height.
It is rated for a contact current of 50mA at a voltage of 24 V dc, allowing for low current operation in electronic circuits.
This model is designed for PCB mounting with a solder terminal type, facilitating easy integration into electronic devices.
The actuator style is a protruding top button, which allows for easy and precise actuation.
The operating temperature range is from -35°C to 85°C, making it versatile for different applications.
It is constructed with a Nylon 66 housing and copper alloy-silver contacts for reliable conductivity.
This product complies with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards, ensuring environmental safety requirements are met.
It is suitable for applications in industrial automation, consumer electronics, telecommunications, and instrumentation.
