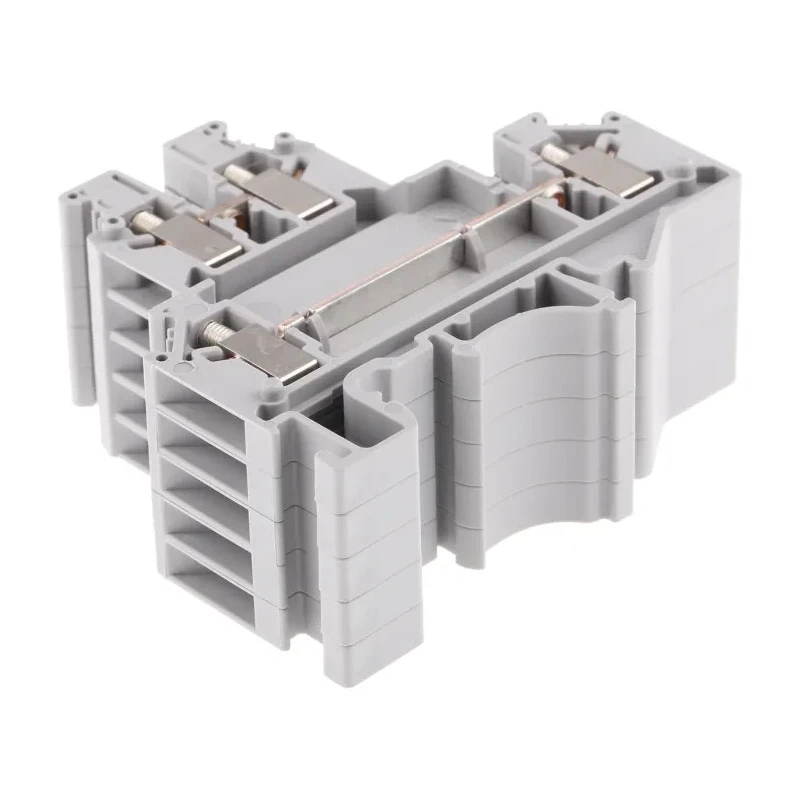

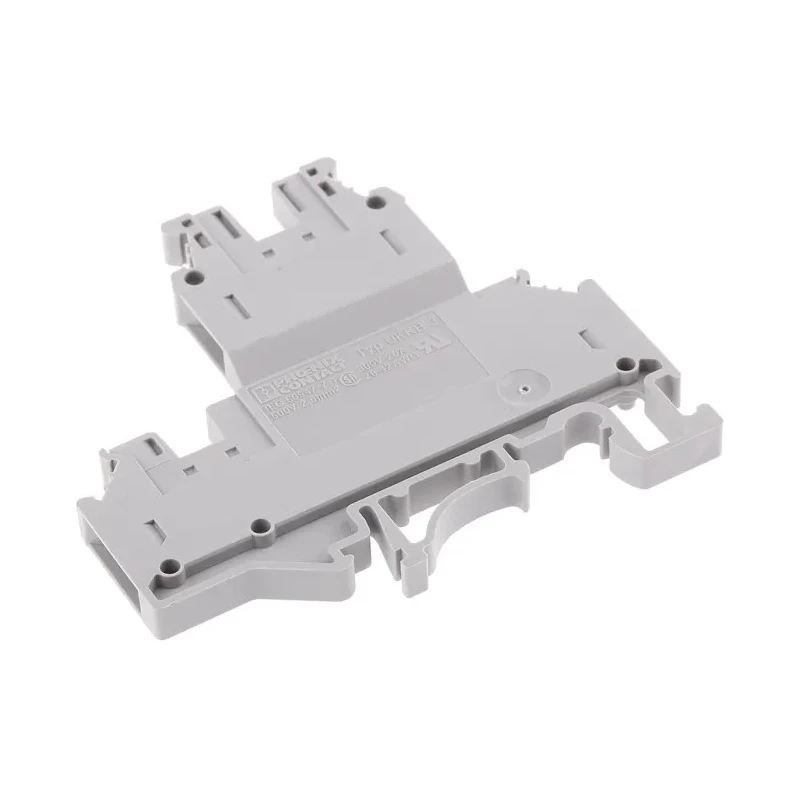

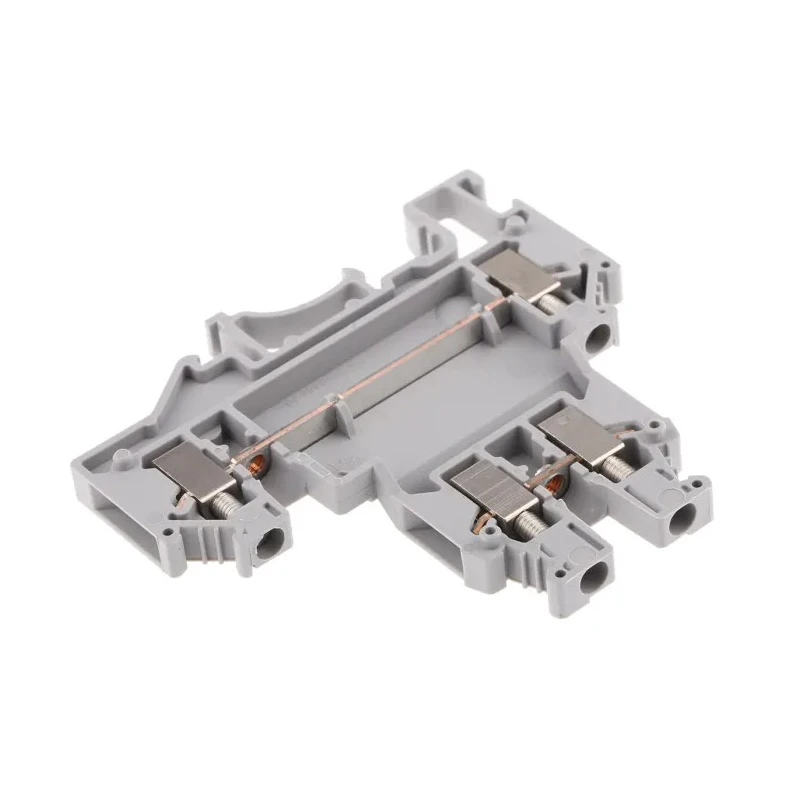

Phoenix Contact Double Level Terminal Block UKKB3 Series Grey 500V 24A Screw Terminal 20 Positions 2771010

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Double Level Terminal Block UKKB3 Series Grey 500V 24A Screw Terminal 20 Positions 2771010

Name: Phoenix Contact Double Level Terminal Block UKKB3 Series Grey 500V 24A Screw Terminal 20 Positions 2771010
Brand: PHOENIX CONTACT
SKU: 332775
Price: 11.36 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	2771010
Series	UKKB3
Termination Type	Screw
Number of Levels	2
Number of Positions	20
Standards/Approvals	CCA, CSA, cUL, cULus, DNV, EAC, IEC 60947-7-1, KEMA-KEUR, LR, PRS, RS, UL
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.2, 2.5mm²
Terminal Block Current	24A
RS PRO Double Level Terminal Block Beige, 2.5mm², 2-Level, ScrewBrand	RS PRO

Key Features

Compact double deck terminal block with grey housing enhances wiring space efficiency.
Supports wire sizes from 0.2mm² to 2.5mm² allowing flexible wiring options.
Offers 20 positions across 2 levels for streamlined circuit management.
Constructed to meet multiple industry standards including UL, CSA, and IEC 60947-7-1.
Screw-type termination ensures reliable and secure electrical connections.
Designed and certified for safe use up to 500V and continuous current of 24A.
Provides improved visibility and accessibility to lower level screws for easier maintenance.
Ideal for industrial, automation, and control applications requiring durable DIN rail terminal blocks.

Product Description

Phoenix Contact 2771010 UKKB3 Series double level terminal block features a grey polyamide housing and supports wire cross sections from 0.2mm² up to 2.5mm². Designed with a 2-level double deck construction, the upper level is laterally offset by half the width of the terminal for compact installation and improved accessibility.

The terminal block operates at a rated voltage of 500V and rated current of 24A, making it suitable for industrial electrical circuits and control gear connections. Utilizing a robust screw termination method, it ensures secure and stable wire connections, facilitating maintenance and installation efficiency.

This product conforms to certifications including UL recognized component, CSA certified, IEC 60947-7-1 standard, and has multiple international approvals such as CCA, DNV, EAC, KEMA-KEUR, and PRS, ensuring compliance with stringent safety and reliability criteria.

The compact design allows better visibility of lower marker labels and wire entry points while enhancing accessibility to screws on the lower connection level.

Commonly applied in industrial, manufacturing, automation systems, and electrical control environments, these terminal blocks facilitate efficient and reliable wiring solutions on DIN rails.

Made in China, the 20-position terminal block is engineered to balance performance with space-saving advantages. Compact double deck terminal block with grey housing enhances wiring space efficiency. Supports wire sizes from 0.2mm² to 2.5mm² allowing flexible wiring options.

Offers 20 positions across 2 levels for streamlined circuit management. Constructed to meet multiple industry standards including UL, CSA, and IEC 60947-7-1. Screw-type termination ensures reliable and secure electrical connections.

Designed and certified for safe use up to 500V and continuous current of 24A. Provides improved visibility and accessibility to lower level screws for easier maintenance. Ideal for industrial, automation, and control applications requiring durable DIN rail terminal blocks.
