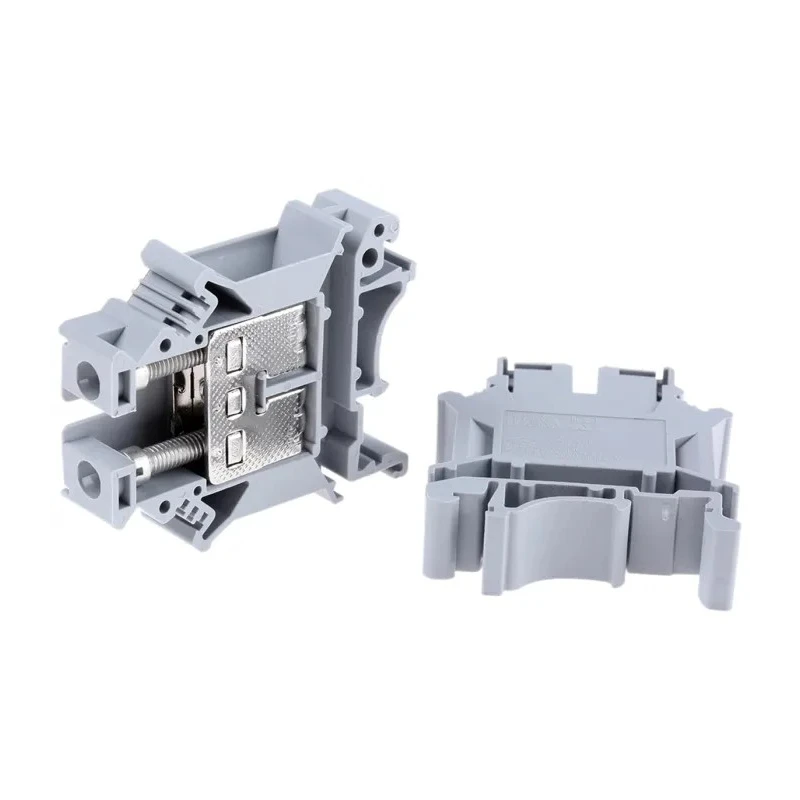

Phoenix Contact UK 16 N Series Feed Through Terminal Block Grey 16mm² 4mm² 1-Level Screw ATEX 3006043

Phoenix Contact 3006043 UK 16 N Series Feed Through Terminal Block is a high-quality grey polyamide terminal block designed for DIN rail mounting in industrial and electrical applications requiring safe and flexible wiring connections. This terminal block is engineered to connect wires of different sizes, from 4mm² to 16mm² cross-sectional areas, securely accommodating electrical loads with a maximum current rating of 76A and voltage rating of 800V.

Its screw-type termination allows for easy and secure conductor connection, supporting simple rewiring or maintenance when needed. The compact design with a width of only 12.2mm maximizes available DIN rail space, which is critical in dense wiring environments. The terminal block exhibits excellent fire safety characteristics, being rated UL94-V0 to ensure that burning stops within 10 seconds in case of fire.

Certified according to ATEX standards, this terminal block is suitable for use in hazardous areas, providing safety compliance in explosive atmospheres. The device also complies with CSA safety standards, guaranteeing reliable performance under industrial operating conditions up to 120°C.

Designed with a surge voltage withstand level of 8kV, it provides high electrical reliability under transient voltage spikes, protecting connected equipment. The feed-through design offers a one-level wiring interface to join one pair of wires per block, facilitating neat and organized wiring layouts for easy inspection and maintenance.

Phoenix Contact’s UK 16 N series terminal blocks feature universal terminals made of polyamide, compatible with 'G' and 'Top Hat' rails, and are engineered with screw conductor securing that fits closed screwdriver shafts. Available in different colours for phase, neutral, and earth connections, the terminal block is a trusted choice for industrial, manufacturing, commercial, and electrical panel applications.

Constructed with robust polyamide to minimize short-circuit risk. Supports wire sizes from 4mm² to 16mm² for versatile wiring. Screw termination ensures reliable and adjustable connections. Compact 12.2mm width optimizes DIN rail space utilization.

Certified ATEX for safe use in hazardous areas. Rated for continuous operation up to 120°C maximum temperature. CSA approved with a current rating of 76A and voltage up to 800V. UL94-V0 flammability class for enhanced fire safety.

Supports 1-level feed-through wiring configuration for organized layout. Built to withstand 8kV surge voltage for connection stability.

This terminal block is ideal for various industrial and commercial electrical installations requiring dependable terminal connections compliant with international safety standards. Explore the extensive Phoenix Contact range at EnvMart for compatible accessories and other terminal block solutions.
