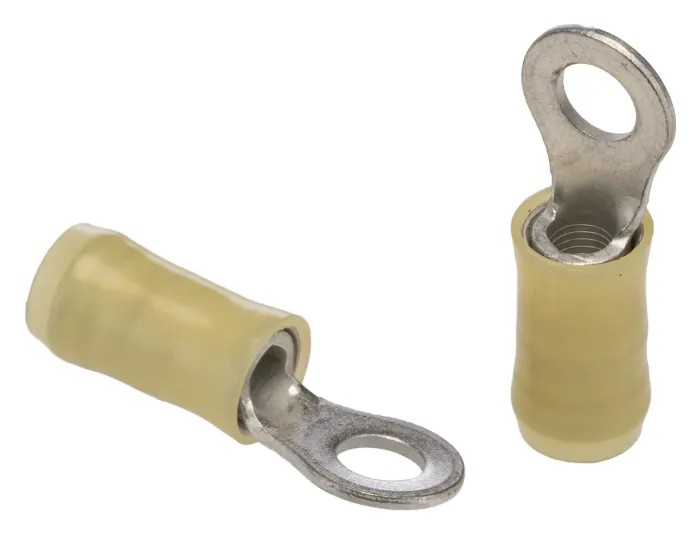

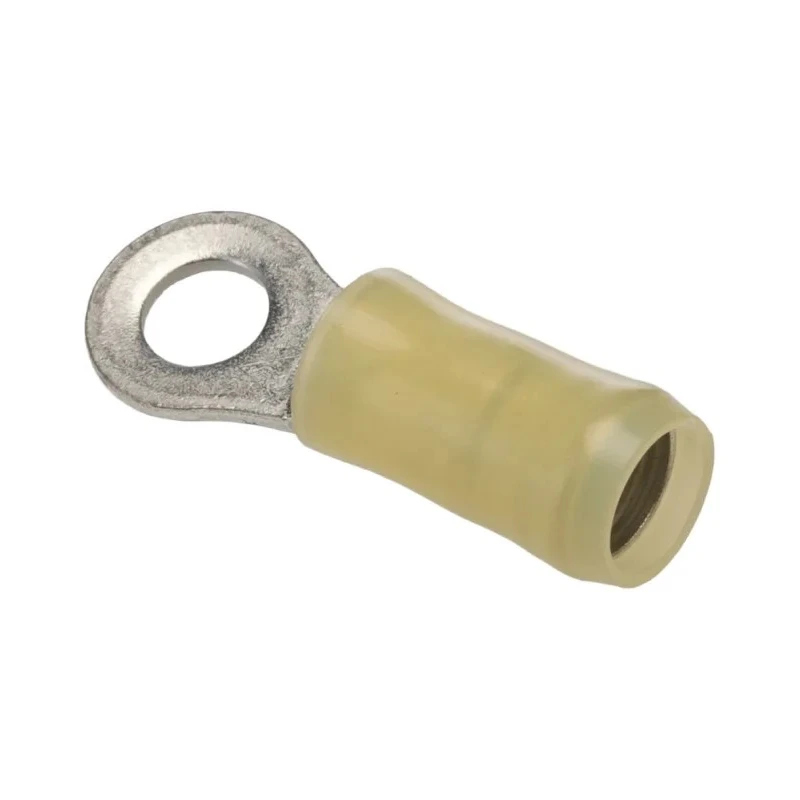

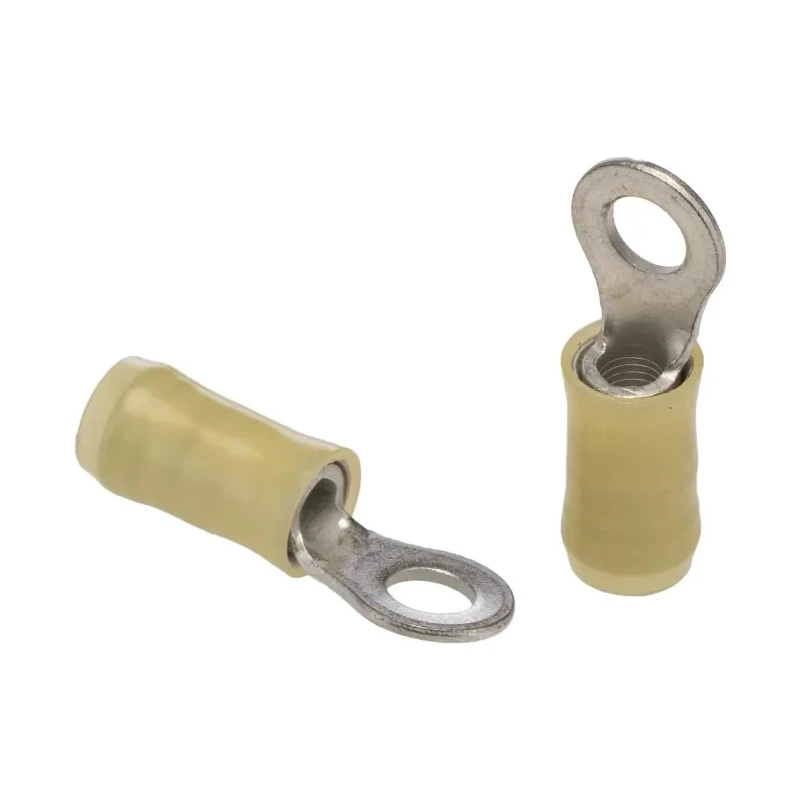

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Nylon Yellow 36161
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.039in |
| Model | 36161 |
| Insulation | Insulated |
| Overall Length | 27.5mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.52mm |
| Stud Size | M5 |
| Connector, crimp, terminal, PIBrand | TE Connectivity |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Nylon insulation provides color-coded wire size identification.
- Yellow outer sleeve enhances visibility and insulation.
- Tin-plated contact material protects against corrosion.
- Overall length of 27.5 mm for precise fitting.
- Suitable for temperatures up to 105°C.
- Designed for ease of crimping with serrated wire barrel for tensile strength.
- Supports uniform and reliable crimps for demanding circuit environments.
Product Description
TE Connectivity 36161 PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Nylon Yellow is a precision-engineered wire crimp terminal designed to provide secure and reliable electrical connections.
This Ring Terminal features a high conductivity copper body with a tin plating that ensures durability and corrosion resistance in harsh environments. The insulated design incorporates a yellow nylon sleeve that aids in easy wire size identification and enhanced electrical insulation.
With an overall length of 27.5 mm, this terminal is suitable for wire sizes ranging from 12 AWG to 10 AWG and accommodates an M5 stud size, making it versatile for various electrical applications.
The specialized PIDG (Pre-Insulated Diamond Grip) design includes serrations in the wire barrel to maximize contact and tensile strength after crimping, ensuring a uniform and secure connection.
High conductivity copper body. Copper sleeve improves wire insulation support. Serrations for maximum contact and tensile strength. Color-coded nylon sleeve for wire size identification. Funnelled wire entry promotes fast wire insertion.
This terminal is commonly used in industrial, automotive, aerospace, and electrical panel applications, complying with demanding MIL-T-7928 standards for reliability and performance.
Country of origin: United States. Product condition: New. Explore the range of TE Connectivity wire terminals at EnvMart for assured quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 105°C.
This terminal is suitable for wire sizes ranging from 12 AWG to 10 AWG.
The overall length of this terminal is 27.5 mm.
The contact material of this terminal is copper, which is tin-plated for corrosion resistance.
This terminal features nylon insulation, which aids in wire size identification and provides electrical insulation.
The stud size for this ring terminal is M5.
The terminal's PIDG design includes serrations in the wire barrel to maximize contact and tensile strength after crimping, ensuring a uniform and secure connection.
The outer ring diameter of this terminal is 9.52 mm.
This terminal is commonly used in industrial, automotive, aerospace, and electrical panel applications.
The thickness of this terminal is 0.039 inches.
This terminal complies with demanding MIL-T-7928 standards for reliability and performance.
This terminal is manufactured in the United States.
