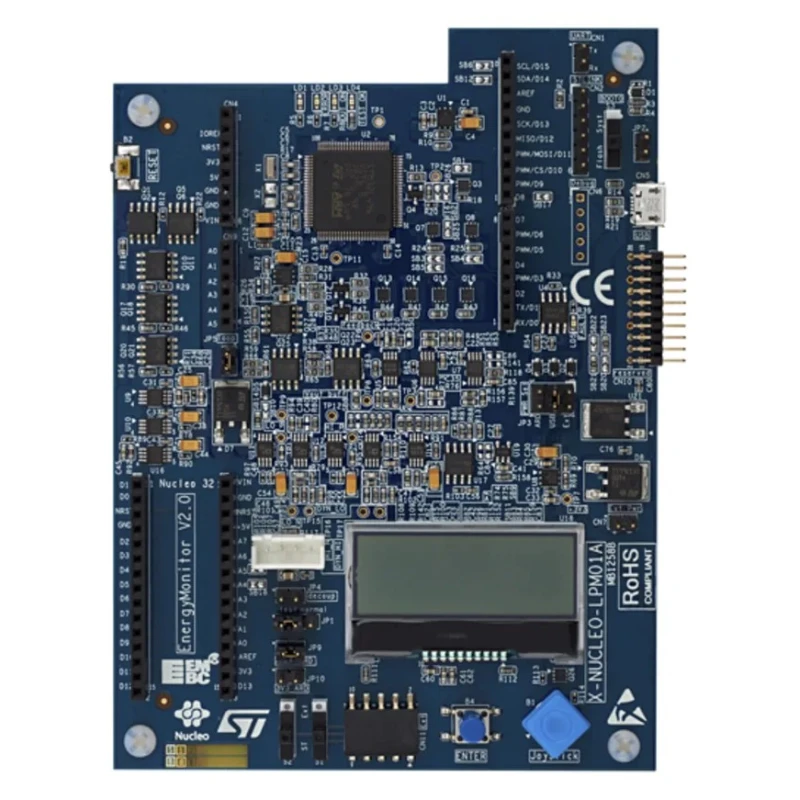

STMicroelectronics STM32 Nucleo Expansion Board Power Management Evaluation Board X-NUCLEO-LPM01A

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics STM32 Nucleo Expansion Board Power Management Evaluation Board X-NUCLEO-LPM01A

Name: STMicroelectronics STM32 Nucleo Expansion Board Power Management Evaluation Board X-NUCLEO-LPM01A
Brand: STMicroelectronics
SKU: 332184
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	X-NUCLEO-LPM01A
Sampling rate	3.2 Msps
For Use With	STM32 Nucleo
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	X-NUCLEO-LPM01A
Kit Name	STM32 Nucleo Expansion Board

Key Features

Operates with 1.8 V to 3.3 V programmable voltage output.
Measures static current from 1 nA up to 200 mA accurately.
Supports real-time dynamic current measurements up to 50 mA with 100 kHz bandwidth.
Features a 3.2 Msps sampling rate for precise power analysis.
Integrates LCD, joystick, and button for standalone operation.
Compatible with STM32CubeMonitor-Power software for USB connected control and monitoring.
Enables energy measurement through power measurement time integration.
Allows execution of EEMBC ULPMark™ tests for ultra-low power evaluation.

Product Description

STMicroelectronics X-NUCLEO-LPM01A is a high-performance power management expansion board designed for the STM32 Nucleo development platform. This programmable power supply source operates within a voltage range of 1.8 V to 3.3 V, enabling precise control and advanced power consumption measurements essential for embedded system development and evaluation.

The board supports static current consumption measurement from as low as 1 nA up to 200 mA, providing valuable data for power optimization. It also offers real-time dynamic current analysis with a bandwidth of 100 kHz and sampling rates up to 3.2 Msps, suitable for detecting transient loads and capturing power consumption profiles accurately.

Designed for flexible use, the X-NUCLEO-LPM01A operates in standalone mode using its onboard LCD, joystick, and button interface, making it easy to read static measurements without external tools. Alternatively, it can operate in controlled mode, connecting to a host PC via USB and leveraging the STM32CubeMonitor-Power software's graphical user interface for comprehensive power monitoring and analysis.

Additional features include energy measurement computation by integrating power measurement over time, facilitating detailed power profiling in complex applications. The board also supports running EEMBC ULPMark™ tests, aiding in evaluation of ultra-low power device performance.

Operates programmable voltage output from 1.8 V to 3.3 V. Accurate static current measurement spanning 1 nA to 200 mA. Real-time dynamic current measurement with 100 kHz bandwidth and 3.2 Msps sampling rate. Standalone use with built-in LCD, joystick, and buttons for user interface.

USB connectivity supports controlled mode via STM32CubeMonitor-Power software. Energy measurement facilitated by power integration over time. Supports EEMBC ULPMark™ test execution for power consumption benchmarking.

This evaluation board is ideal for developers and engineers working on embedded and IoT devices requiring precise power management and measurement solutions. It supports diverse industrial, laboratory, and educational applications, including power optimization, device profiling, and development platform expansion.
