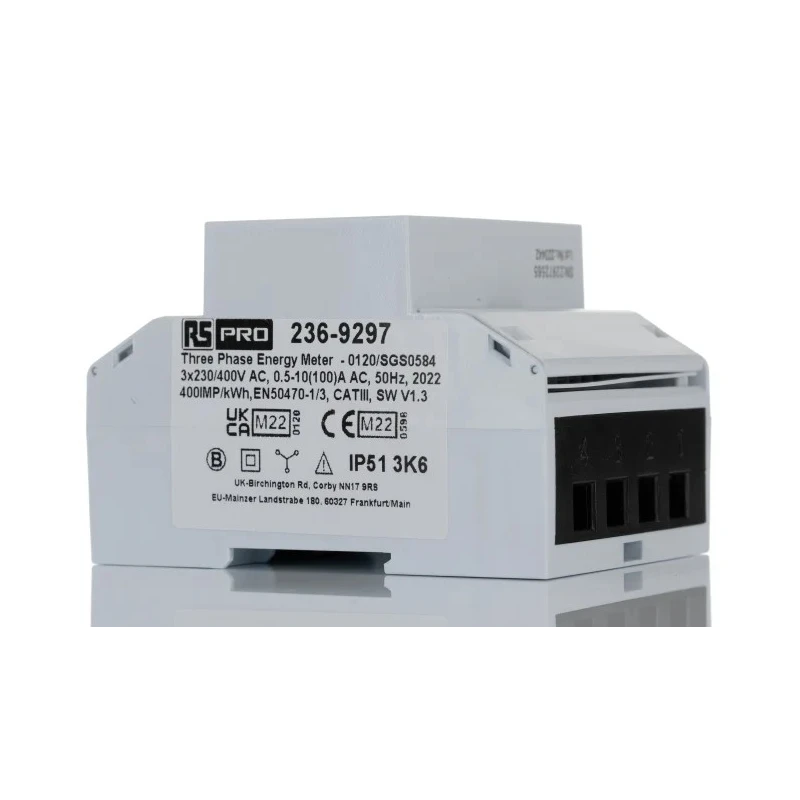

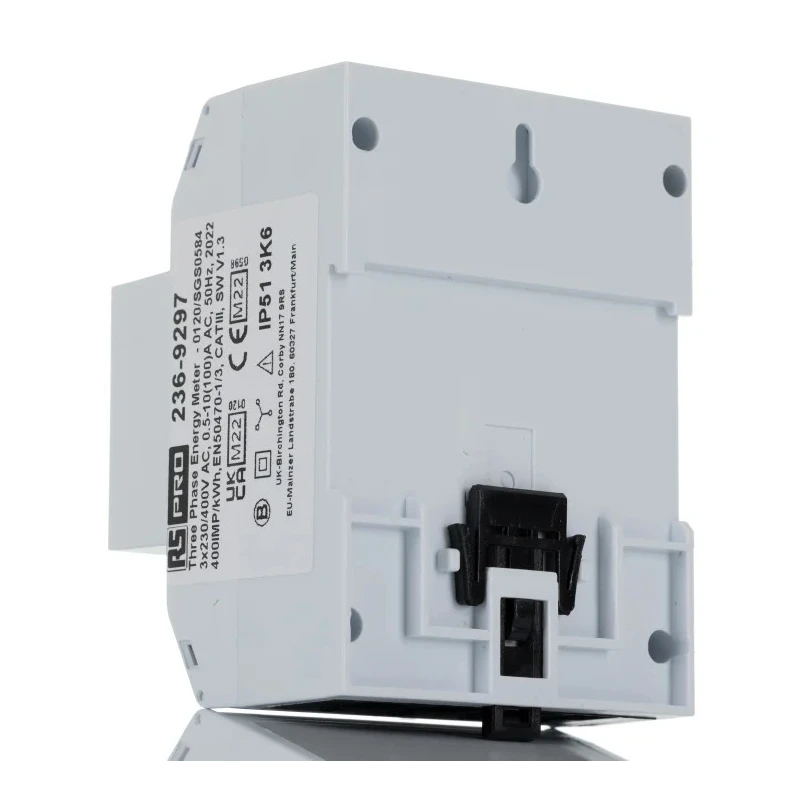

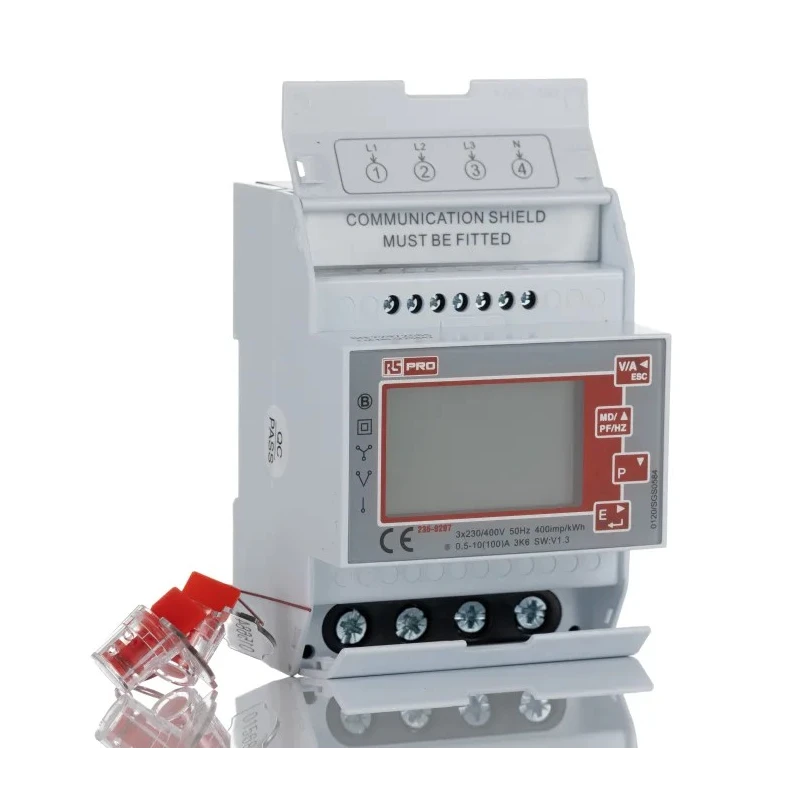

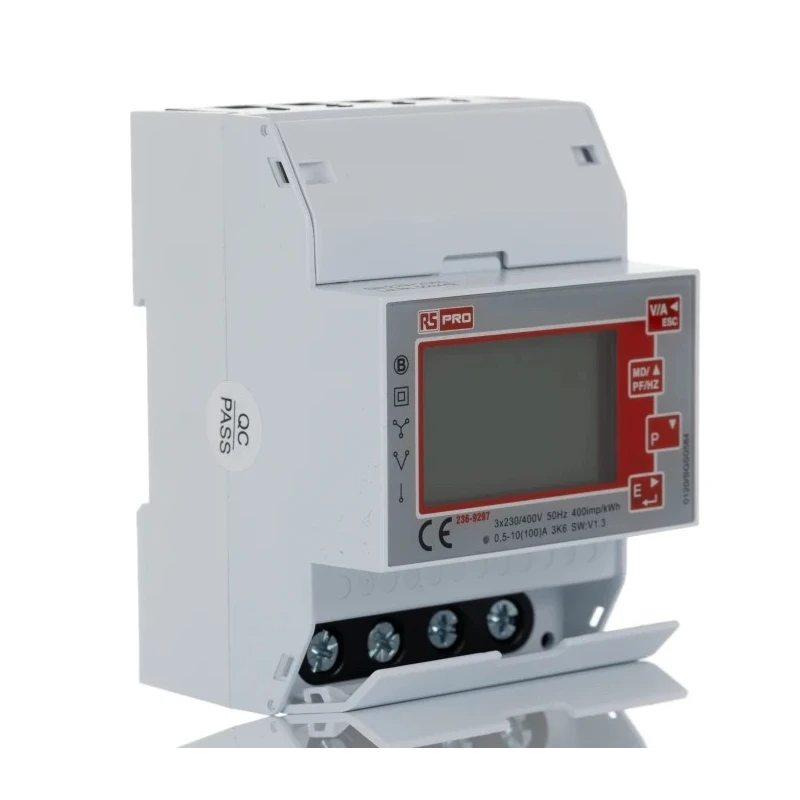

RS PRO 3 Phase Multifunction Energy Meter LCD Backlight 100A Direct Connection Modbus RTU 236-9297
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD Backlight |
| Brand | RS PRO |
| Model | 236-9297 |
| Depth | 65mm |
| Number of inputs | 4 |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Meter Type | Energy Meter |
| Number Of Digits | 8 |
| Minimum Operating Temperature | -25°C |
| Number of Phases | 3 |
Key Features
- Supports single and three phase networks with direct 100A AC connection.
- Features 8 digit blue backlit LCD display for clear parameter readings.
- Includes built-in pulse outputs and RS485 Modbus RTU for BMS integration.
- Certified to MID B+D standards with EC Type Examination Certificate 0120/SGS0584.
- Operates within a temperature range of -25°C to 55°C for wide environmental conditions.
- Measures and displays 16 different electrical power parameters.
- Compact 4-DIN module form factor with touch screen buttons for easy operation.
- Complies with IEC 62053-21 class 1 and RoHS directives for quality and safety.
Product Description
RS PRO 236-9297 is a modern multifunction 3 phase energy meter designed for accurate electrical power quality measurement and monitoring. Featuring an 8 digit blue backlit LCD display, this meter supports both single phase and three phase networks with a direct connection up to 100A AC. It offers built-in pulse outputs and RS485 Modbus RTU communication, enabling integration with building management and remote monitoring systems.
The meter complies with MID B+D certification (EC Type Examination Certificate Number 0120/SGS0584), IEC 62053-21 class 1 standards, and RoHS requirements. This confirms its suitability for tariff billing, sub-billing, and energy import/export measurement applications. The robust design supports operation within a temperature range of -25°C to 55°C and is engineered to replace multiple older models by consolidating various functions into one unit.
The compact 4-DIN module housing, combined with touch screen buttons, allows for convenient installation and control in industrial panels. The meter does not require external current transformers, which simplifies wiring and deployment for 3 phase 100A AC circuits. With 16 electrical parameters measurable, users gain comprehensive power quality insights for efficient energy management.
Supports 1P2W single phase and 3P3W or 3P4W three phase configurations. Dual pulse outputs facilitate external recording and control. RS485 Modbus RTU interface enhances compatibility with automation systems. Designed for industrial, commercial, residential, and utility applications.
Certified to meet relevant IEC and MID standards ensuring measurement accuracy.
The RS PRO 236-9297 energy meter is an ideal solution for precise, reliable electrical energy monitoring. Its modern features and certifications make it suitable for process control, automation, and electrical distribution systems requiring dependable measurement of energy consumption and quality.
Explore more advanced Energy Meters and measuring instruments in the Industrial Machines & Instruments category at EnvMart for your electrical monitoring needs.
