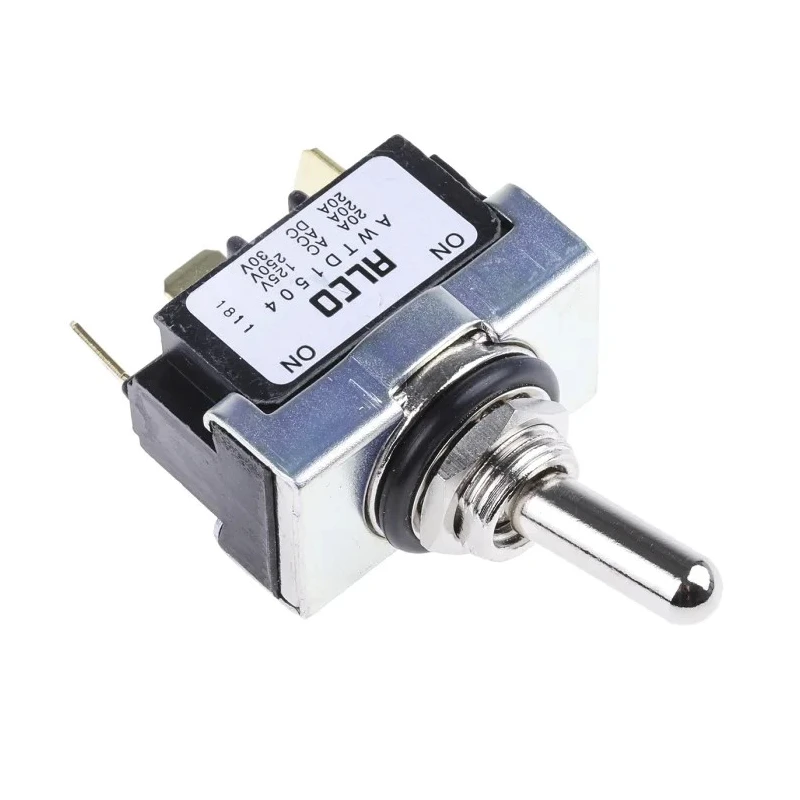

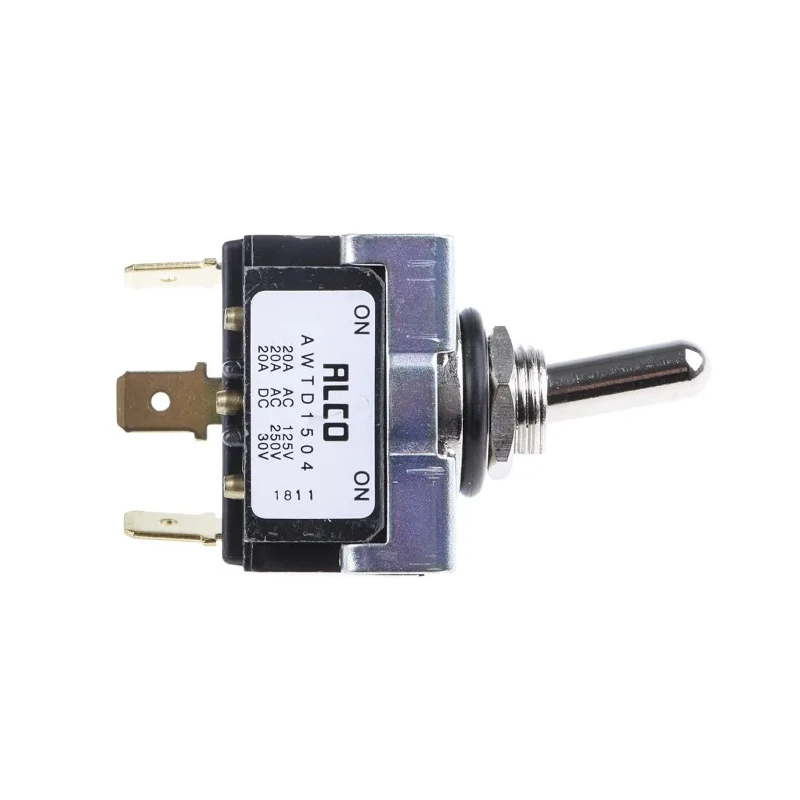

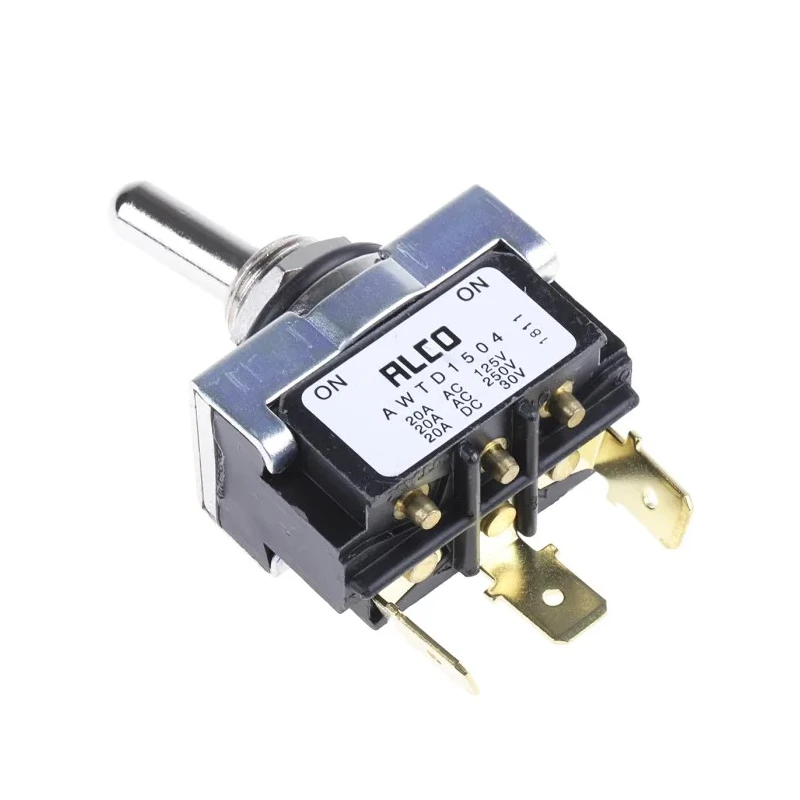

TE Connectivity Toggle Switch Panel Mount On-On SPDT Tab Terminal 30V DC 250V AC AWTD1504
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Model | AWTD1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 8A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- The switch features a robust brass actuator and glass filled polyester case for durable performance.
- It offers an IP67 rating, ensuring water and dust resistance for harsh environments.
- Designed for panel mounting with tab terminals for easy installation.
- Rated for a contact current of 8 amps, suitable for moderate electrical loads.
- Operating temperature range from -20°C to 70°C supports diverse environmental conditions.
- The toggle switch is RoHS compliant and has a mechanical life of 40,000 cycles.
- Silver plated contacts prevent corrosion and improve conductivity.
- Suitable for automation, electrical panels, and industrial control applications.
Product Description
TE Connectivity AWTD1504 is a high-quality toggle switch designed for panel mount installation, featuring a single-pole double-throw (SPDT) contact configuration with On-On switch operation. It is rated for electrical loads up to 30 volts DC and 250 volts AC with an 8 amp contact current rating. The actuator is made of brass, and the durable glass filled polyester case provides robust mechanical protection.
This toggle switch boasts an IP67 ingress protection rating, making it waterproof and dust-tight, ideal for use in harsh industrial, automation, and electrical control environments. The switch operates reliably within a temperature range of -20°C to 70°C, ensuring stable performance under varying environmental conditions.
The switch utilizes silver plated contacts sealed against dust and liquid ingress, extending the contact life and ensuring reliability. The mechanical life of 40,000 cycles affirms its durability for long-term applications. Terminals are tab type, facilitating secure and convenient wiring connections.
Applications include electrical panels, automation systems, commercial equipment, and other industrial uses requiring reliable on-on SPDT switching in harsh conditions. The panel mount design allows for straightforward integration into various control interfaces.
The switch features a brass actuator and glass filled polyester case for durability. Waterproof design with IP67 rating for dust and liquid resistance. Contact rating of 8A supports medium load electrical switching. Mechanical life rated at 40,000 cycles ensures longevity.
Operating temperature suitable from -20°C to 70°C for versatile environments. Silver plated contacts resist corrosion and enhance conductivity. Panel mount switch with tab terminal connection for easy installation.
Country of origin: Japan. This product is RoHS compliant and approved to relevant standards. Choose TE Connectivity AWTD1504 toggle switch for dependable, long-lasting panel mount applications. Explore more Toggle Switches and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a single-pole double-throw (SPDT) contact configuration with On-On switch operation.
The maximum operating temperature for this model is 70°C.
It has an IP67 rating, making it waterproof and dust-tight, suitable for harsh environments.
The switch is rated for a contact current of 8 amps, suitable for moderate electrical loads.
This model uses tab type terminals, facilitating secure and convenient wiring connections.
The mechanical life of this switch is rated at 40,000 cycles, ensuring longevity for long-term applications.
The actuator is made of brass, and the case is constructed from glass filled polyester, providing robust mechanical protection.
It supports a contact DC voltage of 30V and an AC voltage of 250V.
The minimum operating temperature is -20°C, allowing it to function in diverse environmental conditions.
Yes, this toggle switch is RoHS compliant and approved to relevant standards.
It is suitable for applications in electrical panels, automation systems, and industrial control environments requiring reliable switching.
This model is designed for panel mounting, allowing for straightforward integration into various control interfaces.
