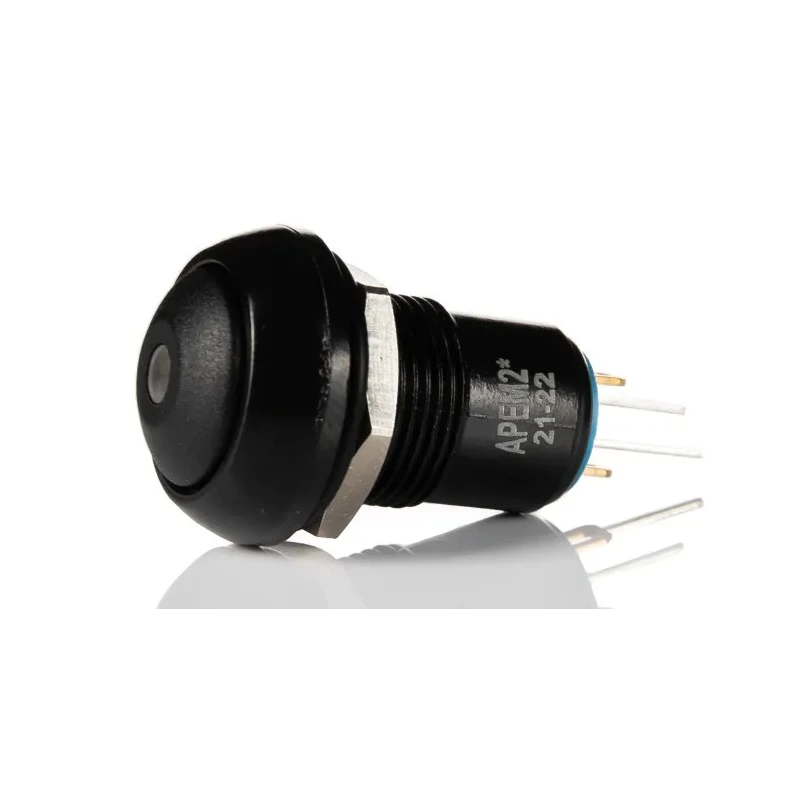

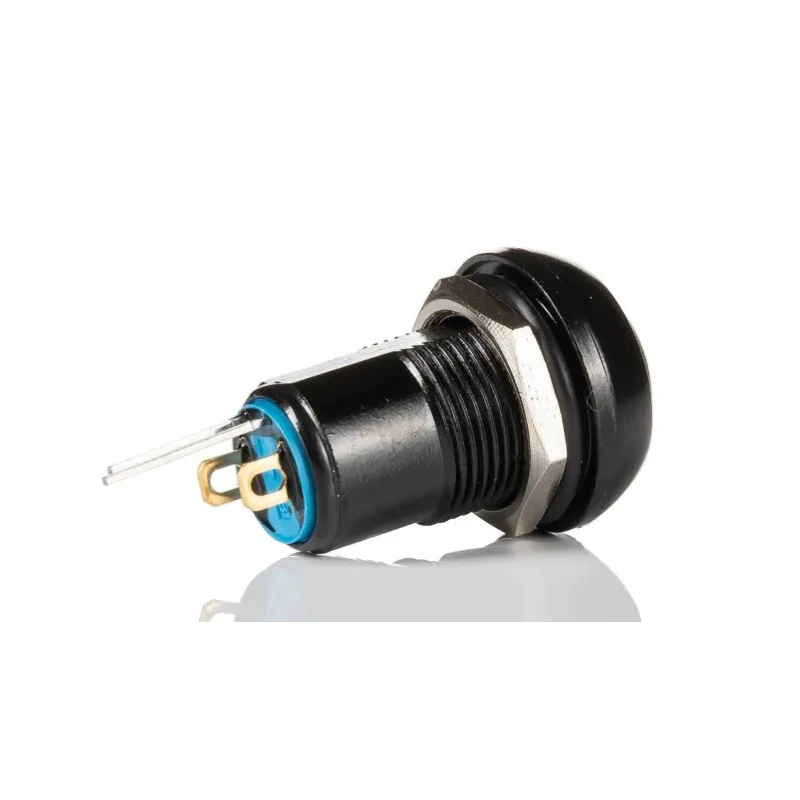

APEM IP Series Illuminated Miniature Push Button Switch, Latching, Panel Mount, 13.6 mm Cutout, SPST, Yellow IPR1SAD2LOY
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPR1SAD2LOY |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
Key Features
- The switch features a black plunger actuator with a latching operation for secure on/off control.
- It offers a single pole single throw (SPST) configuration for straightforward switching needs.
- LED indicator is yellow, providing clear visual status feedback.
- IP67 rating ensures the switch is dust tight and protected against immersion in water for harsh environments.
- The compact design fits a 13.6 mm cutout with dimensions of 17.5 mm width and 16 mm height.
- Terminals are epoxy sealed and solder type, preventing flux ingress during soldering.
- Operating temperature ranges from -40°C to +85°C, suitable for extreme conditions.
- Switch contact current is rated for 5 A AC for reliable electrical performance.
Product Description
APEM IPR1SAD2LOY is an illuminated miniature push button switch from the IP Series, designed for panel mounting applications with a panel cutout size of 13.6 mm. Featuring a latching switch operation, this SPST switch provides reliable on/off control for industrial and automation systems.
The black plunger actuator is ergonomically styled for easy use and durability. The yellow LED illumination offers clear visibility of switch status during operation. The epoxy sealed solder terminals prevent flux ingress and increase switch longevity in soldering processes.
With an IP67 ingress protection rating, this switch is dust tight and resistant to immersion in water, making it suitable for rugged industrial environments including manufacturing, electrical panels, and automation controls.
It supports a switch contact current of 5 A AC and tolerates operating temperatures ranging from -40°C to 85°C, ensuring stable performance under extreme temperature conditions. The compact dimensions with 17.5 mm width and 16 mm height fit seamlessly into control panels with a 13.6 mm cutout.
The switch features a black plunger actuator with latching operation. The switch is illuminated with a yellow LED for clear on/off indication. IP67 rating provides robust protection against dust and water. Solder-type terminals are epoxy sealed to prevent flux ingress.
Operating temperature range is from -40°C to 85°C for industrial use. The contact current rating is 5 A AC for reliable switching. Compact size enables easy panel integration with a 13.6 mm cutout. RoHS compliant, ensuring environmental safety.
This APEM IP Series mini push button switch is ideal for electrical, automation, and control panel applications requiring small form factor and reliable performance under harsh conditions. Browse the Electronics & Electricals category on EnvMart for a complete range of miniature Push Button Switches.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has an IP67 rating, ensuring it is dust tight and protected against immersion in water, making it suitable for harsh environments.
It operates within a temperature range of -40°C to 85°C, allowing it to function in extreme conditions.
This model features a single pole single throw (SPST) configuration, providing straightforward on/off control.
The required panel cutout size for installation is 13.6 mm.
The switch contact current is rated for 5 A AC, ensuring reliable electrical performance.
It features solder-type terminals that are epoxy sealed to prevent flux ingress during soldering.
The LED indicator is yellow, providing clear visual status feedback during operation.
It has a plunger actuator style, designed for ergonomic use and easy operation.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The switch has a width of 17.5 mm and a height of 16 mm, making it compact for panel integration.
This model operates with a latching mechanism, providing secure on/off control.
The country of origin for this switch is France.
