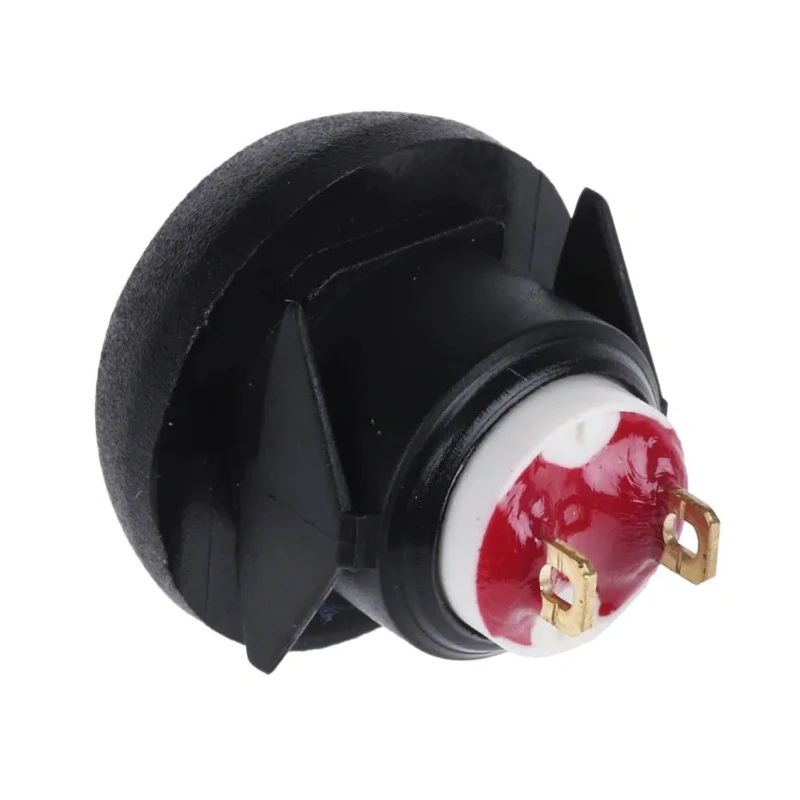

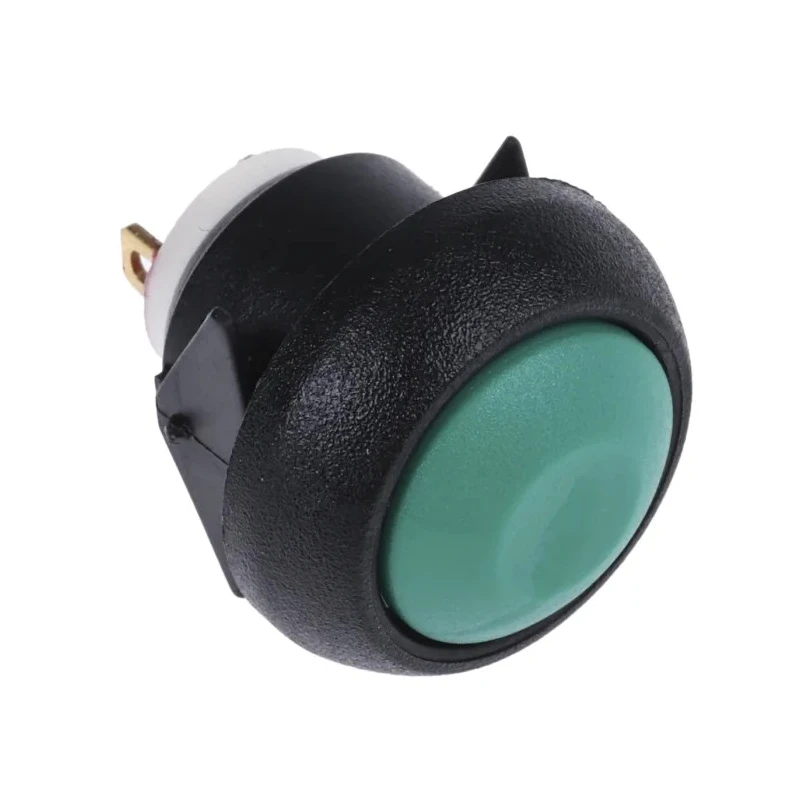

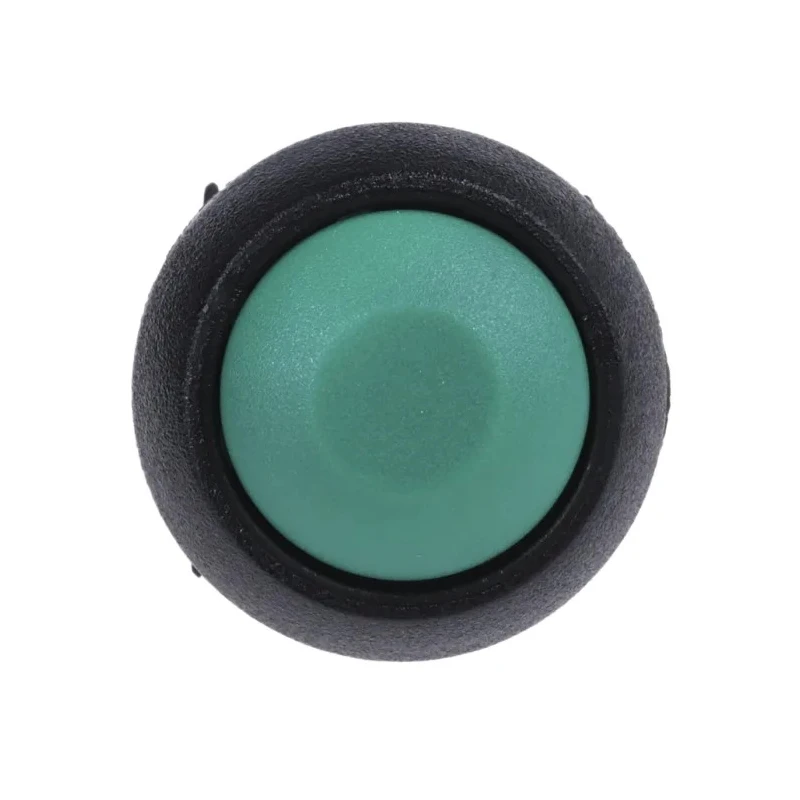

APEM Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, IP67, 50 V dc 125 V ac IBR3SAD3
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 13mm |
| Model | IBR3SAD3 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- The switch features a green actuator color and plunger style for easy operation.
- It has a single-pole, single-throw (SPST) contact configuration with normally open (NO) switch configuration.
- The switch provides an IP67 rating for dust and water resistance, suitable for harsh environments.
- Supports contact voltages up to 50 V dc and 125 V ac with a contact current rating of 400 mA.
- Designed for panel mounting with solder-type terminals for secure electrical connections.
- The operating temperature range is wide, from -40°C to 85°C, making it suitable for various industrial settings.
- Complies with RoHS standards ensuring eco-friendly material compliance.
- Compact height of 13 mm fits narrow panel spaces efficiently.
Product Description
APEM IBR3SAD3 is a miniature push button switch designed for panel mounting in electrical and automation applications. Featuring a momentary switch operation with a green plunger actuator, it is optimized for reliable momentary contact use with a single-pole, single-throw configuration.
Its robust design includes epoxy-sealed terminals that prevent flux ingress during soldering, ensuring durability and long service life. The device holds an IP67 ingress protection rating, making it suitable for industrial, manufacturing, and automation environments that require protection against dust and water ingress.
The switch supports both 50 V dc and 125 V ac electrical ratings with a maximum contact current of 400 mA, providing flexibility in low power control circuits. It is designed to fit into a panel cutout size of 13.6 mm, with a slim height of 13 mm, aiding installation into confined panel assemblies.
The operating temperature range from -40°C to 85°C ensures reliable performance in harsh temperature environments. This switch complies with RoHS standards, aligning with regulatory requirements for lead-free and environmentally safe components.
Green plunger actuator for momentary operation. Single-pole, single-throw (SPST), normally open contact. Panel mount with solder terminals and epoxy-sealed construction. Rated IP67 for dust and water resistance. Voltage rating: 50 V dc, 125 V ac.
Contact current rating: 400 mA. Operating temperature range: -40°C to 85°C. RoHS compliant for environmental safety.
This product is ideal for use in industrial automation, manufacturing control panels, and electrical instrumentation requiring reliable momentary switching with high ingress protection.
Explore more components in the Push Button Switch category for complete panel control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole, single-throw (SPST) contact configuration with a normally open (NO) switch setup.
It supports contact voltages up to 50 V dc and 125 V ac, with a maximum contact current rating of 400 mA.
The switch has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
The operating temperature range is from -40°C to 85°C, allowing it to perform reliably in extreme conditions.
This switch is designed to fit a panel cutout size of 13.6 mm.
It features solder-type terminals for secure electrical connections during installation.
The actuator style is plunger, and it is colored green for easy identification and operation.
Yes, it complies with RoHS standards, ensuring that it is made from environmentally safe materials.
It is designed for panel mounting, making it suitable for integration into various control panels.
This model is part of the IB series of push button switches.
It is ideal for use in industrial automation, manufacturing control panels, and electrical instrumentation requiring reliable momentary switching.
The height of this model is 13 mm, allowing it to fit into narrow panel spaces efficiently.
