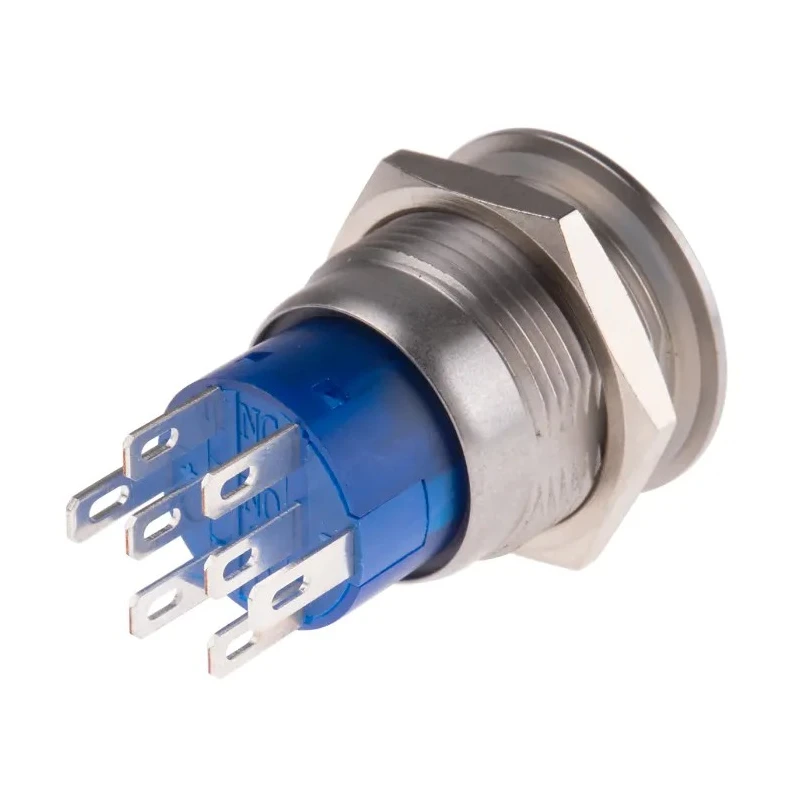

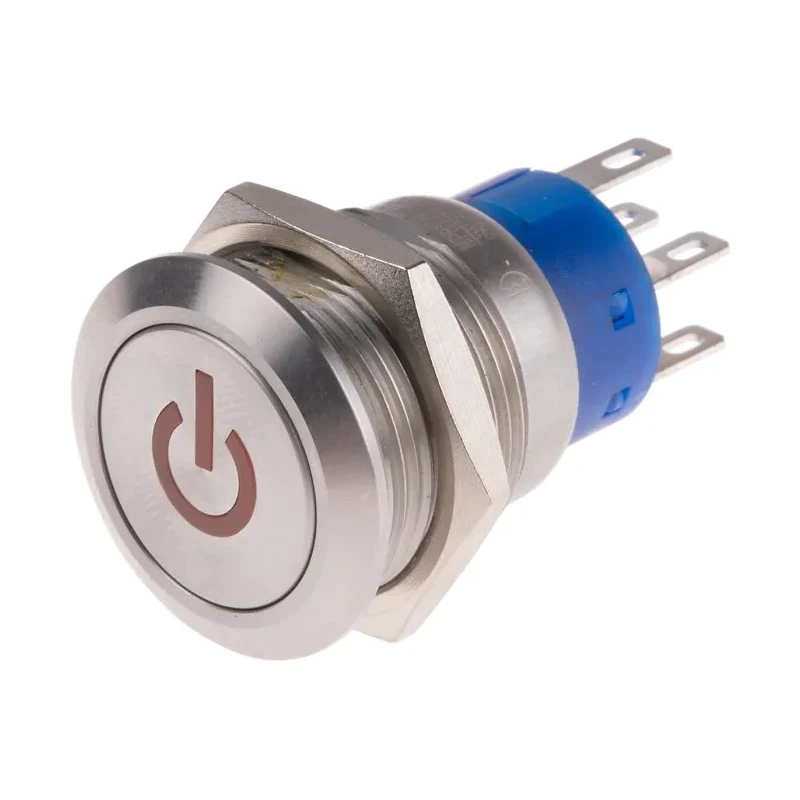

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19 mm Cutout, DPDT, Red LED, IP67, 250 V AC 5A 111-5819
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5819 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2 NO/2 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
Key Features
- The switch features a round silver actuator with a red LED illumination.
- It has an IP67 rating making it dust-tight and protected against water immersion.
- It supports contact voltages of 250 V AC and DC with a contact current rating of 5A.
- The switch operates reliably between -20°C and 55°C with 2 NO/2 NC switch configuration.
- Designed for applications demanding robust and high-quality switching, including industrial control gear and medical equipment.
- Silver plated copper contacts ensure firm electrical connections.
- Compact design allows installation in space-restricted applications.
- Carries cULus Recognized E 187490, ENEC 18, and IK10 approval ratings.
Product Description
RS PRO 111-5819 is a high-quality illuminated momentary push button switch designed for panel mounting applications requiring a 19 mm panel cutout. The switch is equipped with a double pole double throw (DPDT) contact configuration and features a silver round actuator style with red LED illumination, providing clear visual feedback.
Rated at IP67, this switch offers excellent protection against dust ingress and water immersion, making it suitable for demanding environments. It supports contact voltages of 250 V AC and DC with a 5A contact current capacity, ensuring reliability in industrial and medical equipment contexts.
This push button switch handles operating temperatures ranging from -20°C to 55°C, providing robust performance across a variety of industrial and commercial use cases. The switch configuration includes 2 normally open (NO) and 2 normally closed (NC) contacts, enabling flexible control options.
Additional features include silver-plated copper contacts for enhanced conductivity and firm connections. The compact design allows installation in space-restricted applications where conventional switches may not fit.
The switch is IP67 rated for protection against dust and water. Silver plated copper contacts ensure firm electrical connections. The device is suitable for industrial control gear and medical equipment. Panel mount installation with a 19 mm cutout size.
Red LED illumination provides visual actuation status. This product is manufactured to high standards and carries approvals including cULus Recognized E 187490, ENEC 18, and IK10 rating, ensuring compliance and reliability.
Ideal for electrical, automation, medical, and communications equipment applications, the RS PRO 111-5819 illuminated Push Button Switch is a premium choice for precise and reliable switching needs.
Browse the Electronics & Electricals category on EnvMart for more advanced switch and control solutions from RS PRO and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, with 2 normally open (NO) and 2 normally closed (NC) contacts.
It has an IP67 rating, providing protection against dust ingress and water immersion.
This model operates reliably between -20°C and 55°C.
The contact current rating is 5A, suitable for various applications.
It requires a panel cutout size of 19 mm for proper installation.
The switch features a red LED illumination, which provides clear visual feedback during operation.
It supports contact voltages of 250 V AC and 250 V DC.
The terminal type is solder pin, which is common for panel-mounted switches.
It carries cULus Recognized E 187490, ENEC 18, and IK10 approval ratings, ensuring compliance with safety standards.
The actuator style is round and its color is silver, providing a distinct appearance.
It is designed for applications such as industrial control gear and medical equipment, where robust switching is required.
The switch is designed for panel mounting, allowing it to be securely installed in various equipment.
