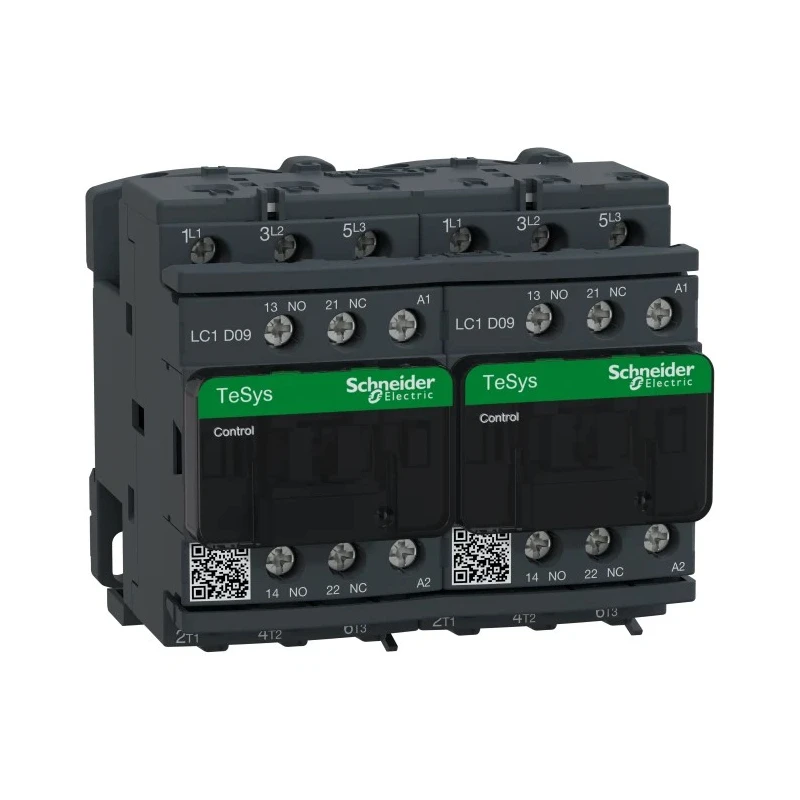

Schneider Electric TeSys D Reversing Contactor, 110V AC Coil, 3-Pole, 9 A, 4 kW, 3 NO, 690V AC LC2D09FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D09FE7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, CCC, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Supports motor control and resistive load applications with a 9A contact current capacity.
- Rated power handling of 4 kW at 690V AC.
- Features 3 normally open (NO) contacts suitable for reversing motor control.
- Includes 2 auxiliary contacts with 2 NO and 2 NC configurations for added switching capabilities.
- Compact design with dimensions of 90mm width, 77mm length, and 86mm depth for DIN rail mounting.
- Constructed with IP20 finger-safe screw terminals compatible with international standards.
- Operational at temperatures ranging from -25°C to 50°C ensuring durability in harsh environments.
- Compliant with multiple international standards including CSA, CCC, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC2D09FE7 is a TeSys D Reversing Contactor designed for efficient motor control applications. It operates on a 110V AC coil and supports 3 poles with a maximum contact current of 9A and power rating of 4 kW at 690V AC. This compact device measures 90mm in width, 77mm in length, and 86mm in depth, allowing for easy DIN rail mounting or screw fixing in industrial control panels.
The contactor features 3 normally open (NO) main contacts, supplemented by 2 built-in auxiliary contacts configured as 2 NO and 2 NC, providing additional switching flexibility. The screw clamp terminals offer IP20 finger-safe protection and include terminal markings suitable for both North American and international wiring standards.
Rated for reliable operation in environments with temperatures between -25°C and 50°C, the LC2D09FE7 contactor ensures high mechanical and electrical endurance with operating rates up to 3600 cycles per hour. It includes a pre-installed mechanical interlock for safe reversing applications without electrical interlocking complexity.
This product complies with international standards such as IEC, UL, CSA, CCC, EAC, and RoHS, highlighting its safety and environmental responsibility. It forms part of Schneider Electric's Better World product range, designed for disassembly to support sustainability efforts.
The LC2D series is optimized for motor control and resistive load applications and is suitable under utilization categories AC1 (resistive load, heating) and AC3 (squirrel cage motors during running). Typical applications include motor control for conveyors, pumps, compressors, lifts, escalators, and HVAC systems in industrial, manufacturing, and commercial environments.
Supports quick and simple installation with DIN rail or panel mounting options. Built-in auxiliary contacts enable enhanced control capabilities. Robust and compact design suitable for diverse industrial setups. Comprehensive international certifications ensure global usability.
Maintains high reliability and durability in demanding applications. Explore the range of Schneider Electric automation and control gear products on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current capacity of this model is 9A.
It has a maximum power rating of 4 kW at 690V AC.
The dimensions are 90mm in width, 77mm in length, and 86mm in depth.
It supports DIN rail mounting or can be screw fixed in control panels.
The coil voltage for this model is 110V AC.
It includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It operates within a temperature range of -25°C to 50°C.
This product complies with CSA, CCC, EAC, IEC, RoHS, and UL standards.
It is suitable for motor control and resistive load applications, including conveyors, pumps, compressors, lifts, escalators, and HVAC systems.
It features IP20 finger-safe screw terminals with terminal markings suitable for both North American and international wiring standards.
It has 3 normally open (NO) main contacts.
It has an operating rate of up to 3600 cycles per hour, indicating high mechanical endurance.
