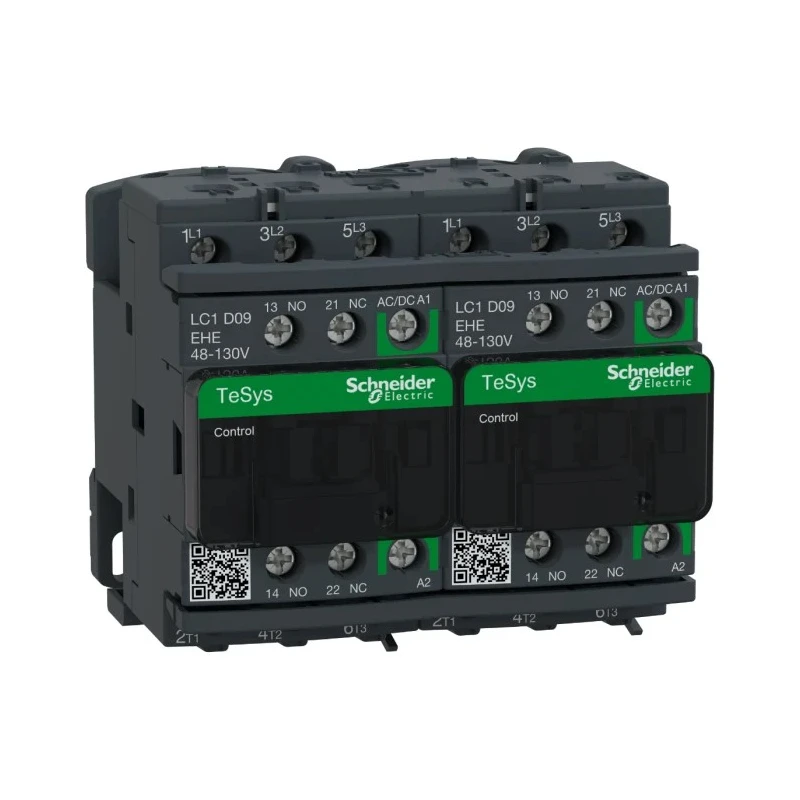

Schneider Electric TeSys D Reversing Contactor 110V AC/DC Coil 3-Pole 9A 5.5kW 130V 3 NO 690V AC LC2D09EHE

Schneider Electric LC2D09EHE is a TeSys D Reversing Contactor featuring a 110V AC/DC coil voltage and a 3-pole design with a 9A contact current rating. This device supports a 5.5kW power rating at 130V and features 3 normally open contacts suitable for motor control and resistive load applications. Designed for industrial and commercial use, the contactor offers a robust solution for controlling motors, lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning units.

The contactor includes built-in auxiliary contacts for enhanced switching capability, pre-installed mechanical interlock to prevent simultaneous closing, and uses screw connections with IP20 finger-safe terminals marked for North American and International standards. It supports DIN Rail mounting for flexible installation and is tailored for harsh environments with an operating temperature range from -25°C to 60°C.

As part of the TeSys D series, the LC2D09EHE offers long mechanical and electrical life, combining reliability with compliance to major international standards such as EAC, CCC, CSA, IEC, RoHS, and UL. The 3-pole reversing configuration with 2 NO and 2 NC auxiliary contacts enables effective motor direction control with safety interlocks.

The contactor’s utilization categories AC-1 and AC-3 define its suitability for resistive loads and squirrel cage motors requiring breaking while running, making it ideal for diverse industrial automation and control applications.

Operates with a coil voltage of 110V AC/DC ensuring flexible power input compatibility. Equipped with 3 poles and a contact current rating of 9A suitable for moderate load requirements. Power rating of 5.5kW at 130V supports efficient motor control applications.

Features 3 normally open contacts and 2 auxiliary contacts configured as 2 NO and 2 NC for versatile switching. DIN Rail mounting and IP20 finger-safe screw terminals enable easy installation and safety. Designed for a broad operating temperature range from -25°C to 60°C for robust industrial use.

Compliant with international standards including EAC, CCC, CSA, IEC, RoHS, and UL certifications. Incorporates a mechanical and electrical interlock for safe reversing motor operation. Ideal for controlling squirrel cage motors, lifts, conveyors, and pumps with AC-3 utilization category.

This Reversing Contactor is especially suited for industrial, automation, manufacturing, HVAC, and commercial applications where reliable motor direction control and safety are paramount. Explore a broad range of contactors and automation control gear with Schneider Electric products at EnvMart.
