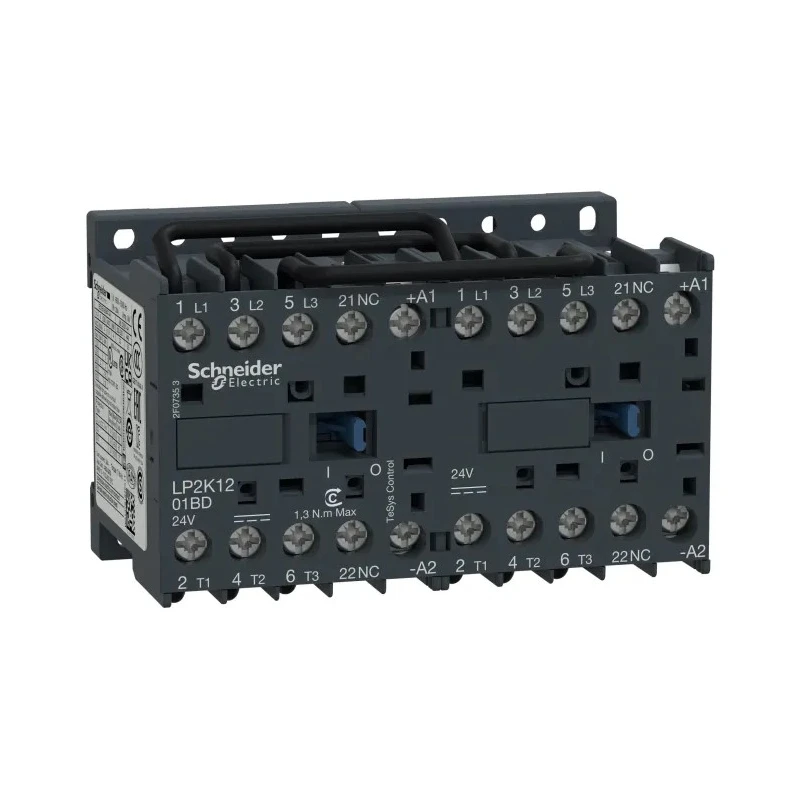

Schneider Electric TeSys K Reversing Contactor 24V dc Coil 3-Pole 12A 4kW 3 NO 690V ac LP2K1201BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 58mm |
| Model | LP2K1201BD |
| Depth | 57mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LP2K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Compact 3-pole design with a 12 A AC-3 contact current rating.
- Supports motor power ratings up to 4 kW at 400 V AC.
- Equipped with 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact.
- Designed for DIN rail mounting with screw terminal connections.
- Operates reliably between -25°C and 50°C ambient temperatures.
- Includes a mechanical interlock and pre-wired reversing circuit for safety and ease of use.
- Complies with IEC, UL, CSA, CCC, EAC, and Marine standards for global applications.
- Compact dimensions of 58 mm length, 57 mm depth, and 90 mm width for limited space installations.
Product Description
Schneider Electric LP2K1201BD is a robust TeSys K series 3-pole Reversing Contactor designed for motor control applications, featuring a 24V dc coil and 12 A contact current rating. It supports motor power up to 4 kW at 400 V AC and operates efficiently in industrial and commercial settings.
This compact device measures 58mm in length, 57mm in depth, and 90mm in width, making it suitable for use where space is limited. The contactor includes 3 normally open main contacts along with 1 normally closed auxiliary contact, facilitating smooth reversing motor control operations.
The product is engineered for DIN rail mounting and uses screw terminals for secure electrical connections. Its operational temperature range extends from -25°C to 50°C, ensuring reliable function in varying environmental conditions.
Equipped with a mechanical interlock and a pre-wired reversing circuit, the LP2K1201BD enhances safety and installation convenience. It meets multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications, ensuring compliance and versatility in global applications.
With a withstand voltage rating of 8kV, the contactor can endure electrical surges and disturbances. Weighing approximately 0.48 kg, it is easy to handle and install.
Common applications include compressors and air-conditioning units within industrial, manufacturing, HVAC, and automation control systems. Its IP20 rating provides basic protection against solid objects and assures touch safety during operation.
Compact 3-pole design with 12 A contact current. DIN rail mounting with screw terminals. Mechanical interlock and pre-wired reversing circuit. Wide operating temperature range from -25°C to 50°C. Complies with a broad range of international standards.
Rated withstand voltage of 8 kV. Lightweight design for easy installation. 24V dc coil control voltage suitable for versatile systems. Designed for motor control tasks such as compressors and air-conditioning units. Explore more Schneider Electric automation and control gear products on EnvMart for your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 12 A.
It supports motor power ratings up to 4 kW at 400 V AC.
The coil voltage for this contactor is 24V DC.
This model measures 58 mm in length, 57 mm in depth, and 90 mm in width.
It is designed for DIN rail mounting with screw terminal connections.
The operational temperature range extends from -25°C to 50°C.
This unit features a 3-pole design.
It includes a mechanical interlock and a pre-wired reversing circuit for safety and ease of use.
It complies with IEC, UL, CSA, CCC, EAC, and Marine standards.
It has 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact.
Common applications include compressors and air-conditioning units within industrial and automation control systems.
The rated withstand voltage is 8 kV, allowing it to endure electrical surges and disturbances.
