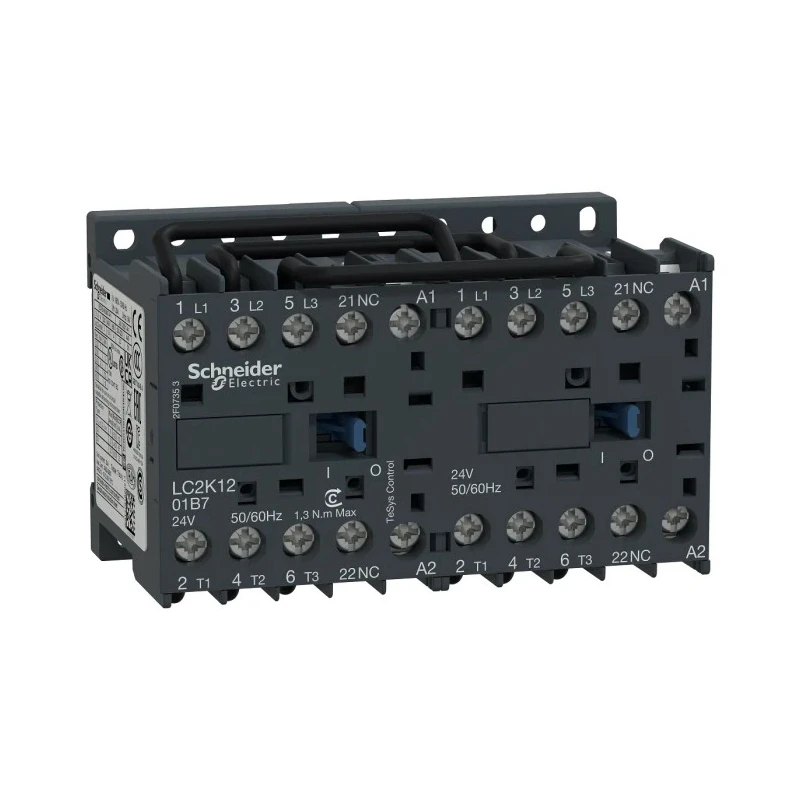

Schneider Electric LC2K Reversing Contactor 24V AC Coil, 3-Pole, 12 A, 5.5 kW, 3 NO Auxiliary Contacts LC2K1201B7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 58mm |
| Model | LC2K1201B7 |
| Depth | 57mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2K |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
| Ue Rated Voltage Power circuit | 690 V AC 50/60 Hz, Signalling circuit |
Key Features
- The contactor features a 24V AC coil voltage for reliable operation.
- It has a current rating of 12 A and supports up to 5.5 kW power at 690V AC.
- The device comprises 3 NO (normally open) main contacts and 1 NC auxiliary contact.
- Mounting is designed for DIN rail installation, with screw-type terminals for secure connections.
- It operates efficiently in temperatures ranging from -25°C to 50°C.
- The contactor conforms to UL and CSA standards for safety and performance.
- Applications include motor control, reversing motors, and resistive load switching in industrial and automation contexts.
Product Description
Schneider Electric LC2K1201B7 is a Reversing Contactor featuring a 24V AC coil voltage, designed for motor control and resistive load applications. This 3-pole contactor supports high power ratings of up to 5.5 kW at 690V AC and a current of 12 A, making it suitable for a range of industrial automation tasks.
The device includes three normally open (3 NO) main contacts alongside a single normally closed (1 NC) auxiliary contact, mounted on a DIN rail for ease of integration. Screw-type terminals ensure secure and reliable wiring connections. It operates within a temperature range of -25°C to 50°C, providing dependable performance in various environments.
Built to comply with UL and CSA standards, this contactor ensures safety and adherence to industry regulations. Its dimensions of 58 mm length, 90 mm width, and 57 mm depth contribute to a compact footprint suitable for tight electrical panels.
The LC2K series contactors are pre-assembled with reversing power busbars and are optimized for applications involving motor reversing and resistive switching loads including AC-4, AC-3, and AC-1 duty categories. This product is part of Schneider Electric’s commitment to sustainable solutions, being designed for disassembly as part of their Better World initiative. Manufactured in France, this component provides reliable and energy-efficient motor control solutions for industrial automation, electrical control gear, and manufacturing sectors.
The contactor coil operates at 24V AC for efficient energizing. Rated for 12 A contact current, handling moderate industrial loads effectively. Provides a power rating of 5.5 kW suitable for a variety of motor control applications.
Mount Type is DIN Rail for convenient panel mounting and installation. Includes one auxiliary contact configured as normally closed (1 NC) for control circuit feedback. Rated for operation at ambient temperatures from -25°C to 50°C for diverse industrial environments.
Compliance with UL and CSA safety standards ensures reliable and approved use. Compact size optimizes space within control cabinets, aiding efficient electrical panel layouts. Applicable in resistive and motor control load switching for electrical automation systems.
Explore more from Schneider Electric and related automation products on EnvMart for industrial automation, control solutions, and electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 5.5 kW at a maximum operating voltage of 690V AC.
The contactor operates with a coil voltage of 24V AC.
It has dimensions of 58 mm in length, 90 mm in width, and 57 mm in depth.
This unit features 3 poles (3P) for its main contacts.
It includes one normally closed (1 NC) auxiliary contact.
The operational current rating is 12 A.
It operates efficiently within a temperature range of -25°C to 50°C.
It is designed for DIN rail mounting, facilitating easy installation.
This contactor complies with UL and CSA standards for safety and performance.
It is suitable for motor control, reversing motors, and resistive load switching in industrial settings.
The contactor features screw-type terminals for secure connections.
This product is manufactured in France.
