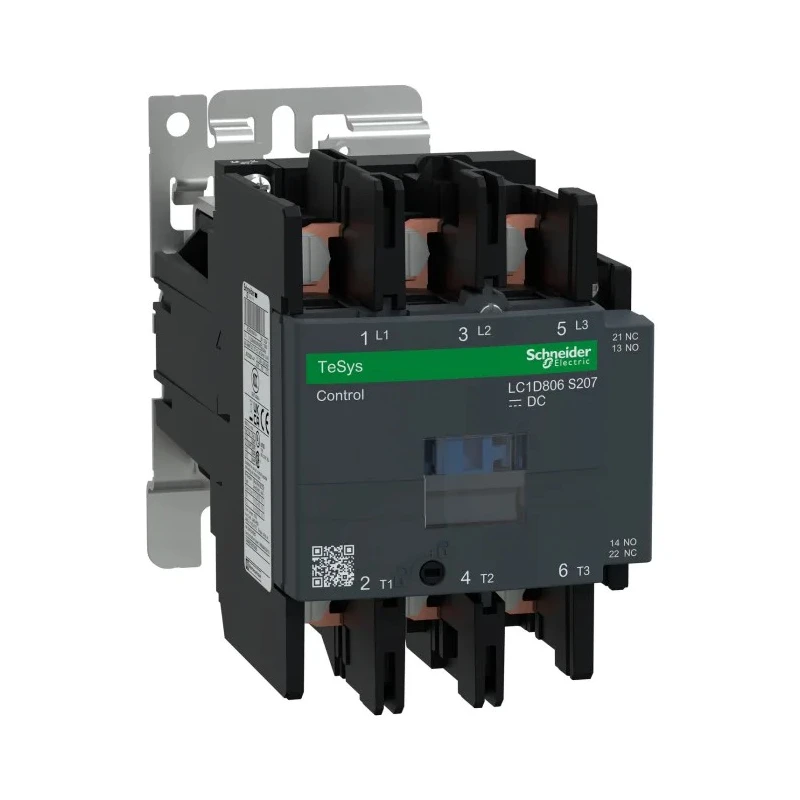

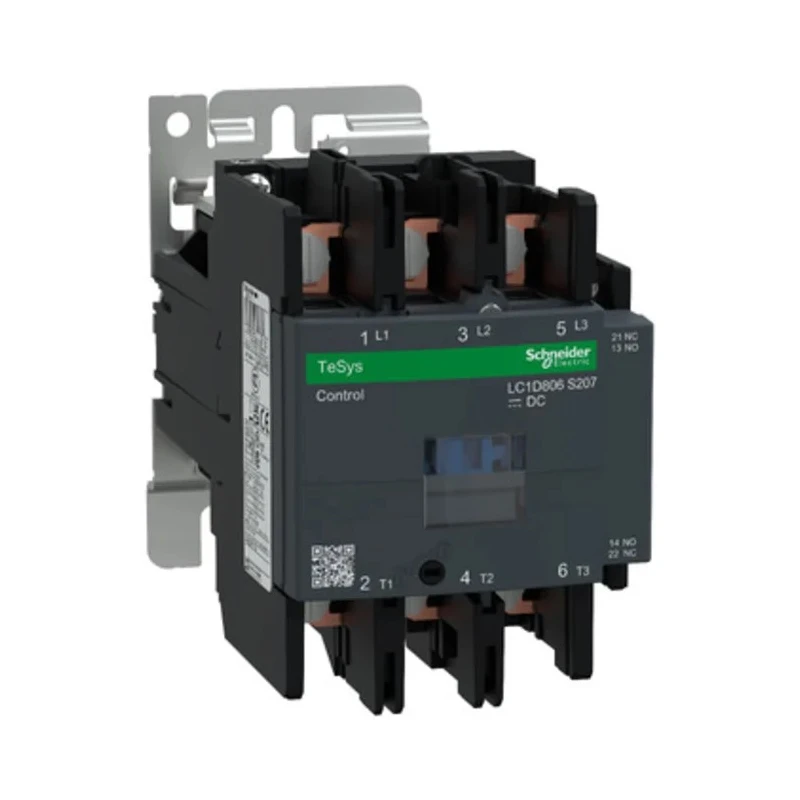

Schneider Electric TeSyS D Reversing Contactor 72V DC Coil 3-Pole 80A 45kW 110V LC1D806SWS207
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 127mm |
| Model | LC1D806SWS207 |
| Depth | 186mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 45kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 1kV |
| Coil Voltage | 72V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 110V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Features a robust TeSyS D series design for high reliability in industrial use.
- Equipped with 3 NO main contacts and 1 NO/1 NC auxiliary contact configuration.
- DIN rail mountable for easy installation and compact setup.
- Operates within -40°C to 60°C temperature range ensuring performance in harsh environments.
- Rated for 1kV contact voltage to support various high voltage applications.
- Constructed for long mechanical and electrical life cycles in automation systems.
- Includes lug ring terminals for secure electrical connections.
- Conforms to EN, IEC, and UL standards for safety and quality assurance.
Product Description
Schneider Electric LC1D806SWS207 is a highly reliable TeSyS D series reversing contactor with a 72V DC coil designed specifically for motor control and reversing operations in automation and industrial applications. It is engineered to handle contact currents up to 80A, supporting power ratings up to 45 kW at 110V control voltage.
This contactor features a 3-pole design with 3 normally open (NO) main contacts along with 1 auxiliary contact configured as 1 NO and 1 NC, delivering versatile control options for complex motor circuits. It is mounted on a DIN rail, which simplifies installation while maintaining a compact footprint.
The operating temperature range from -40°C to 60°C and degree of protection IP20 ensure reliable performance even in demanding industrial environments. The contactor is rated for contact voltages up to 1kV and complies with internationally recognized standards including EN, IEC, and UL, providing assurance of quality and safety.
The Schneider Electric LC1D806SWS207 contactor includes lug ring terminals for secure and efficient wiring. Its compact dimensions of 127mm length, 85mm width, and 186mm depth optimize panel space without compromising functionality.
Applications of this Reversing Contactor span industrial motor control systems, manufacturing automation, HVAC control, and water treatment plants. It supports seamless motor reversing capabilities, contributing to automation efficiency and system reliability.
Robust TeSyS D series construction for enhanced durability. 3 NO main contacts with auxiliary 1 NO/1 NC contacts for control versatility. DIN rail mount type ensures easy integration into control panels. Wide ambient temperature range for reliable operation in diverse conditions.
Rated contact voltage and current ensure suitability for heavy-duty applications. Compact dimensions optimize use of panel space without limiting performance. Complies with EN, IEC, and UL standards for industrial safety and quality.
Lug ring terminal for secure electrical connections. Explore more Schneider Electric automation and control gear products on EnvMart to enhance your industrial and manufacturing setups with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D806SWS207 reversing contactor has a power rating of 45 kW.
This unit can handle a maximum contact current of 80A.
It operates with a coil voltage of 72V DC.
The operational temperature range for this model is from -40°C to 60°C.
This contactor features a 3-pole design.
It is designed for DIN rail mounting, allowing for easy installation.
The contactor includes 3 normally open (NO) main contacts and 1 auxiliary contact configured as 1 NO and 1 NC.
The dimensions are 127mm in length, 85mm in width, and 186mm in depth.
It conforms to EN, IEC, and UL standards for safety and quality assurance.
It includes lug ring terminals for secure electrical connections.
This reversing contactor is intended for motor control, manufacturing automation, HVAC control, and water treatment plants.
The rated contact voltage for this model is up to 1kV.
