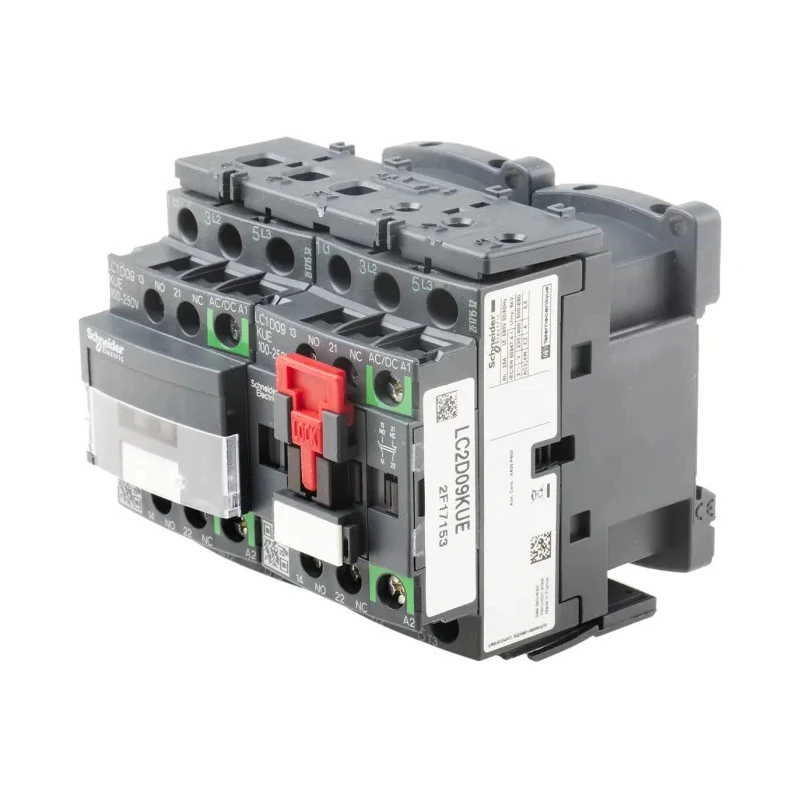

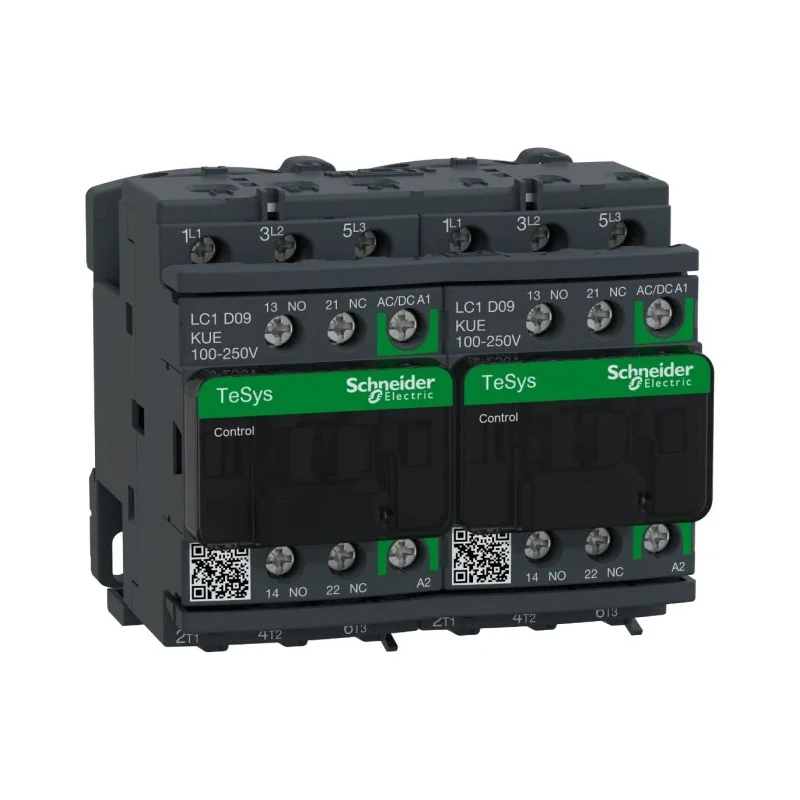

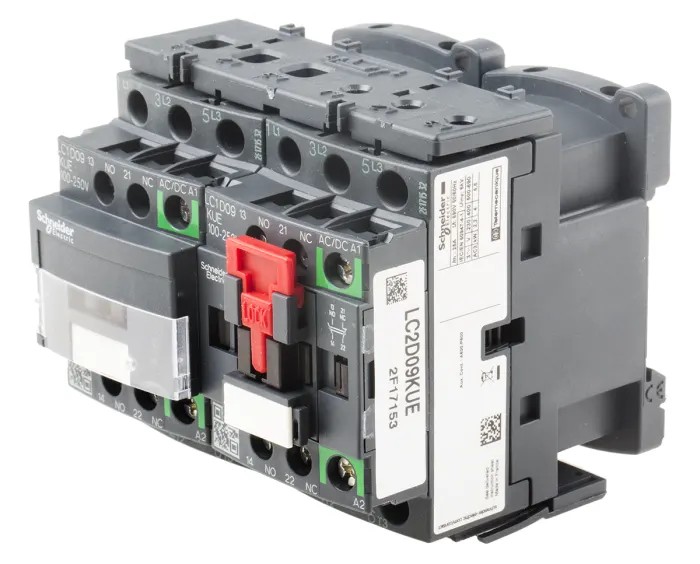

Schneider Electric TeSys D Reversing Contactor, 230V AC Coil, 3-Pole, 9 A, 5.5 kW 250V, 3 NO, 690V AC LC2D09KUE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 90mm |
| Model | LC2D09KUE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 250V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at 230V AC coil voltage with 3 poles configuration.
- Rated for 9 A contact current and 5.5 kW power rating at 250V.
- Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts (2 NO/2 NC).
- Supports mounting on DIN rail with IP20 finger-safe screw connections.
- Built for industrial use with operating temperature range from -25°C to 60°C.
- Designed for easy installation with pre-installed interlock and multiple accessories compatibility.
- Meets international standards including CCC, CSA, EAC, IEC, UL, and RoHS compliance.
Product Description
Schneider Electric LC2D09KUE TeSys D reversing contactor features a 230V AC coil and 3-pole configuration rated at 9 A, with a power rating of 5.5 kW at 250V. It is engineered for reliable motor control and resistive load applications in various industrial environments.
Built into the TeSys D series, this contactor is preassembled with a reversing power busbar and includes built-in auxiliary contacts for enhanced switching capability. The device ensures high mechanical and electrical durability suitable for demanding industrial use.
The contactor is designed for installation on DIN rails and includes screw connections that are IP20 finger-safe with markings conforming to both North American and international standards. It supports motor control, reversing functions, and resistive loads within an operating temperature range of -25°C to 60°C.
Standards and approvals for this product include CCC, CSA, EAC, IEC, UL, and RoHS. Schneider Electric's Better World compliance ensures the product is designed for disassembly and sustainability.
Operates with a coil voltage of 230V AC and provides 9A operational current. Features 3 normally open contacts and 2 auxiliary contacts (2 NO/2 NC) for flexible control applications. Compact dimensions of 90mm length, 86mm width, and 77mm depth make it suitable for varied panel installations.
Mechanical and electrical reliability with linear translation for double pole breaking. Applications include motor control for squirrel cage motors, lifts, conveyors, compressors, pumps, mixers, and HVAC systems. Pre-installed interlock ensures safe simultaneous operation prevention between contactors.

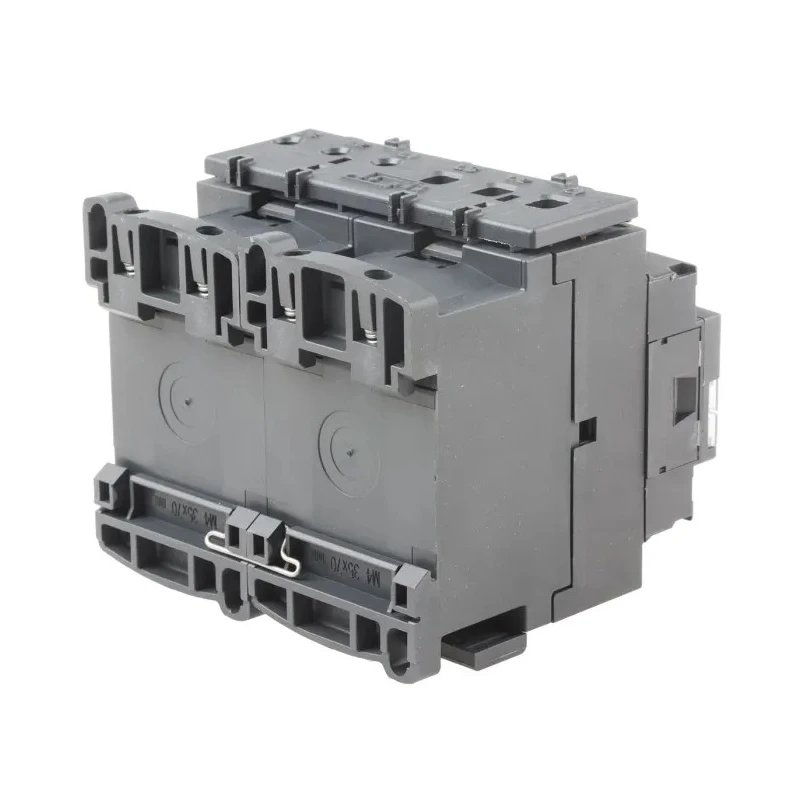

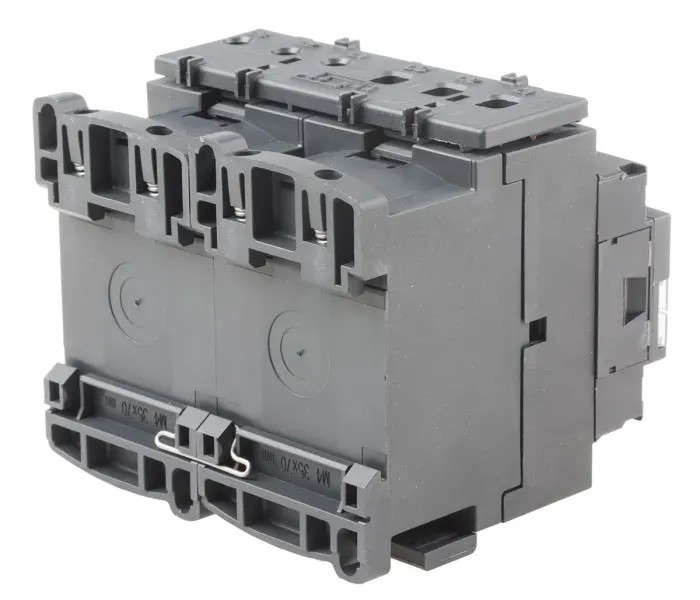

Easy mounting options via DIN rail or screws enhance installation efficiency.
This Reversing Contactor is ideal for industrial automation, manufacturing, HVAC control, and electrical automation systems requiring robust and compliant motor control solutions. Explore the Schneider Electric category for matching automation and control gear products at EnvMart.
