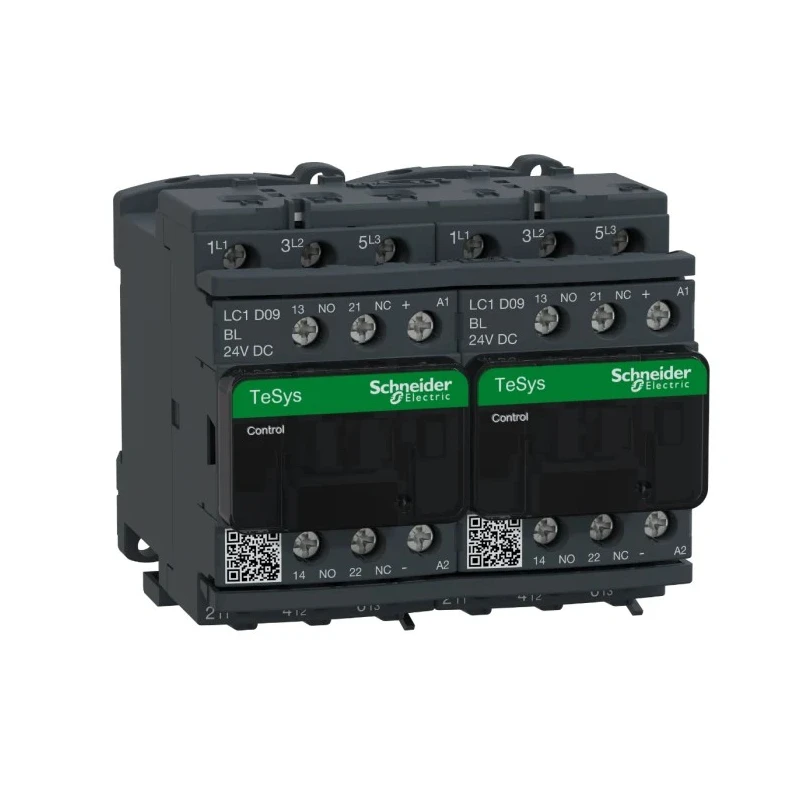

Schneider Electric Reversing Contactor 24V dc Coil, 3-Pole, 9 A, 4 kW, 690V ac LC2D09BL

Schneider Electric LC2D09BL is a robust Reversing Contactor featuring a 24V dc coil and a 3-pole switching configuration, capable of controlling motor direction and resistive loads efficiently. It supports a contact current of 9 A and motor power rating up to 4 kW at 380 to 400V AC, with insulation rated for 690V ac, making it suitable for various industrial automation applications.

This contactor operates within an ambient temperature range of -25°C to +50°C and is designed for mounting on plates or DIN rails to fit compact control panels. The screw clamp terminals ensure reliable connection for conductors sized 1 to 4 mm², providing ease of installation and maintenance.

Equipped with 2 auxiliary contacts configured as 2 NO/2 NC, this model allows additional control circuit options. The built-in diode suppressor minimizes coil peak disturbances in the DC control circuit, enhancing operational stability. It fulfills multiple certifications and standards such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring compliance with safety and quality requirements.

Designed with sustainability in mind, it is marked as a 'Better World Product' for ease of disassembly, supporting environmental responsibility. The contactor withstands harsh environmental conditions typically encountered in electrical installations and automation racks.

Applications for the LC2D09BL include reversing small to medium three-phase motors in conveyor systems, motor control in marine and offshore switchboards, and resistive heating elements in process equipment. Its compact 90 mm width makes it ideal for starter panels and automation racks where space economy is important.

Operates on 24V dc coil voltage with robust 9A contact current rating. 3-pole design enables safe and reliable motor direction reversing. Supports motor power up to 4 kW at industrial voltages with 690V contact insulation.

Screw clamp terminals accommodate 1 to 4 mm² conductors ensuring secure connections. 2 auxiliary contacts expand control circuit applications. Certified to global safety and quality standards including IEC and UL. Designed for disassembly contributing to environmental sustainability.

Suitable for installation in harsh ambient environments and automation systems. Compact size optimizes panel space in motor control setups. Explore the full range of Schneider Electric automation and control gear products at EnvMart for industrial and commercial applications.
