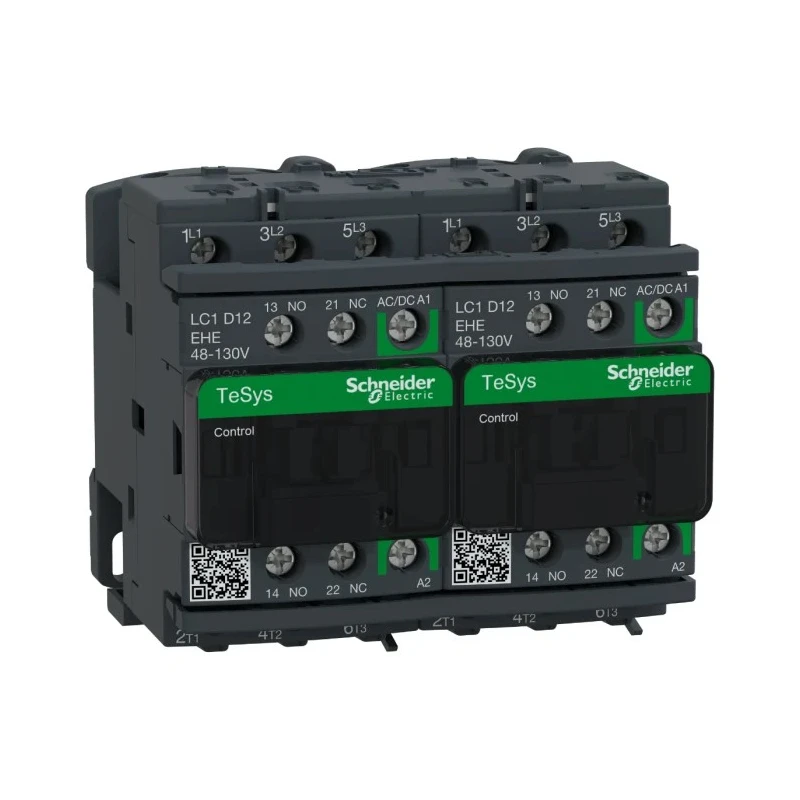

Schneider Electric TeSys D Reversing Contactor, 110V AC/DC Coil, 3-Pole, 12 A, 5.5 kW Power Rating, 130V Control LC2D12EHE

Name: Schneider Electric TeSys D Reversing Contactor, 110V AC/DC Coil, 3-Pole, 12 A, 5.5 kW Power Rating, 130V Control LC2D12EHE
Brand: Schneider Electric
SKU: 203071
Price: 434.82 USD
Availability: InStock



Category Reversing Contactor Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Function	Motor Control, Resistive Load, Reversing
Length	90mm
Model	LC2D12EHE
Depth	77mm
Width	86mm
Mount Type	DIN Rail
Series	TeSys D
Power Rating	5.5kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	110V ac/dc
Normal State Configuration	3 NO
Better World Claim	Designed for Disassembly
Contact Current	12A
Number of Auxiliary Contacts	2
Auxiliary Contact Configuration	2 NO/2 NC
Operational Current Ie	12A
Control Circuit Voltage Uc	130V
Contactor Application	Motor Control, Resistive Load
Pole and Throw Configuration	3PST
Screw connections	IP20 finger-safe terminals with both North American and International terminal markings
AC-1	This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution
AC-3	This applies to squirrel cage motors where breaking occurs while the motor is running
Example of use	all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units

Key Features

Equipped with 3 poles and a contact current of 12 A for reliable power switching.
Power rating of 5.5 kW with 130V control circuit voltage for versatile operation.
Features 3 normally open (NO) contacts and 2 auxiliary contacts configured as 2 NO and 2 NC.
Designed for DIN rail mounting with screw terminals providing IP20 finger-safe protection.
Supports operation temperatures from -25°C to 60°C for industrial environments.
Built-in auxiliary contacts and pre-installed interlock ensure enhanced switching capabilities and safe operation.
Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL for quality assurance.

Product Description

Schneider Electric LC2D12EHE Reversing Contactor from the TeSys D series features a 110V AC/DC coil voltage and is designed for motor control and resistive load applications, offering a robust solution for industrial automation.

This 3-pole contactor supports a rated contact current of 12 A and a power rating of 5.5 kW, with the control circuit operating at 130V. It includes 3 normally open contacts (3 NO) and 2 auxiliary contacts with a 2 NO/2 NC configuration, providing flexible control options.

The contactor is designed for easy installation on DIN rails and screw mounting, equipped with IP20 finger-safe terminals marked for both North American and international standards.

Operating temperature ranges from -25°C to 60°C make it suitable for demanding industrial environments. The TeSys D reversing contactors utilize linear translation movement for double breaking of poles and include a pre-installed interlock to prevent simultaneous closing of conflicting circuits.

Compliant with a wide range of international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, this contactor ensures safety and reliability. It is ideal for motor controls in applications including lifts, conveyors, pumps, compressors, air conditioning units, and similar industrial machinery.

Equipped with built-in auxiliary contacts for additional switching capacity. Pre-installed mechanical and electrical interlock for safe reversing operations. Screw connections enable secure and durable wiring. Designed for quick setup and compliance with global standards.

Can be panel or DIN rail mounted for versatile installation options. As a Better World product, this Reversing Contactor is designed for disassembly, contributing to sustainability goals in industrial operations. Explore a wide range of Schneider Electric automation and control gear solutions on EnvMart for reliable industrial system integration.
