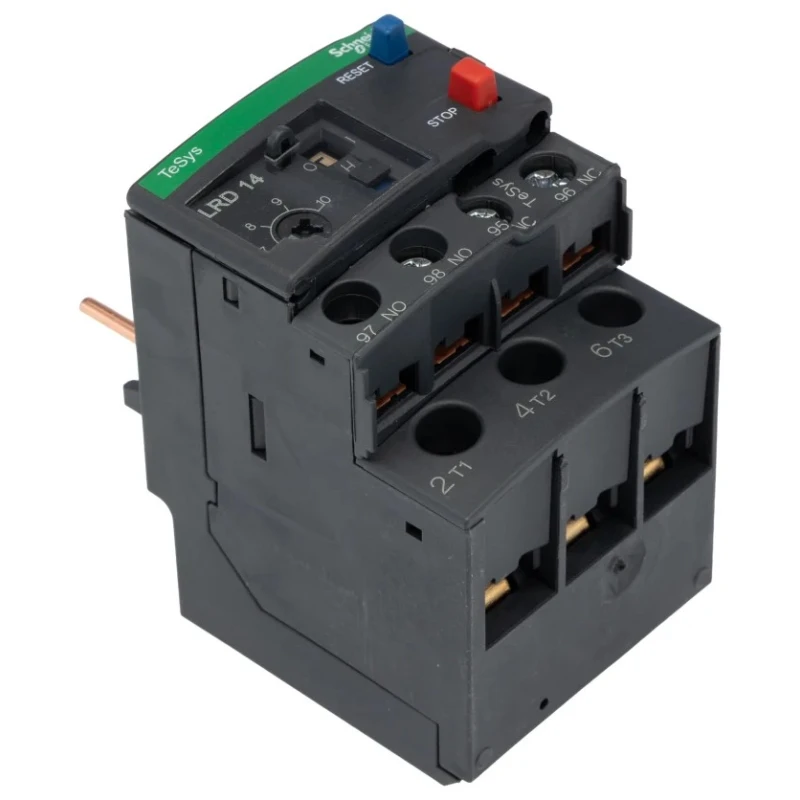

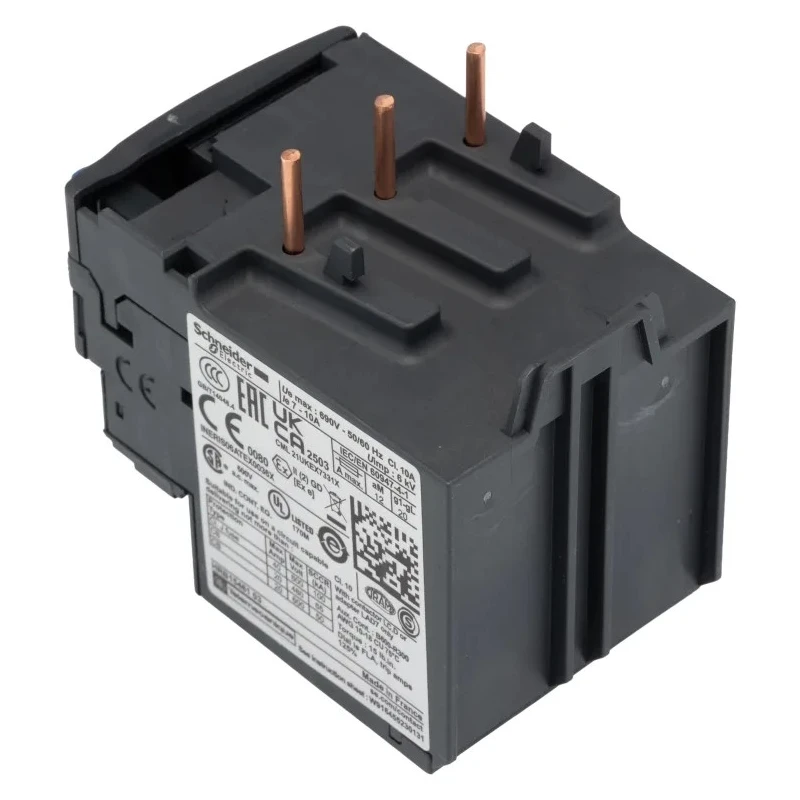

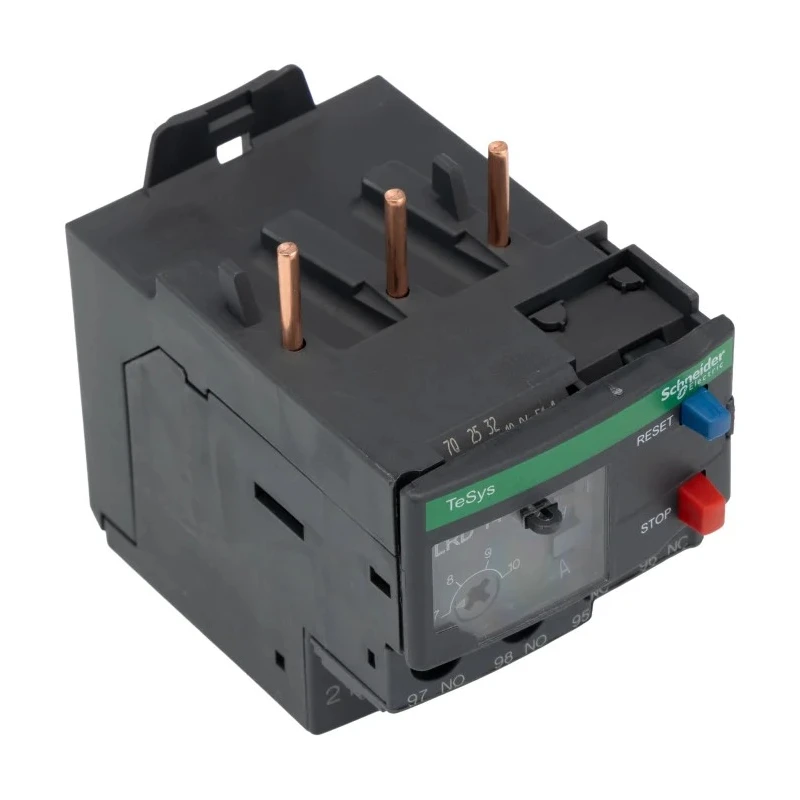

Schneider Electric Thermal Overload Relay 7 to 10A Adjustable Current 690V AC Power Rating 4 kW 3 Pole LRD14
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD14 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 10A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 10, 7A |
| Adjustable Current Range | 7 → 10 A |
| • Protection | motor overload, stalling, loss of phase |
| Telemecanique Overload Relay NO/NC, 7 → 10 A F.L.C, 10 A Contact RatingBrand | Telemecanique |
| Schneider Electric DOL Starter, DOL, 7.5 kW, 500 V ac, IP657Brand | Schneider Electric |
Key Features
- Adjustable thermal protection from 7 to 10 amperes current range ensures optimal motor safety.
- Supports operational voltage up to 690 volts AC for industrial applications.
- Compact design with dimensions 66mm (L) x 45mm (W) x 70mm (D) fits limited panel space.
- Equipped with 1 normally open and 1 normally closed contact for reliable operation.
- Automatic and manual reset method provides flexibility in system control.
- Screw terminal type ensures vibration-proof connections and easy installation.
- Rated for power motors up to 4 kW, suitable for various machinery protections.
- Wide operating temperature range from -20°C to 60°C for harsh environment use.
Product Description
Schneider Electric LRD14 is a Thermal Overload Relay designed for reliable motor protection in industrial automation systems. Featuring an adjustable current setting range of 7 to 10 A and a power rating of 4 kW at 690 volts AC, this relay safeguards electric motors from overloads, phase failures, and current spikes.
The unit includes one normally open and one normally closed auxiliary contact to support control circuitry. Its compact dimensions (66 mm length, 45 mm width, 70 mm depth) allow installation directly under contactors with options for plate or DIN-rail mounting. The relay utilizes screw clamp terminals that resist vibrations, ensuring secure and stable electrical connections.
Schneider Electric’s LRD14 offers both automatic and manual reset capabilities, making it suitable for diverse industrial applications such as assembly lines, packaging machinery, generators, medical systems, and automatic gates. The device operates effectively within a temperature range from -20°C to 60°C and has an IP20 touch-proof rating for user safety.
This overload relay is UL, IEC, EC, EAC, DNV-GL, and CSA approved, complying with rigorous international standards. The rugged plastic housing provides durability and shock resistance to prevent accidental disconnections, enhancing operational reliability in demanding environments.
Adjustable current range from 7 to 10 amperes for precise overload protection. Rated for motor power up to 4 kW at operational voltage of 690V AC. Compact, vibration-resistant design with screw clamp terminals. Automatic and manual reset for versatile system integration.
Includes 1 NO and 1 NC contact configurations. Wide operating temperature from -20°C to +60°C. IP20 protection ensuring finger-safe operation. Complies with multiple international standards and approvals.
Ideal for industrial, manufacturing, HVAC, and automation control applications, this relay protects motors from overloads and phase loss, reducing downtime and maintenance costs. Its ease of adjustment and robust construction make it a dependable component for electrical control panels.
Explore a wide range of Schneider Electric overload relays and related automation control products on EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this thermal overload relay is from 7 to 10 amperes.
This model has a power rating of 4 kW at an operational voltage of 690 volts AC.
The dimensions of this unit are 66 mm in length, 45 mm in width, and 70 mm in depth.
It utilizes screw clamp terminals, which provide vibration-proof connections for secure installation.
The relay operates effectively within a temperature range from -20°C to 60°C.
This model includes one normally open (NO) and one normally closed (NC) auxiliary contact.
The IP rating of this thermal overload relay is IP20, ensuring touch-proof operation.
The LRD14 offers both automatic and manual reset methods for flexibility in system control.
This unit can be mounted directly under contactors, with options for plate or DIN-rail mounting.
It protects against motor overload, stalling, and loss of phase.
The maximum contact voltage for this thermal overload relay is 690 volts AC.
The country of origin for this thermal overload relay is France.
