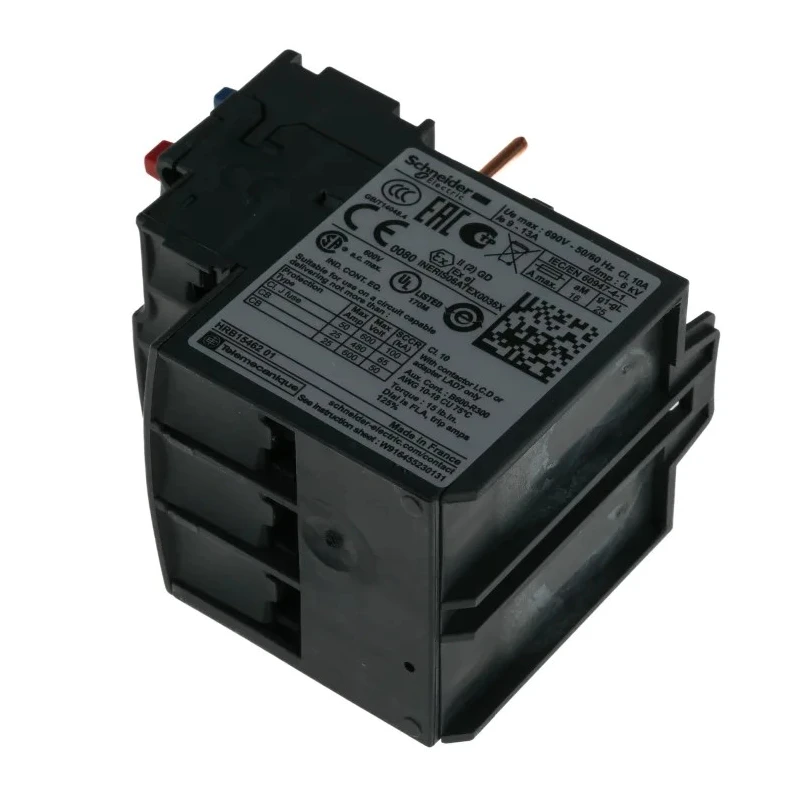

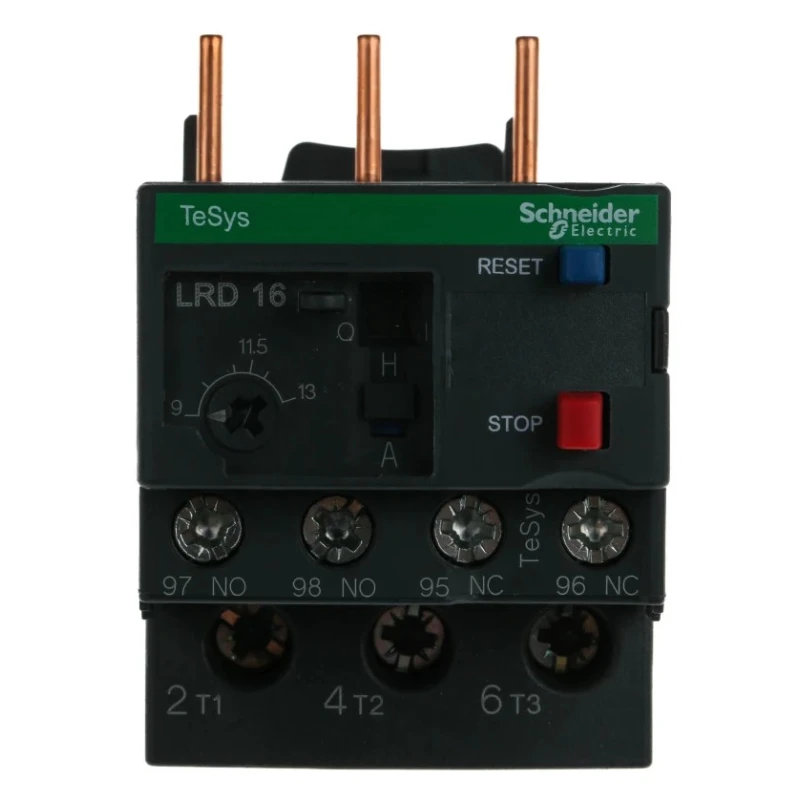

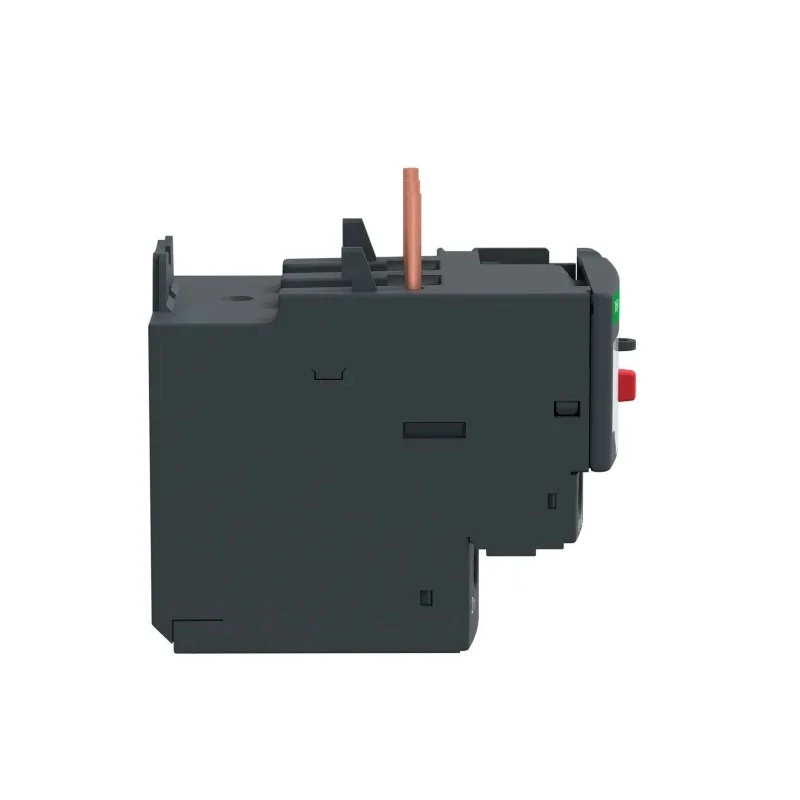

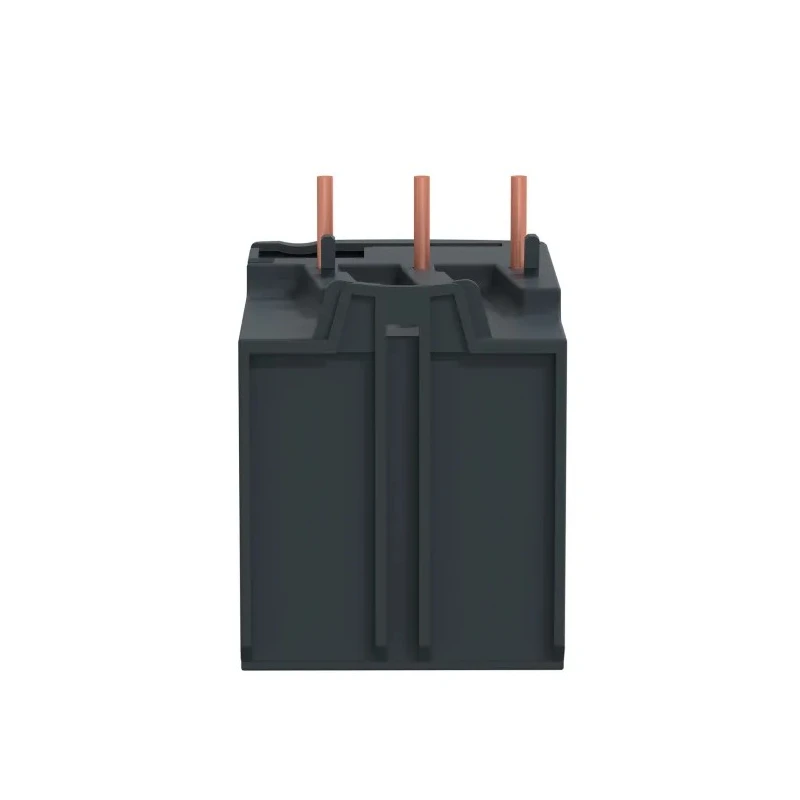

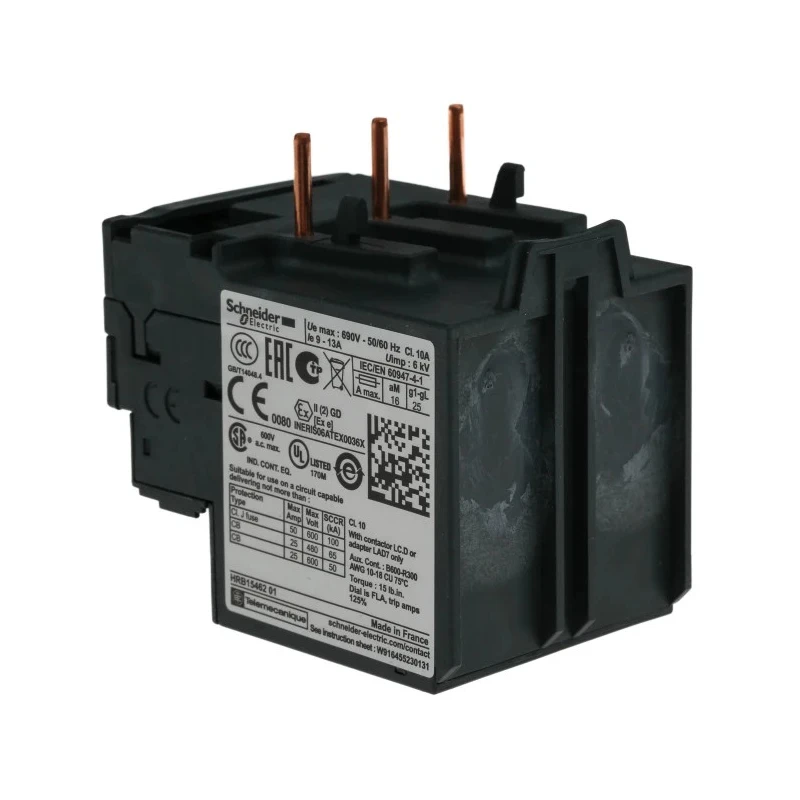

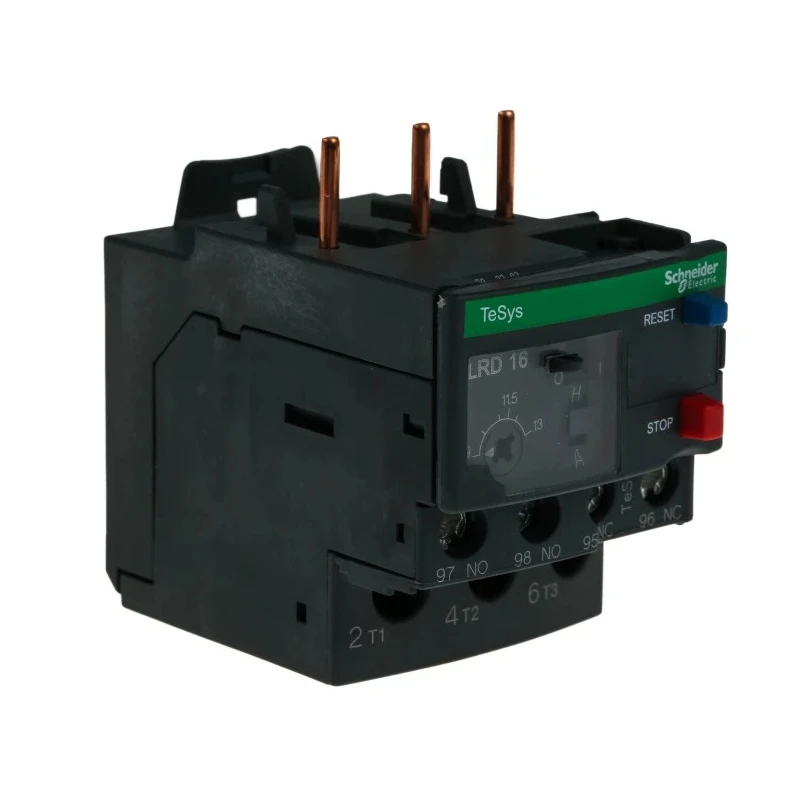

Schneider Electric Thermal Overload Relay 1 NO/1 NC 13A 9-13A Adjustable Current Range 5.5kW 690V AC LRD16
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD16 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 13A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 13, 9A |
| Adjustable Current Range | 9 → 13 A |
| Telemecanique Overload Relay NO/NC, 9 → 13 A F.L.C, 13 A Contact RatingBrand | Telemecanique |
Key Features
- Adjustable current range from 9 to 13 A ensures precise protection.
- Power rating of 5.5 kW suitable for various industrial motors.
- Screw terminal type for secure and durable electrical connections.
- Automatic and manual reset methods enhance operational flexibility.
- Operating temperature range from -20°C to 60°C supports various environments.
- Compact dimensions (66mm length, 45mm width, 70mm depth) facilitate easy mounting.
- Compatible with 690V AC supply voltage ensuring broad usability.
- 1 NO plus 1 NC auxiliary contacts provide versatile integration options.
Product Description
Schneider Electric LRD16 Thermal Overload Relay is designed to protect motors from thermal overload by monitoring current with an adjustable range from 9 to 13 A and rated for 13 A contact current. This relay supports motor power up to 5.5 kW and operates on a supply voltage of 690V AC. It features one normally open (NO) and one normally closed (NC) auxiliary contact for enhanced control and signaling.
The product dimensions measure 66mm in length, 45mm in width, and 70mm in depth allowing compact installation in electrical panels. The device is rated with IP20 for protection and operates reliably within a temperature range of -20°C to +60°C, making it suitable for Industrial, Automation, HVAC, and Motor Control applications.
The LRD16 relay incorporates screw terminal connections for secure wiring and supports both automatic and manual reset methods for operational ease. Its thermal protection safeguards motors against excessive current, preventing damage and downtime.
Adjustable current setting from 9 to 13 A for precise overload protection. Power rating of 5.5 kW appropriate for various induction motors. Direct mounting on contactors streamlines installation processes. Dual auxiliary contacts (1 NO and 1 NC) enhance compatibility with other relay control circuits.
Robust design suitable for industrial and commercial motor protection needs.
Commonly used in manufacturing facilities, water treatment plants, HVAC systems, and other industrial settings, this Schneider Electric Thermal Overload Relay ensures motor safety and operational continuity. The product originates from France, assuring adherence to stringent quality standards and certifications including UL, CSA, IEC, and more.
Explore EnvMart for a comprehensive range of reliable Schneider Electric relays and motor protection devices tailored to diverse industrial and commercial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this thermal overload relay is from 9 to 13 A, allowing for precise protection of motors.
This model has a power rating of 5.5 kW, making it suitable for various industrial motors.
The dimensions of this relay are 66 mm in length, 45 mm in width, and 70 mm in depth, facilitating easy mounting in electrical panels.
It operates on a supply voltage of 690V AC, ensuring broad usability in industrial applications.
This model supports both automatic and manual reset methods, enhancing operational flexibility.
The relay features one normally open (NO) and one normally closed (NC) auxiliary contact, providing versatile integration options.
The operating temperature range for this thermal overload relay is from -20°C to +60°C, making it suitable for various environments.
It uses screw terminal connections for secure wiring, ensuring durable electrical connections.
The LRD16 has an IP20 rating, indicating its level of protection against solid objects.
This relay is commonly used in manufacturing facilities, water treatment plants, HVAC systems, and other industrial settings for motor protection.
The relay contact current rating for this model is 13 A, suitable for various motor applications.
This thermal overload relay is designed for direct mounting on contactors, streamlining installation processes.
