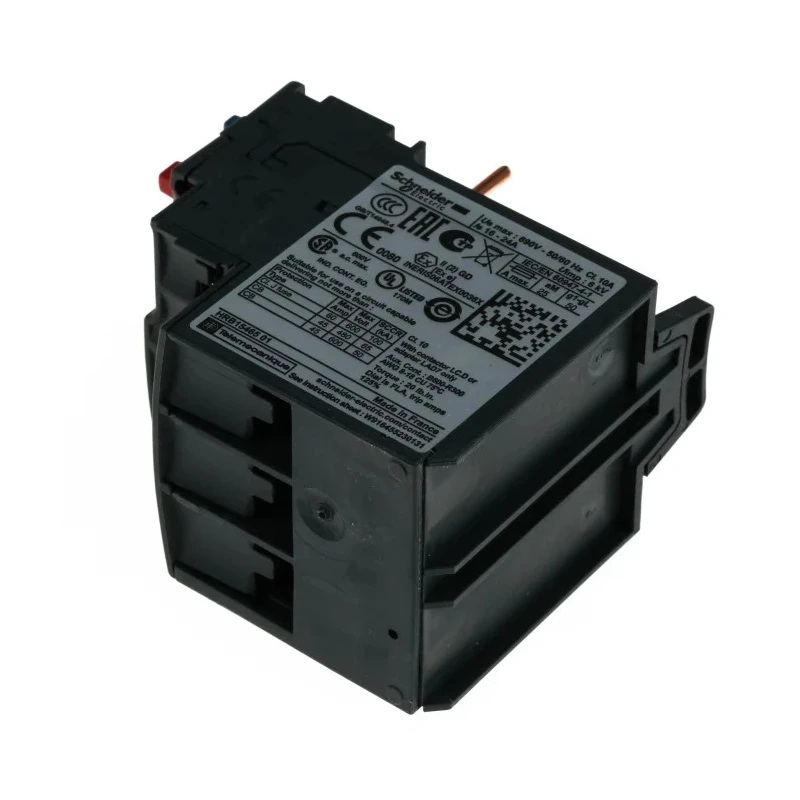

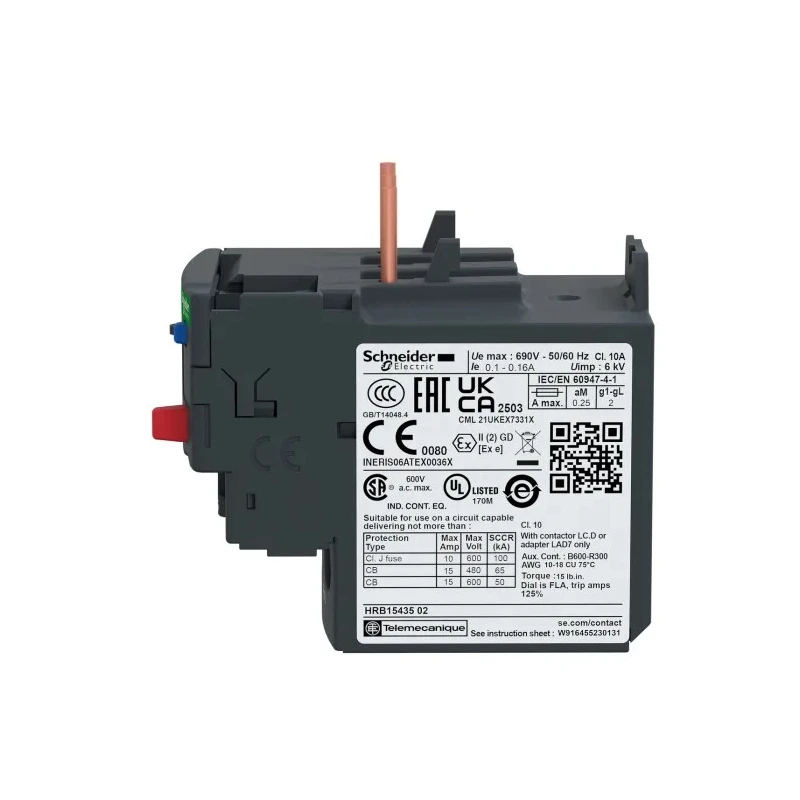

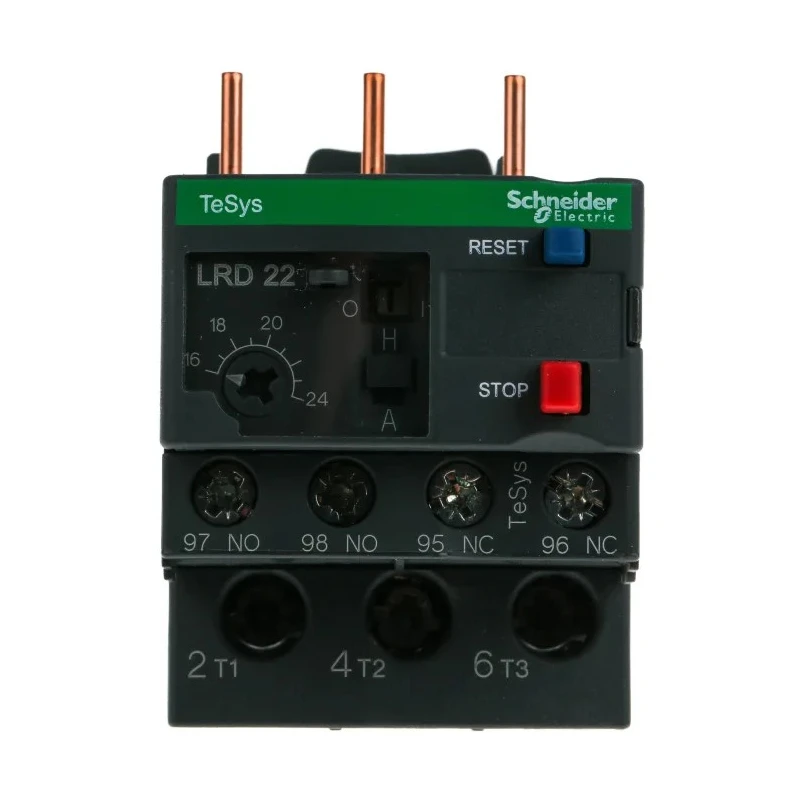

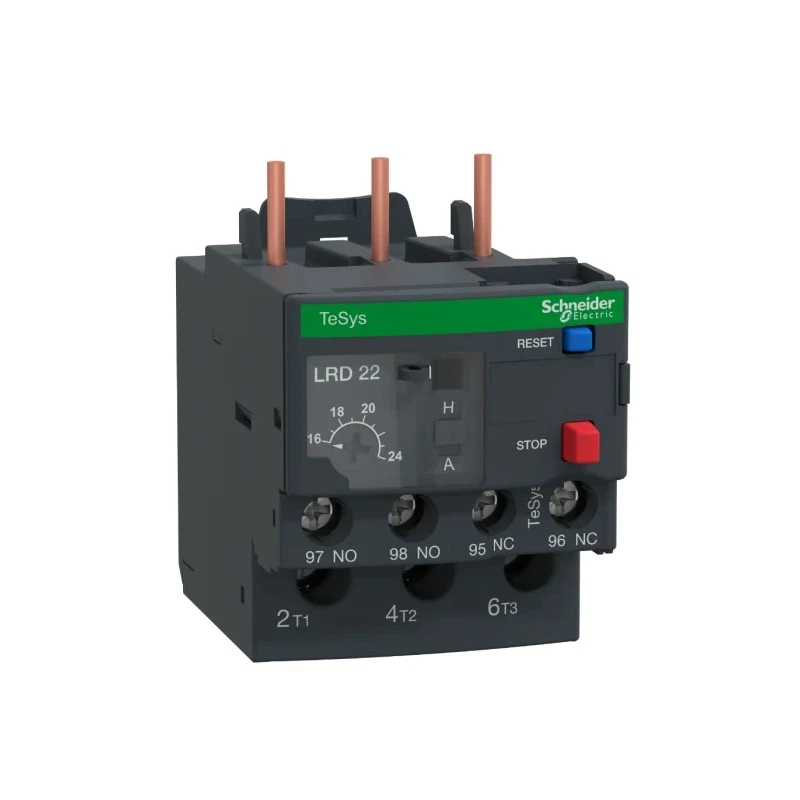

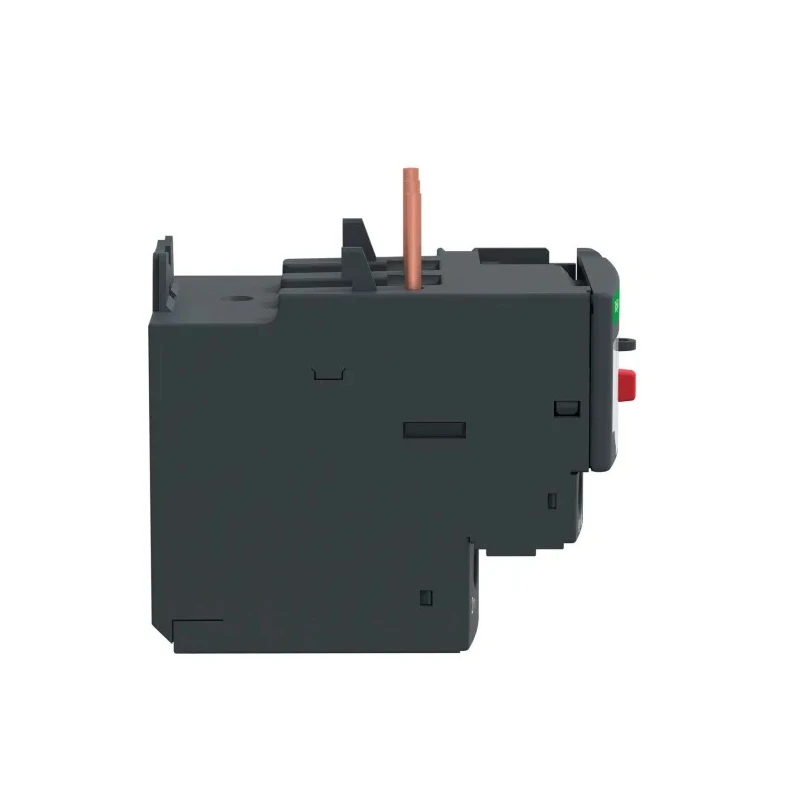

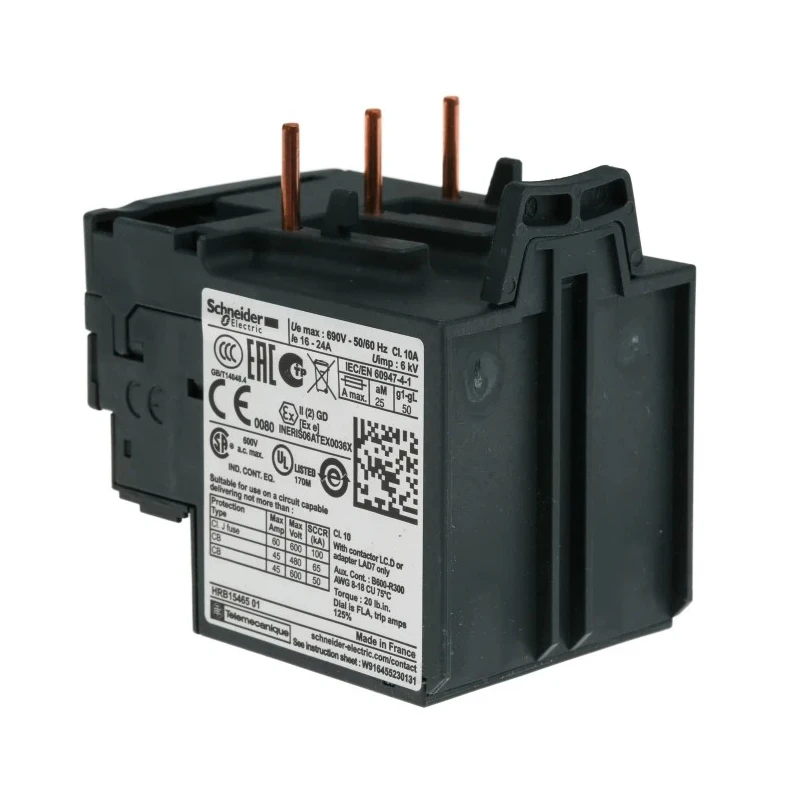

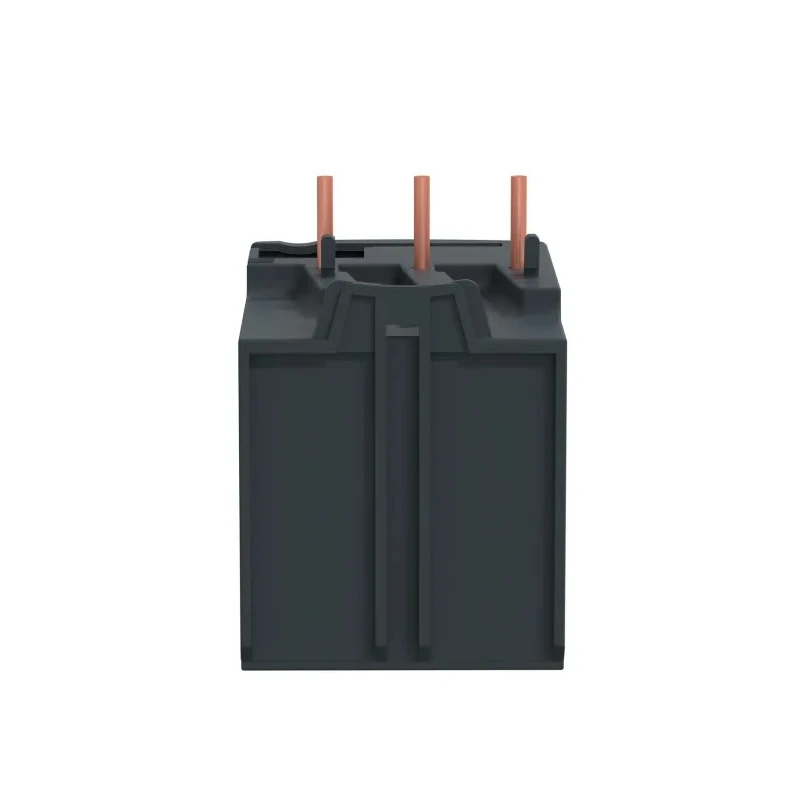

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 16A to 24A FLC, 24A Contact Rating, 15 kW Power Rating, 3 Pole LRD22
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD22 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 24A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 16, 24A |
| Adjustable Current Range | 16 → 24 A |
| Schneider Electric Overload Protection Module for use with 18A SeriesBrand | Schneider Electric |
| Telemecanique Overload Relay, 17 → 25 A F.L.C, 25 A Contact Rating, 15 kWBrand | Telemecanique |
Key Features
- Offers reliable class 10A thermal overload protection.
- Supports both automatic and manual reset methods.
- Equipped with screw terminals for secure connections.
- Compatible with AC and DC electrical networks.
- Designed for direct mounting with 3 poles.
- Operates in temperatures ranging from -20°C to 60°C.
- Compact dimensions measuring 66mm (L) × 45mm (W) × 70mm (D).
- Includes 1 normally open and 1 normally closed contact configuration.
Product Description
Schneider Electric LRD22 Thermal Overload Relay 1 NO/1 NC is engineered for effective motor protection in industrial and automation settings. It supports a full load current (FLC) range of 16 to 24 amperes and has a contact current rating of 24 amperes, suitable for motors up to 15 kW power rating with three-pole configurations.
This relay uses class 10A thermal overload technology to ensure reliable trip operation. It features both automatic and manual reset options for flexible control and user convenience. Screw terminals enable secure and easy electrical connections, supporting compatibility with both AC and DC networks.
Designed for direct mounting in control panels alongside contactors such as LC1D25, LC1D32, and LC1D38, the relay withstands harsh industrial environments with an operating temperature range from -20°C to +60°C. Its robust build and compact size of 66mm length, 45mm width, and 70mm depth enable seamless integration into various electrical assemblies.
The relay provides one normally open (NO) and one normally closed (NC) contact, essential for advanced motor protection and switching applications. It complies with multiple international standards and approvals including CSA, UL, EN/IEC, DNV-GL, and EAC, ensuring high safety and reliability.
Ideal for use in manufacturing, industrial automation, HVAC systems, and motor control centers, the LRD22 ensures enhanced protection and operational efficiency. Offers reliable class 10A thermal overload protection. Supports both automatic and manual reset methods.
Equipped with screw terminals for secure connections. Compatible with AC and DC electrical networks. Designed for direct mounting with 3 poles. Operates in temperatures ranging from -20°C to 60°C. Compact dimensions measuring 66mm (L) × 45mm (W) × 70mm (D).
Includes 1 normally open and 1 normally closed contact configuration. Explore other Schneider Electric products and Thermal Overload Relays at EnvMart for enhanced motor control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thermal overload relay supports a full load current (FLC) range of 16 to 24 amperes.
This model has a power rating of 15 kW, suitable for motor applications.
The relay has compact dimensions of 66mm in length, 45mm in width, and 70mm in depth.
It is equipped with screw terminals for secure electrical connections.
This thermal overload relay operates in temperatures ranging from -20°C to 60°C.
The relay supports both automatic and manual reset methods for user convenience.
It includes 1 normally open (NO) and 1 normally closed (NC) contact configuration.
Yes, it is compatible with both AC and DC electrical networks.
The relay has a contact current rating of 24 amperes.
It is designed for direct mounting in control panels alongside contactors.
It complies with multiple international standards including CSA, UL, EN/IEC, DNV-GL, and EAC.
The relay has an IP rating of IP20, indicating its level of protection against solid objects.
