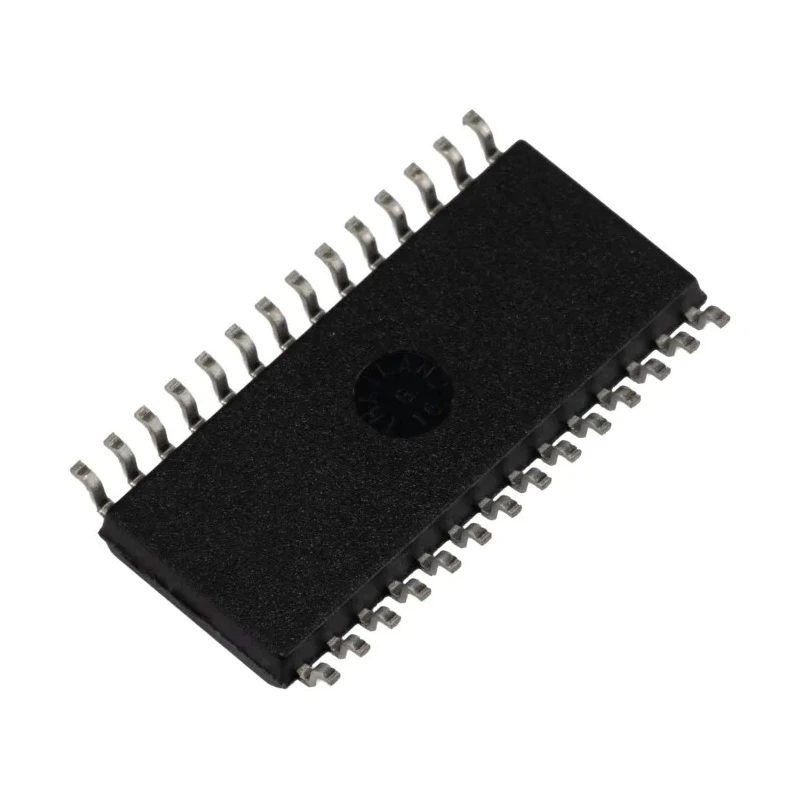

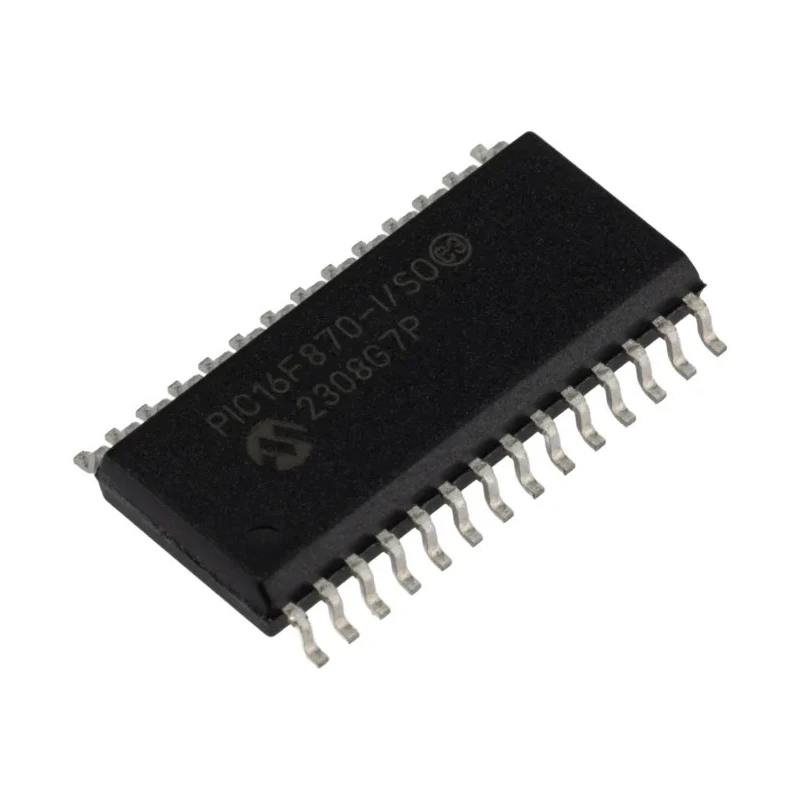

Microchip 8 bit PIC Microcontroller 3.5 kB FLASH, 20 MHz, 28-Pin SOIC PIC16F870-I/SO

Microchip PIC16F870-I/SO 8 bit PIC Microcontroller is built around the Microchip PIC architecture, designed for versatile embedded control applications. It features 3.5 kB of FLASH program memory and operates at up to 20 MHz clock frequency, housed in a compact 28-Pin SOIC surface mount package.

This microcontroller includes 22 programmable input/output pins, allowing flexible interface options for various sensors, actuators, and peripherals. With a data bus width of 8 bits and 128 bytes of on-chip RAM, it efficiently handles typical control tasks.

The integrated 5 x 10-bit ADC channels facilitate precise analog-to-digital conversion for sensor signal acquisition. Furthermore, the device supports three dedicated timers enabling complex timing and control functions, complemented by modules such as Capture/Compare/PWM (CCP) and a Universal Synchronous Asynchronous Receiver Transmitter (USART) for serial communication.

For development and debugging, it offers in-circuit serial programming (ICSP) and debugging (ICD) features, supporting streamlined firmware updates and diagnostics. Operating temperature ranges from -40°C to 85°C ensure reliability in diverse environmental conditions.

Mid-Range core architecture with 35 instruction sets and 8-level hardware stack. 22 programmable I/O pins ideal for a range of embedded system designs. FLASH memory size of 3.5 kB for program storage. 128 bytes RAM and 64 bytes EEPROM for data retention and manipulation.

Five 10-bit ADC channels provide versatile analog input capabilities. Robust timing options with three onboard timers and PWM features. Surface mount SOIC 28-pin package measuring 18.08mm length × 7.59mm width × 2.39mm height.

Compliant with RoHS standards for environmental safety.

This Microchip PIC16F870-I/SO microcontroller is engineered for industrial, automotive, consumer electronics, and embedded control applications requiring efficient 8-bit MCU performance. It enables engineers to develop compact, low-power, and feature-rich systems with ease.
