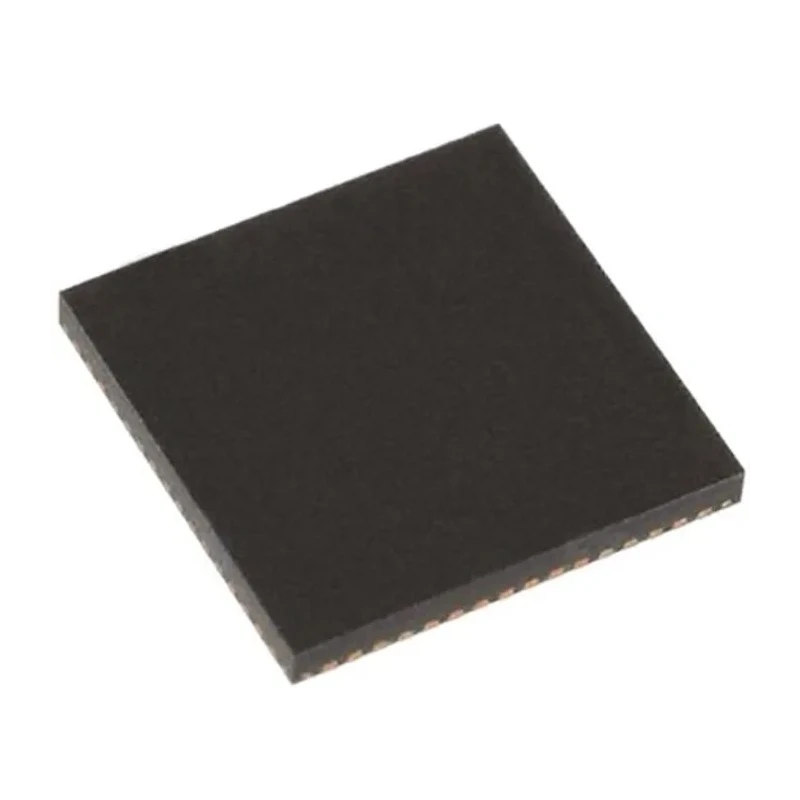

Microchip 16-bit PIC24FJ Microcontroller 32 MHz, 128kB FLASH, 8kB RAM, 64-Pin QFN

Microchip PIC24FJ128GA306-I/MR is a 16-bit PIC microcontroller designed for advanced embedded applications requiring moderate processing power and memory in a small footprint. Operating at a maximum clock frequency of 32 MHz, it offers 128kB of FLASH program memory with 8kB of RAM to support complex firmware and data management needs.

This device is packaged in a 64-pin QFN surface mount configuration with dimensions of 9mm by 9mm and a thickness of 950μm, suitable for high-density PCB layouts and compact designs. Its operating voltage range of 2V to 3.6V enables flexibility for various power supply designs.

The microcontroller integrates 3 analogue comparators alongside 16 channels of 12-bit analog-to-digital converters (ADCs), facilitating accurate sensor interfacing and signal conditioning in industrial, consumer, and automotive control systems. It supports up to 19 timers to manage multiple time-critical tasks with precision.

Engineered to function reliably across a wide temperature range from -40°C to 85°C, it meets the demands of harsh environment applications, although it is not qualified to automotive standards. The RISC (Reduced Instruction Set Computing) architecture underpins its efficient performance.

This Microchip PIC24FJ series microcontroller is RoHS compliant, assuring restricted use of hazardous substances and suitability for environmentally conscious projects. Its versatility makes it ideal for applications in industrial automation, instrumentation, healthcare devices, and consumer electronics requiring reliable 16-bit processing and moderate memory capacity.

This microcontroller features a 16-bit PIC core architecture optimized for embedded system applications. It operates at a maximum frequency of 32 MHz, providing efficient processing capabilities. The device includes 128kB of FLASH program memory and 8kB of RAM for application data storage.

It supports a voltage range from 2V to 3.6V for flexible power supply options. The compact 64-pin QFN surface mount package measures 9mm by 9mm with a height of 950μm. Integrated features include 3 analogue comparators and 16 channels of 12-bit ADC for precise signal processing.

The microcontroller provides up to 19 timers, enhancing its control and timing functions. Designed for robust temperature tolerance, it operates from -40°C to 85°C ambient temperature range. Its RISC instruction set architecture allows high efficiency and speed in embedded applications.
