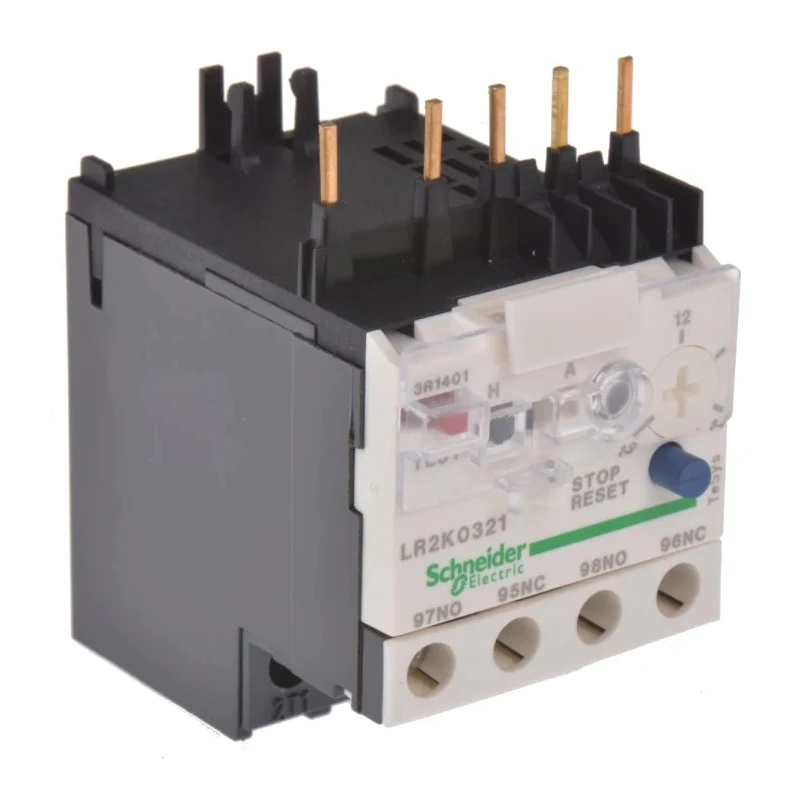

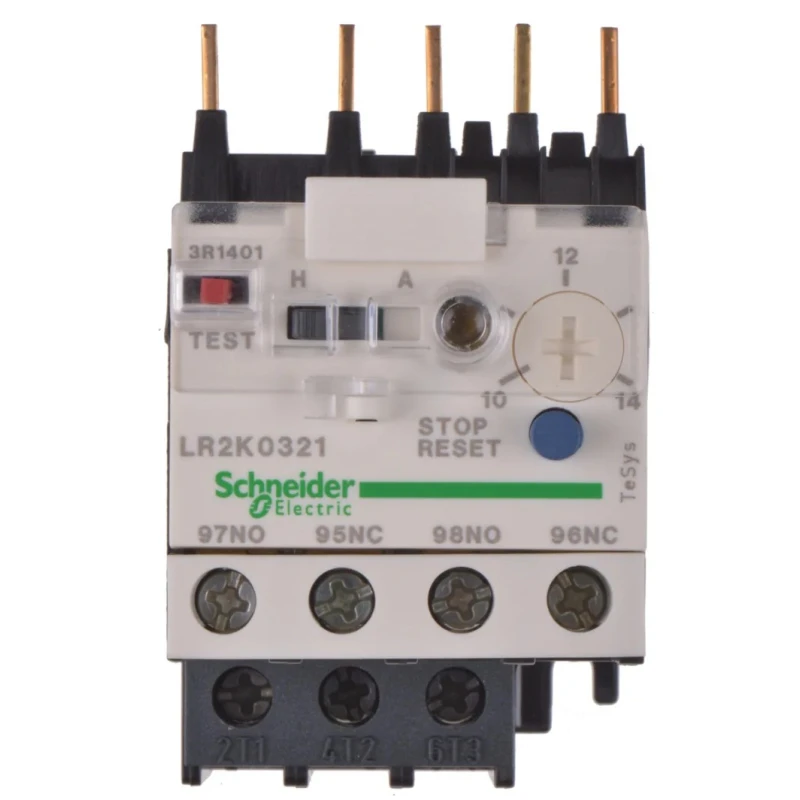

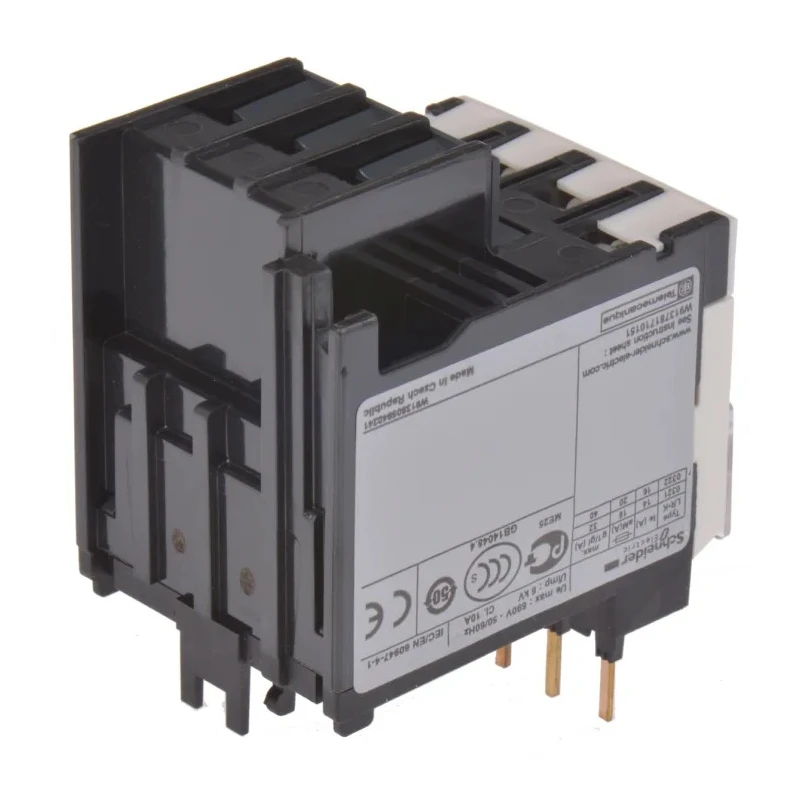

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 10A, 14 A F.L.C, 14A Contact Rating, 100 W Power, 250 V DC LR2K0321
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Length | 116mm |
| Model | LR2K0321 |
| Depth | 65mm |
| IP Rating | IP2X |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LR2K |
| Power Rating | 100W |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 14A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| Control Voltage | 250, 690V dc |
| FLC Motor Rating | 10, 14A |
| Adjustable Current Range | 10 → 14 A |
Key Features
- This relay supports a control voltage of 250 V DC and 690 V AC for versatile electrical applications.
- It features a DIN rail mount type with screw terminal connections for secure installation.
- The current range is adjustable from 10 to 14 amperes, allowing precise motor protection.
- Designed with IP2X protection, it operates reliably within a temperature range of -20°C to 55°C.
- Configuration includes 1 normally open and 1 normally closed auxiliary contact for control circuit integration.
- Automatic and manual reset methods offer operational flexibility and quick recovery after trips.
- Complies with international standards including VDE 0660, UKCA, CSA/IEC 60947, UL, BS 4941, and NFC 63-650.
- Compact dimensions of 116mm length, 45mm width, and 65mm depth facilitate installation in constrained panel spaces.
Product Description
Schneider Electric LR2K0321 Thermal Overload Relay is an industrial-grade device engineered for motor protection in electrical control systems. It features robust construction and precise current range adjustability from 10 to 14 amperes, suitable for a variety of applications requiring dependable overload protection.
The relay includes 3 poles with auxiliary contacts configured as 1 normally open and 1 normally closed, enhancing control circuit flexibility. Installation is user-friendly with a DIN rail mount and screw terminal connections ensuring secure and efficient wiring.
Operating comfortably within a temperature range of -20°C to 55°C and an IP2X protection rating, the relay maintains performance under demanding environmental conditions. Both manual and automatic reset methods are available for operator convenience and controlled operation following motor trips.
Electrical specifications include a 14A relay contact current rating and control voltages of 250 V DC and 690 V AC, supporting broad industrial applications. The power rating is 100 watts, providing reliable thermal protection for motors.
This thermal overload relay enables easy maintenance checks through mechanical operation of testing and reset buttons. Mounting directly beneath contactors is feasible, optimizing control panel space usage. It conforms to rigorous standards such as IEC 947, VDE 0660, CSA, UL, and others, ensuring safety and quality assurance.
The product is manufactured in the Czech Republic, attesting to its quality and regulatory compliance. Typical applications include motor protection in industrial automation, HVAC systems, and machinery manufacturing environments.
The package contains the Schneider Electric LR2K0321 Thermal Overload Relay configured as per described specifications. Explore the wide range of Schneider Electric relays and contactors on EnvMart to enhance your electrical systems with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this thermal overload relay is from 10 to 14 amperes, allowing for precise motor protection.
This model supports control voltages of 250 V DC and 690 V AC, making it suitable for various electrical applications.
The power rating of this thermal overload relay is 100 watts, providing reliable thermal protection for motors.
The relay has an IP2X protection rating, which indicates a level of protection against solid objects.
The dimensions of this thermal overload relay are 116 mm in length, 45 mm in width, and 65 mm in depth.
It features a DIN rail mount type with screw terminal connections for secure installation.
The normal state configuration includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
This model offers both automatic and manual reset methods, providing operational flexibility after trips.
It operates reliably within a temperature range of -20°C to 55°C.
Typical applications include motor protection in industrial automation, HVAC systems, and machinery manufacturing environments.
The relay includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed.
It complies with several international standards, including VDE 0660, UKCA, CSA/IEC 60947, UL, BS 4941, and NFC 63-650.
