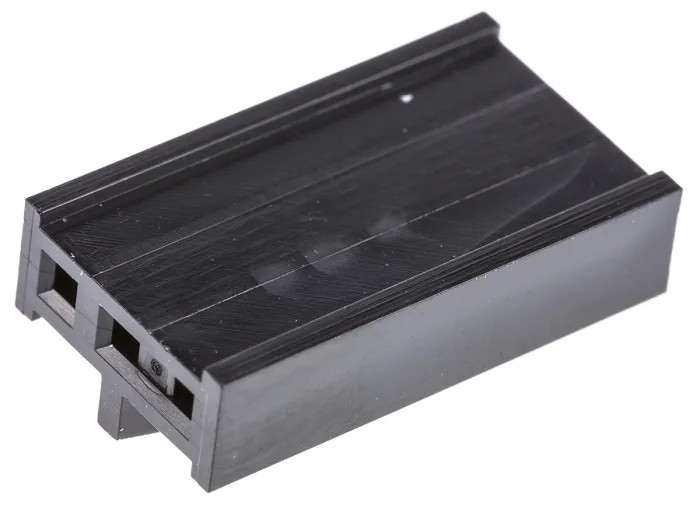

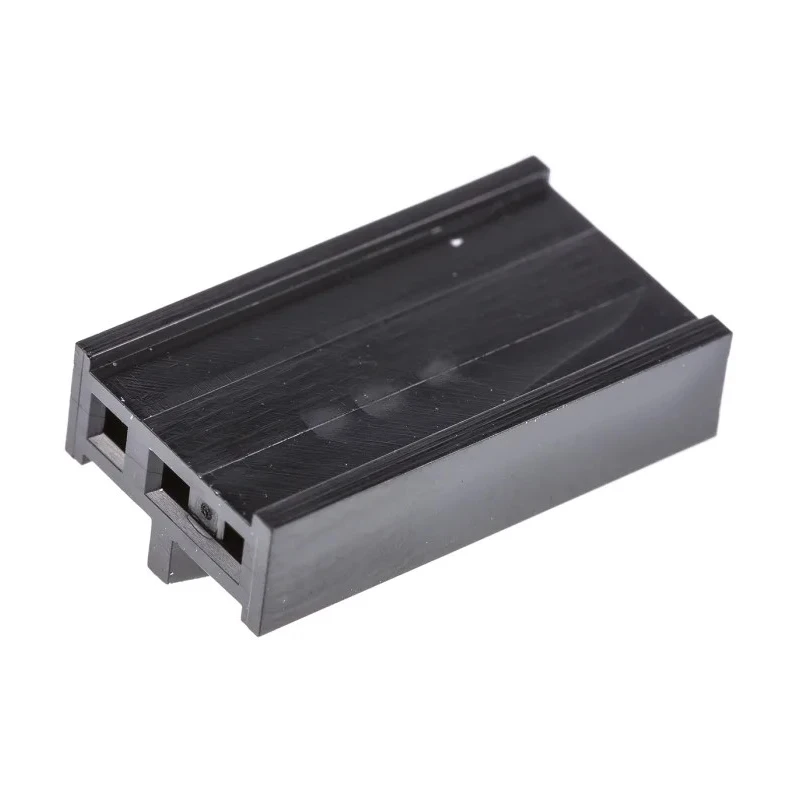

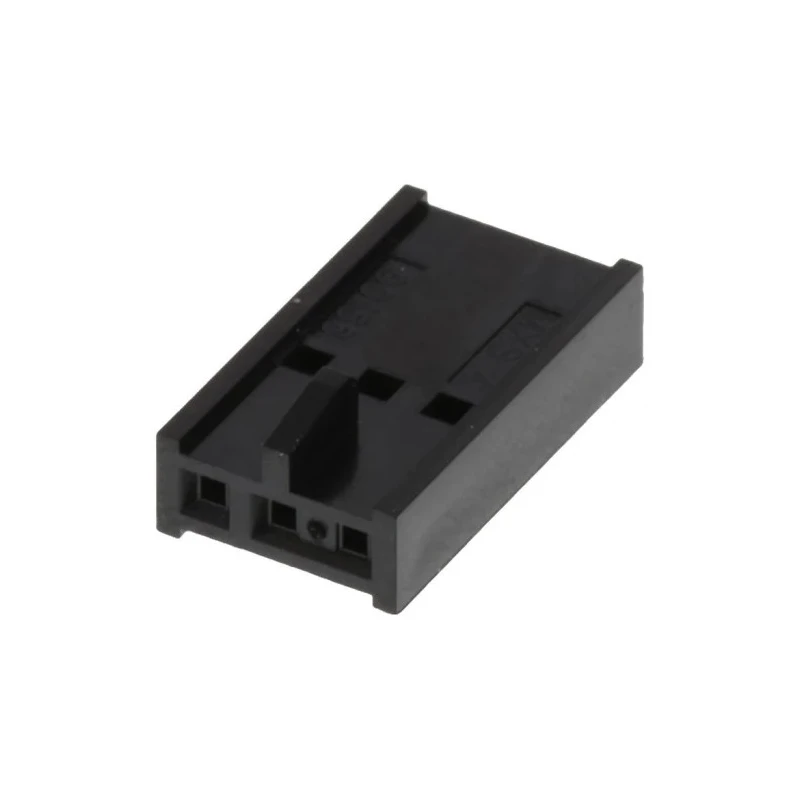

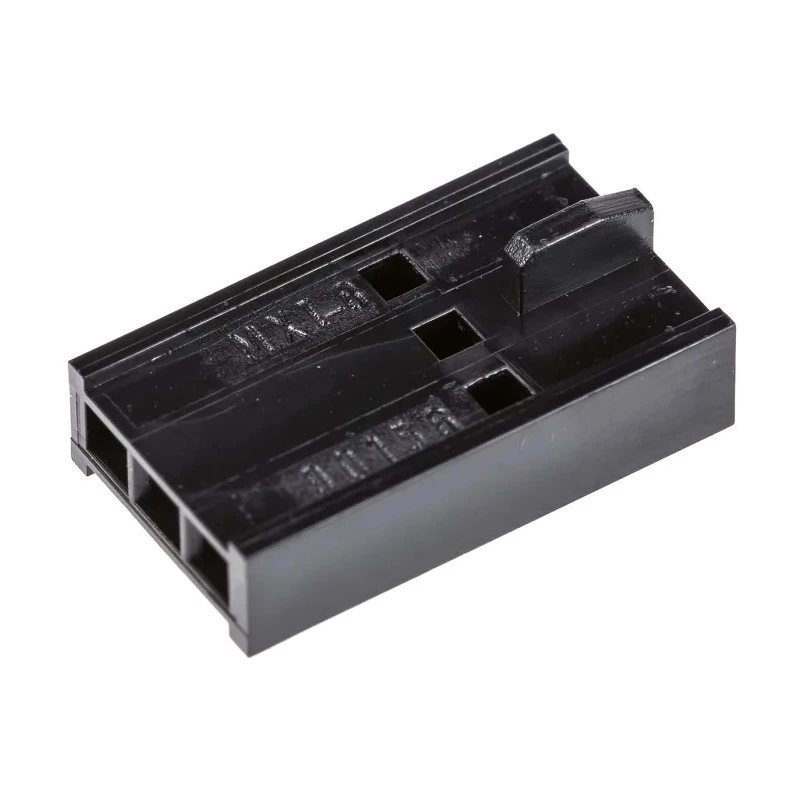

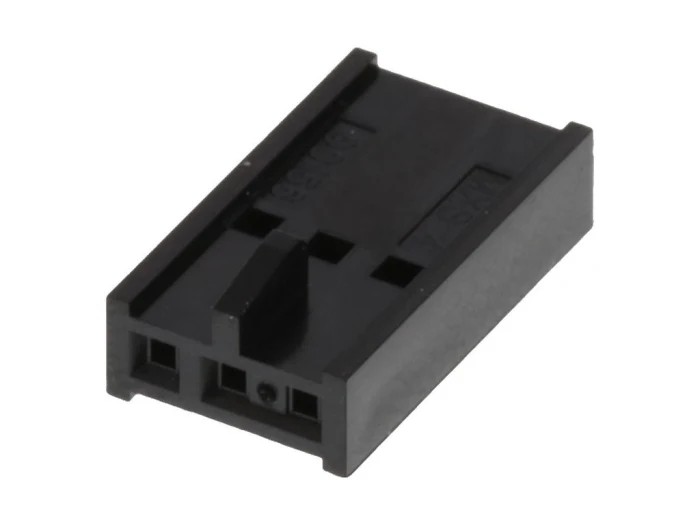

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 3 Way 1 Row Straight 90156-0143
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 8.68mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- The connector housing is designed for use with C-Grid III connectors offering easy wire-to-board connectivity.
- Compact dimensions of 8.68 mm length and 5.35 mm width save PCB space.
- Constructed from durable polyphenylene oxide (PPO) to withstand temperatures between -55°C and +105°C.
- Supports up to 3A current per contact ensuring reliable electrical performance.
- Lightweight design of only 0.3 grams reduces mechanical strain on assemblies.
- Uniform locking mechanism ensures secure connections with compatible wires.
- Straight orientation facilitates straightforward installation in constrained layouts.
- Suitable for applications in medical equipment, consumer electronics, and automated factory panels.
Product Description
Molex 90156-0143 Female Connector Housing, part of the C-Grid III series, features a 2.54 mm pitch with 3 contacts arranged in a single row. This cable mount housing is made from polyphenylene oxide (PPO), a robust material known for its heat resistance and mechanical durability, making it suitable for demanding industrial and electronic environments.
The housing measures 8.68 mm in length, 5.35 mm in width, and 15.24 mm in depth, offering a compact footprint that optimizes PCB space usage. Engineered for reliable connections, it supports a maximum current rating of 3 amps per contact, ensuring efficient power delivery for moderate-load applications.
This connector features a uniform locking mechanism for compatibility across standard wires and provides a straight orientation for ease of assembly. Its lightweight design of just 0.3 grams minimizes strain on cables and assembly points, which is critical in high-density electronic setups.
The C-Grid III connector housings are part of a modular interconnection system enabling flexible and scalable wire-to-board configurations. This housing is ideal for use in a variety of applications including medical devices, consumer electronics, and automated manufacturing panels, benefiting from its broad operating temperature range from -55°C to +105°C.
The 2.54 mm pitch spacing facilitates precise modular connections in tight spaces. Polyphenylene oxide material resists heat distortion for long-lasting performance. Compact and lightweight design supports integration in high-density PCB layouts.
Uniform locking mechanism for secure and stable wire connections. Suitable across demanding industrial, medical, and consumer electronic applications.
This Molex 90156-0143 female Connector Housing is manufactured in Indonesia and adheres to the DIN 41651 and HE13/14 standards, guaranteeing quality and interchangeability within the C-Grid III system. For comprehensive circuit design flexibility, it is compatible with various C-Grid III connectors enabling scalable and robust connection architectures.
Explore further Molex electronic connectors and housings at EnvMart for all your advanced interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
The housing measures 8.68 mm in length, 5.35 mm in width, and 15.24 mm in depth.
It supports a maximum current rating of 3 amps per contact.
The housing is constructed from polyphenylene oxide (PPO), which is known for its heat resistance and mechanical durability.
This model features a straight orientation, facilitating straightforward installation in constrained layouts.
It is suitable for applications in medical equipment, consumer electronics, and automated factory panels.
This connector housing has 3 contacts arranged in a single row.
The weight of this connector housing is only 0.3 grams, which helps reduce mechanical strain on assemblies.
It adheres to the DIN 41651 and HE13/14 standards, ensuring quality and interchangeability within the C-Grid III system.
This model is manufactured in Indonesia.
It is designed for cable mount applications.
Yes, it is compatible with various C-Grid III connectors, enabling scalable and robust connection architectures.
