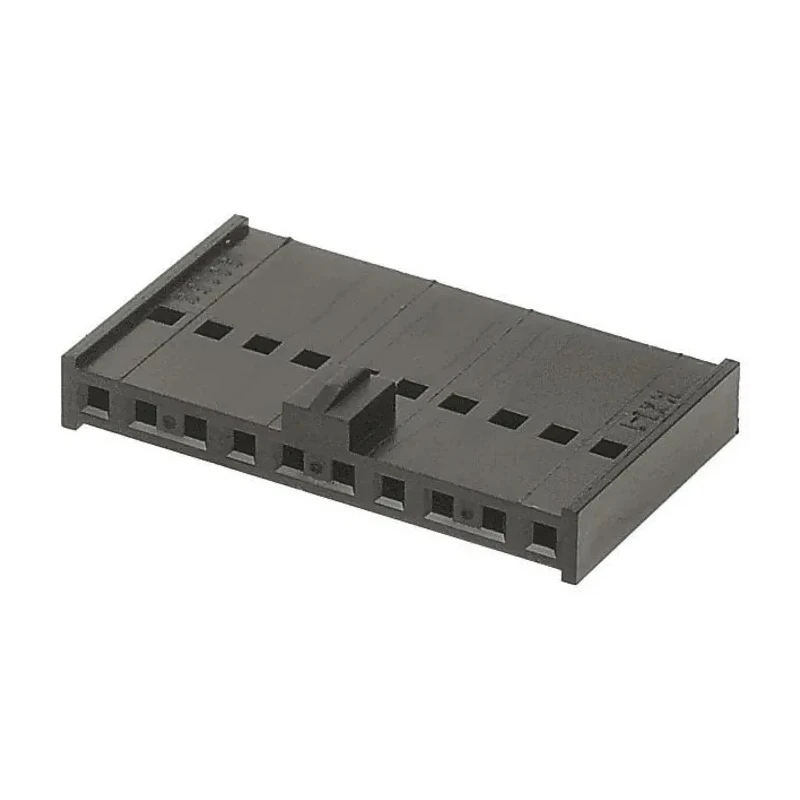

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 15 Way 1 Row Straight 90156-0155
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 39.16mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 15 |
| Connector Gender | Female |
Key Features
- Connector housing designed for cable mount applications.
- Solid PBT housing material providing durability.
- Modular C-Grid III series offering design flexibility.
- Uniform locking system for secure mating.
- Black color housing suitable for commercial and consumer electronics.
- Suitable for post and receptacle interconnections.
- Ideal for electronic, power, and PCB connector applications.
Product Description
Molex 90156-0155 C-Grid III Female Connector Housing is a precision-engineered component designed to provide reliable interconnection solutions within electronic assemblies. Featuring a 2.54 mm pitch and 15 contact positions arranged in a single straight row, this connector housing offers compatibility with the C-Grid III interconnection system, supporting both post and receptacle configurations.
Constructed from high-quality PBT (polybutylene terephthalate), the black housing ensures durability while maintaining a compact footprint with a length of 39.16 mm and width of 5.35 mm. This housing is intended for cable mounting, allowing secure and uniform connections in diverse environments.
The C-Grid III series is well-suited for use in industrial, commercial, laboratory, manufacturing, and general electronics applications requiring modular and flexible connector interfaces. Its uniform locking system guarantees secure mating, facilitating efficient assembly and maintenance of electronic systems.
The connector housing is compliant with DIN 41651; HE13/14 standards, although no other approvals are specified. It allows designers to implement wire-to-board configurations efficiently while maintaining system integrity and performance.
Connector housing designed for cable mount applications. Solid PBT housing material providing durability. Compact dimensions: length 39.16 mm and width 5.35 mm. Modular C-Grid III series offering design flexibility. Uniform locking system for secure mating.
Black color housing suitable for commercial and consumer electronics. Suitable for post and receptacle interconnections. Ideal for electronic, power, and PCB connector applications.
This connector housing supports a wide range of products in electronics manufacturing, power distribution, and PCB assembly industries. Its versatility and robust design make it an essential component for improved production efficiency and system reliability. Browse the extensive category of Connector Housings on EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
This model supports 15 contacts arranged in a single row.
The housing has a length of 39.16 mm and a width of 5.35 mm.
The housing is constructed from PBT (polybutylene terephthalate), ensuring durability.
This connector housing is designed for cable mount applications.
It belongs to the C-Grid III series, which offers modular design flexibility.
The orientation of this connector housing is straight.
Yes, it is suitable for electronic, power, and PCB connector applications.
It is compliant with DIN 41651; HE13/14 standards.
This housing supports both post and receptacle interconnections.
The country of origin for this connector housing is India.
This connector housing is ideal for use in industrial, commercial, laboratory, manufacturing, and general electronics applications.
