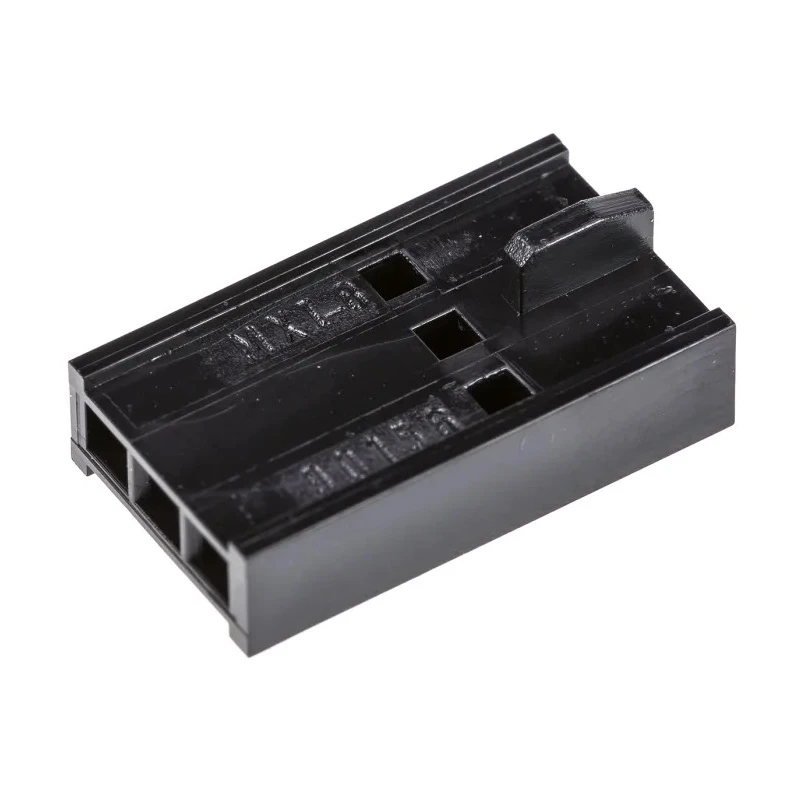

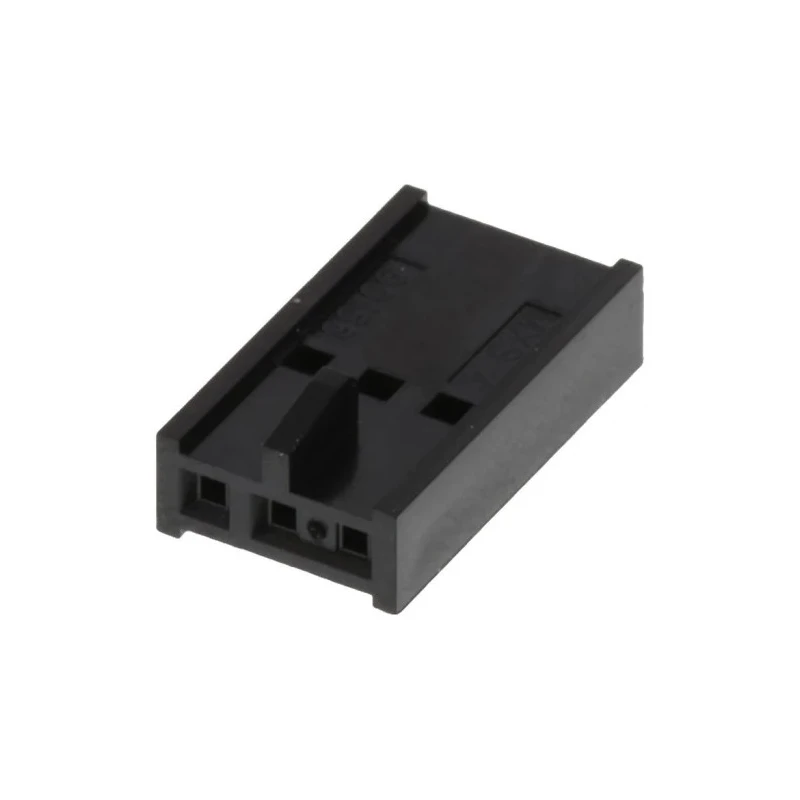

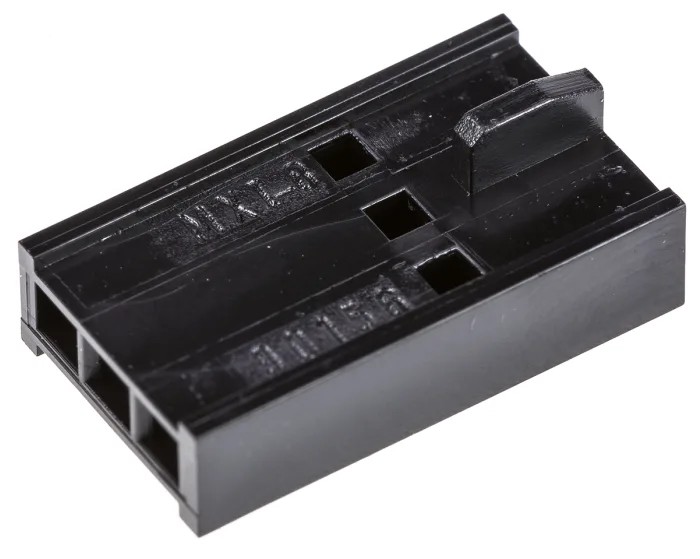

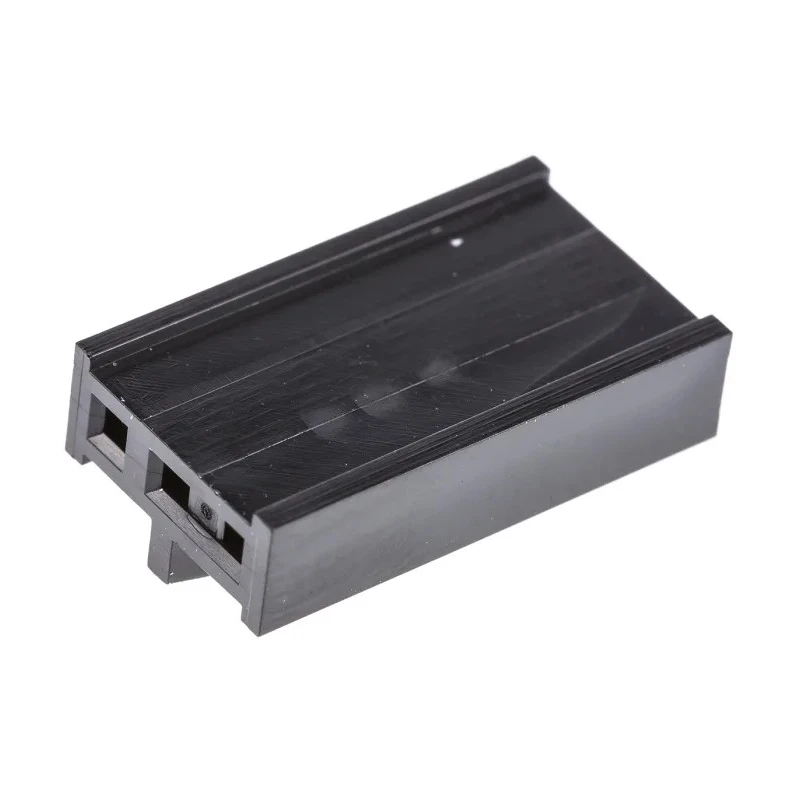

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 3 Way 1 Row Straight 90156-0143
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 8.68mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- The housing is made of durable polyphenylene oxide material resistant to heat distortion.
- Compact dimensions of 8.68 mm length by 5.35 mm width make it space-efficient.
- Uniform locking mechanism ensures compatibility with standard wires.
- Supports a maximum current of 3A per contact for reliable performance.
- Operating temperature range from -55°C to +105°C suits demanding environments.
- Part of the C-Grid III series offering modular and customizable PCB connection solutions.
- Designed for use in medical equipment, consumer electronics, and automated factory panels.
- Straight orientation simplifies cable connections and layout design.
Product Description
Molex 90156-0143 is a female connector housing with 2.54 mm pitch, 3 way, and 1 row straight cable mount suitable for custom PCB connections. Manufactured with polyphenylene oxide material, this connector housing offers durability and heat resistance, tolerating temperatures ranging from -55°C to +105°C. The compact design of 8.68 mm length by 5.35 mm width helps maximize use of limited space in electronic assemblies.
This housing features a uniform locking mechanism and supports a maximum current of 3A per contact, making it reliable for various applications. It is part of the C-Grid III interconnection system that provides flexibility through modular components, meeting the demands of various industrial and commercial uses.
Common applications include medical devices, consumer electronics, and automated factory control panels requiring dependable wire-to-board connections. Its straight orientation enables easy and secure cable mounting, while the black color and series specifications comply broadly across systems.
The housing is made of durable polyphenylene oxide material resistant to heat distortion. Compact dimensions of 8.68 mm length by 5.35 mm width make it space-efficient. Uniform locking mechanism ensures compatibility with standard wires.
Supports a maximum current of 3A per contact for reliable performance. Operating temperature range from -55°C to +105°C suits demanding environments. Part of the C-Grid III series offering modular and customizable PCB connection solutions.
Designed for use in medical equipment, consumer electronics, and automated factory panels. Straight orientation simplifies cable connections and layout design.
This connector housing is an essential component for industrial, medical, and consumer electronics applications requiring precise, reliable, and customizable electronic connections. Explore more options within the Molex C-Grid III series in the EnvMart Connector Housing collection for advanced electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
It has a length of 8.68 mm and a width of 5.35 mm, making it compact and space-efficient.
This model supports a maximum current of 3A per contact.
The operating temperature range is from -55°C to +105°C, suitable for demanding environments.
It is made from polyphenylene oxide, which is resistant to heat distortion.
This housing features 3 contacts.
It supports cable mounting, allowing for versatile installation options.
This connector housing is part of the C-Grid III series, which offers modular and customizable PCB connection solutions.
The connector housing has a straight orientation, simplifying cable connections and layout design.
It is designed for use in medical equipment, consumer electronics, and automated factory panels.
This connector housing is female, designed to connect with compatible male connectors.
Yes, it is specifically designed for use with C-Grid III connectors, ensuring compatibility within the series.
