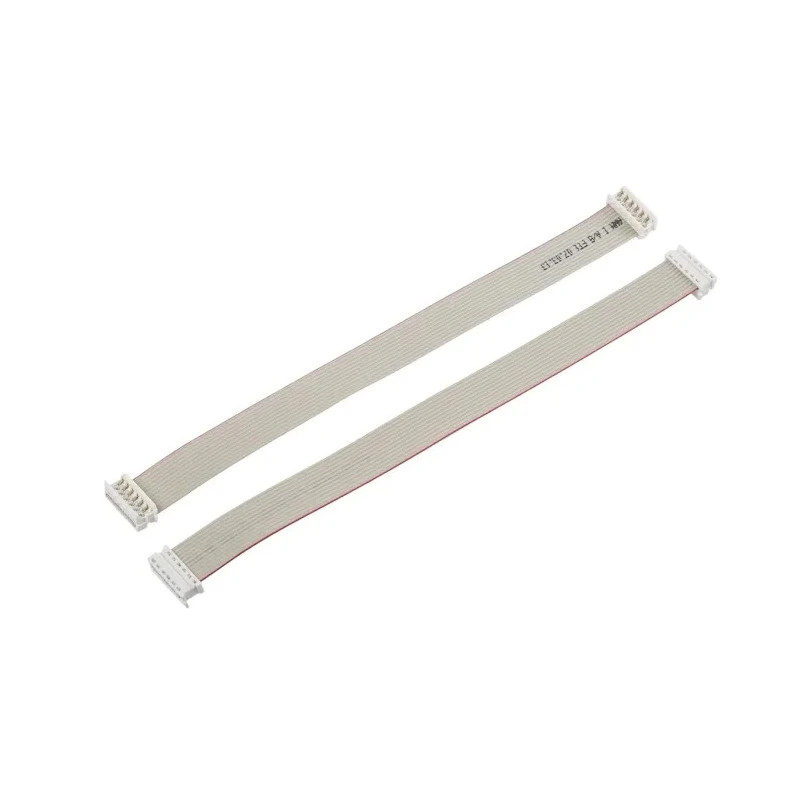

Molex Picoflex Series Flat Ribbon Cable 200 mm Length Picoflex IDC to Picoflex IDC 92315-1220

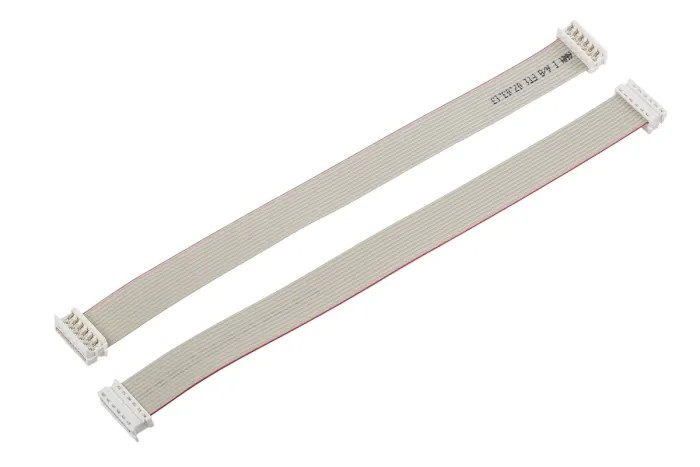

The Molex 92315-1220 Picoflex Series flat Ribbon Cable is a 200 mm length assembly featuring Picoflex IDC connectors on both ends. This wire-to-board cable is designed for applications requiring high-density electrical connections, including automotive, consumer electronics, and industrial use.

It utilizes 1.27 mm pitch PF-50 cable assemblies with two 90327 Series Picoflex IDT female connectors. The cable is constructed with gray PVC insulation and a durable polyester jacket, providing robust protection and flexibility.

The connectors feature contacts made of phosphor bronze alloy with tin plating, which ensures reliable electrical connectivity. The IDT housing is made from Nylon 6/6 material rated UL 94V-0 for flame retardancy, complying with RoHS standards.

This cable assembly reduces space requirements by 50% compared to traditional pitch cables. Its low mated height of just 6.4 mm facilitates compact electronic designs. The cable also provides integral strain relief and excellent polarization to prevent misconnection.

Its resistance to vibration and shock makes it suitable for harsh environments found in automotive and consumer electronic products. These assemblies save time and tooling investments by coming pre-terminated and ready for use.

Constructed with flat 1.27 mm pitch Picoflex PF-50 cable assembly. Features two 90327 Series Picoflex IDT connectors, female gender on both ends. Cable insulation is gray PVC with a polyester jacket for durability. IDT housing made from Nylon 6/6, UL 94V-0 rated for high safety standards.

Contact material is phosphor bronze alloy with tin plating for reliable conductivity. Designed for saving time and tooling investment in electronic assembly. Offers 50% space saving compared to traditional pitch cables. Mated height is low at only 6.4 mm for compact device integration.

Provides excellent polarization features and integral strain relief. Resistant to vibration and shock, suitable for automotive and consumer electronics.

This product is ideal for industrial electronics manufacturing, automotive electrical systems, laboratory equipment, and commercial consumer devices where space-saving and reliable connections are essential. Explore more high-quality wiring solutions in the Electronics & Electricals category at EnvMart.
