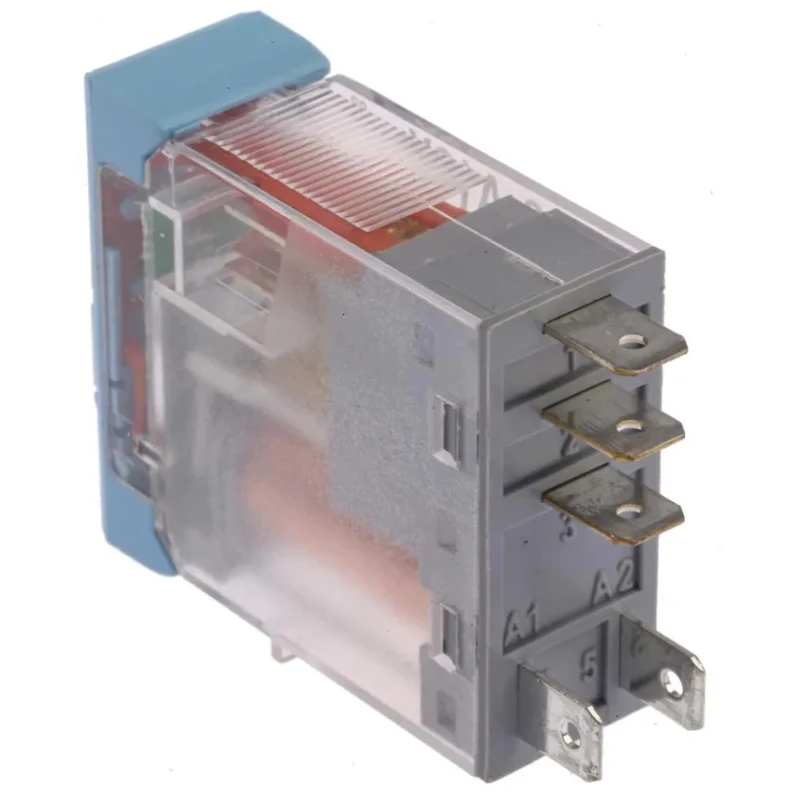

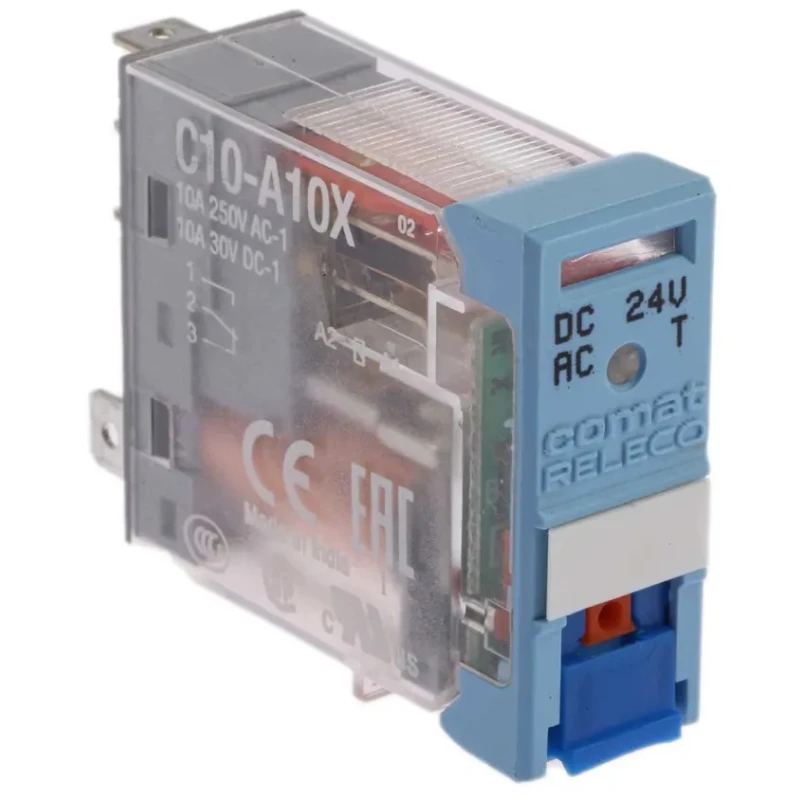

Releco Power Relay 24V DC Coil, 10A Switching Current, SPDT C10-A10X / DC 24 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 35.4mm |
| Length | 12.5mm |
| Model | C10-A10X / DC 24 V |
| Width | 12.5mm |
| Contact Material | Silver Alloy |
| Series | C10 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, EN, IEC, UL, RoHS |
| Coil Resistance | 742Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 650mW |
Key Features
- This relay is equipped with a test button, LED indicator, and mechanical flag indicator for easy status monitoring.
- The coil power rating is 650mW, ensuring efficient operation.
- Robust silver alloy contacts provide reliable switching performance up to 2.5 kVA.
- Operating temperature ranges from -40°C to 60°C, suitable for harsh industrial environments.
- Compact dimensions with 35.4 mm height, 12.5 mm length, and 12.5 mm width allow for space-saving installation.
- Quick connect terminal type ensures fast and secure wiring.
- DIN rail socket is only 16 mm wide, facilitating easy mounting in control panels.
- Designed for industrial applications requiring high switching capacity and durability.
Product Description
Releco C10-A10X / DC 24 V power relay is a 1-pole plug-in mount non-latching relay with SPDT contact configuration. It is actuated by a 24V DC coil and supports a switching current of 10A, making it ideal for applications demanding reliable power switching.
The relay incorporates a color-coded dual-function test button that can be pushed for testing or lifted to latch the relay. Additional features include a visible mechanical flag indicator and an LED indicator for clear operational status indication, enhancing ease of use and diagnostics in industrial and electrical automation systems.
Coil power consumption is only 650mW, contributing to low operating costs. The relay's compact size, with dimensions of 35.4 mm height and 12.5 mm length and width, fits well in limited spaces such as control cabinets or DIN rails, with its socket width being just 16 mm.
The silver alloy contacts are designed to handle switching power up to 2.5 kVA at 240V AC, ensuring dependable switching with minimal contact resistance. The wide operating temperature range from -40°C to +60°C allows the relay to function reliably in challenging environmental conditions encountered in industrial settings.
The quick-connect terminal type enables secure and time-efficient wiring, suitable for use in industrial automation, electrical control, manufacturing, and HVAC applications that require power relay switching.
This relay is equipped with a test button, LED indicator, and mechanical flag indicator for easy status monitoring. The coil power rating is 650mW, ensuring efficient operation. Robust silver alloy contacts provide reliable switching performance up to 2.5 kVA.
Operating temperature ranges from -40°C to 60°C, suitable for harsh industrial environments. Compact dimensions allow for space-saving DIN rail installation. Quick connect terminal type for fast and reliable wiring. Compliance with CSA, EN, IEC, UL, and RoHS standards assures quality and safety.
The Releco C10 series power relay suits electrical automation, industrial machinery, control systems, HVAC equipment, and other commercial or industrial applications requiring dependable relay switching performance.
Explore more Power Relays and electrical components from leading brands at EnvMart for all your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 10A, making it suitable for applications that require reliable power switching.
The coil voltage for this relay is 24V DC, which is necessary for its operation.
The relay has compact dimensions of 35.4 mm in height, 12.5 mm in length, and 12.5 mm in width, allowing for space-saving installation.
It operates effectively within a temperature range of -40°C to +60°C, suitable for harsh industrial environments.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The coil power consumption is 650mW, contributing to efficient operation.
It is equipped with a quick connect terminal type, ensuring fast and secure wiring.
The contacts are made of robust silver alloy, designed to provide reliable switching performance.
This relay complies with CSA, EN, IEC, UL, and RoHS standards, assuring quality and safety.
The maximum switching voltage for this relay is 240V AC, suitable for various industrial applications.
The DIN rail socket is only 16 mm wide, facilitating easy mounting in control panels.
This relay is suitable for electrical automation, industrial machinery, control systems, and HVAC equipment that require dependable relay switching performance.
