RS PRO SPST Panel Mount Illuminated Toggle Switch, On-Off, Tab Terminal, 12 V dc, 16A, Polycarbonate Actuator 419-845

RS PRO 419-845 is a high-quality SPST Panel Mount Illuminated Toggle Switch designed for On-Off applications at 12 V dc with a 16A contact current rating. It features a robust polycarbonate actuator material and a flame retardant Nylon 66 case rated UL94V-2, making it suitable for use in industrial and commercial environments where durability and safety are critical.

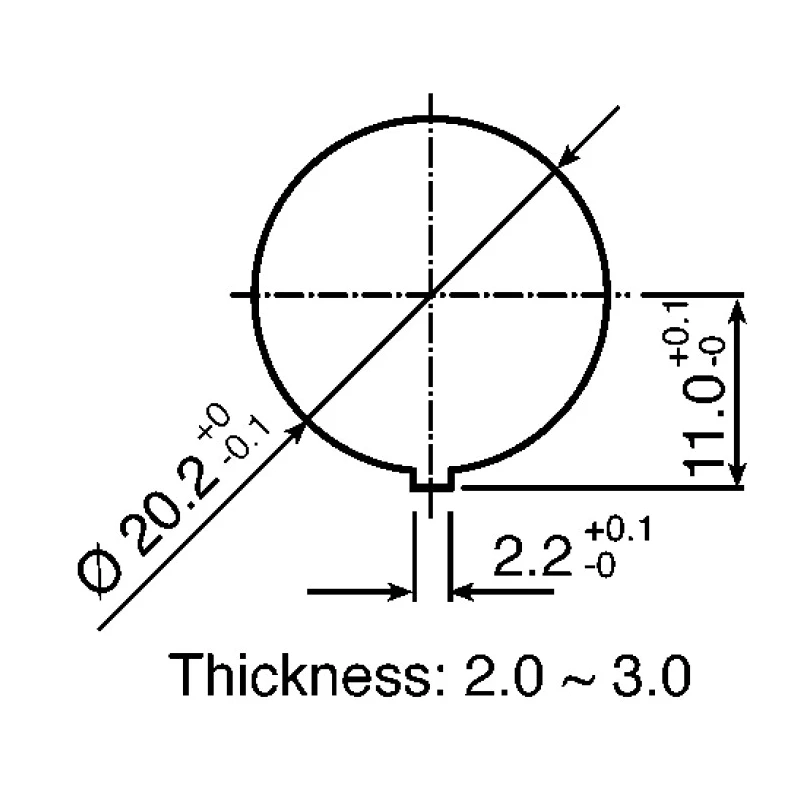

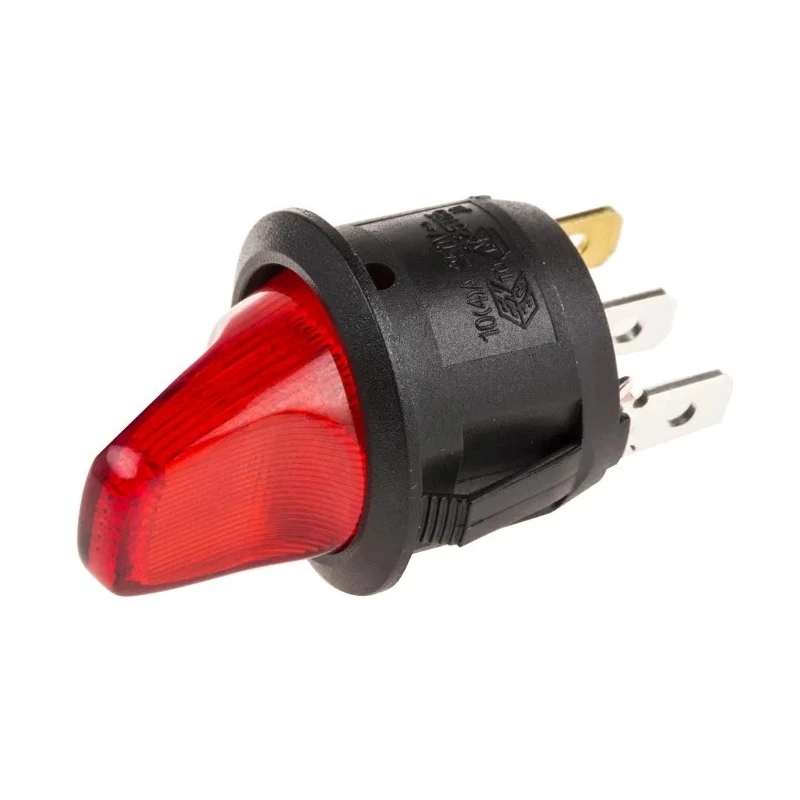

The switch is equipped with a distinctive red illuminated paddle that signals the On position clearly, enhancing operator awareness. The paddle toggle has a latching action for reliable position retention and uses 4.8 x 0.8 mm snap-in quick connect terminals for easy and secure panel mounting within a 20.2 mm diameter cutout.

This RS PRO toggle switch is sealed for protection against moisture and water ingress and can operate in harsh conditions ranging from -20°C up to 85°C. Its compact size of approximately 23 x 40 mm makes it ideal for panels with limited space without compromising performance.

Electrical ratings include 125 V ac @ 16A and 240 V ac @ 10A, making the switch capable of handling typical mains power loads safely and reliably. The switch complies with a wide range of international standards including CQC, CSA, ENEC, UL, VDE, and RoHS, ensuring premium quality and certification for global applications.

Applications for the RS PRO 419-845 toggle switch include industrial machinery, automation panels, electrical control systems, and commercial electrical equipment, where rugged, reliable switching is required.

This toggle switch features a durable polycarbonate actuator with a red illuminated paddle for clear status indication. It mounts easily to panels using a 20.2 mm diameter cutout with snap-in quick connect terminals. The construction includes a flame retardant Nylon 66 case with UL94V-2 rating for industrial robustness.

Operating temperature range from -20°C to 85°C ensures suitability for various environments. The switch is sealed against moisture and water, enhancing longevity and reliability. Rated for 125 V ac (16A) and 240 V ac (10A) mains operation, compatible with multiple standards.

Compliance with CQC, CSA, ENEC, UL, VDE, and RoHS certification ensures quality and safety. Compact dimensions of 23 x 40 mm allow installation even in tight panel spaces. Discover the extensive range of Toggle Switches and electrical components available on EnvMart to meet your industrial and commercial project needs.
