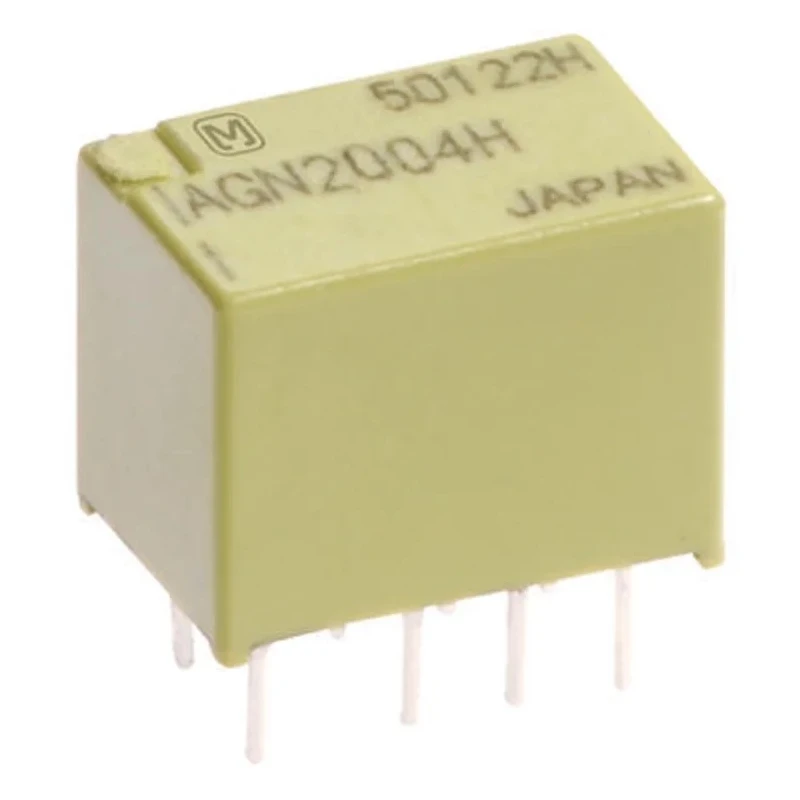

Panasonic Surface Mount Signal Relay 4.5V DC Coil 1A DPDT AGN2004H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.6mm |
| Model | AGN2004H |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | AGN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 144Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
| Panasonic PCB Signal Relay, 4.5V dc Coil, 1A, DPDTBrand | Panasonic |
| Aratas PCB Signal Relay, 4.5V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- Features compact slim body with dimensions 9mm height, 5.7mm width, and 10.6mm length.
- Suitable for surface PCB mounting with gold plated silver aluminium contacts for enhanced conductivity.
- Designed to operate across -40°C to 85°C temperature range for industrial and commercial environments.
- Offers high surge resistance and sealed construction allowing for automatic washing.
- Capable of switching 125V AC and 110V DC voltages for versatile applications.
- Employs coil resistance of 144Ω consuming 140mW coil power for efficient operation.
- Widely used in telecommunications, measurement equipment, and audio-visual devices.
- RoHS compliant and manufactured in Japan ensuring quality and environmental standards.
Product Description
Panasonic AGN2004H surface mount signal relay incorporates a 4.5V DC coil and features a dual pole double throw (DPDT) contact configuration rated for 1A switching current. The compact design with a slim body measuring 9mm in height, 5.7mm in width, and 10.6mm in length makes it ideal for high-density PCB mounting applications.
This relay offers exceptional surge resistance and a sealed construction permitting automatic washing, which enhances its durability in industrial use. It operates reliably over a wide temperature range of -40°C to 85°C, making it suitable for varied operating environments, including telecommunications, measurement instruments, and audio-visual equipment.
The gold plated silver aluminium contact material ensures excellent contact conductivity and longevity. The relay handles switching voltages up to 125V AC and 110V DC, accommodating diverse electrical requirements. Efficient coil operation is maintained with a coil resistance of 144Ω and coil power of 140mW.
Panasonic AGN series relays are manufactured in Japan, complying with RoHS standards focused on hazardous substances reduction. Twin crossbar contacts design supports high contact reliability, which is critical for signal relay applications.
Compact slim sealed surface mount construction for enhanced packing density. Gold plated silver aluminium contacts providing high conductivity and reliability. High surge resistance suitable for demanding signaling applications.
Operating temperature range from -40°C to 85°C for versatile environments. Supports both AC and DC switching voltages of 125V AC and 110V DC. Low coil power consumption with 144Ω coil resistance and 140mW coil power. RoHS compliant ensuring environmental safety and quality manufacturing.
Ideal for telecommunications, audio-visual, and measurement equipment. Robust twin crossbar contacts for superior contact reliability.
Choose the Panasonic AGN2004H relay for precision and reliability in electronic switching and signal conditioning applications. Browse Panasonic Signal Relays and related electronic components at EnvMart for dependable industrial and commercial solutions.
