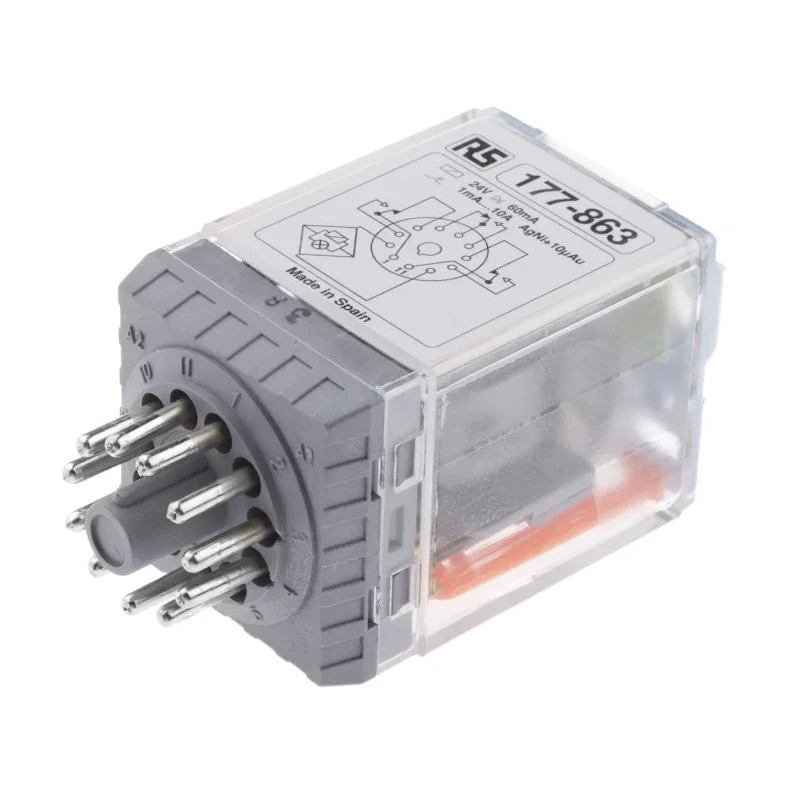

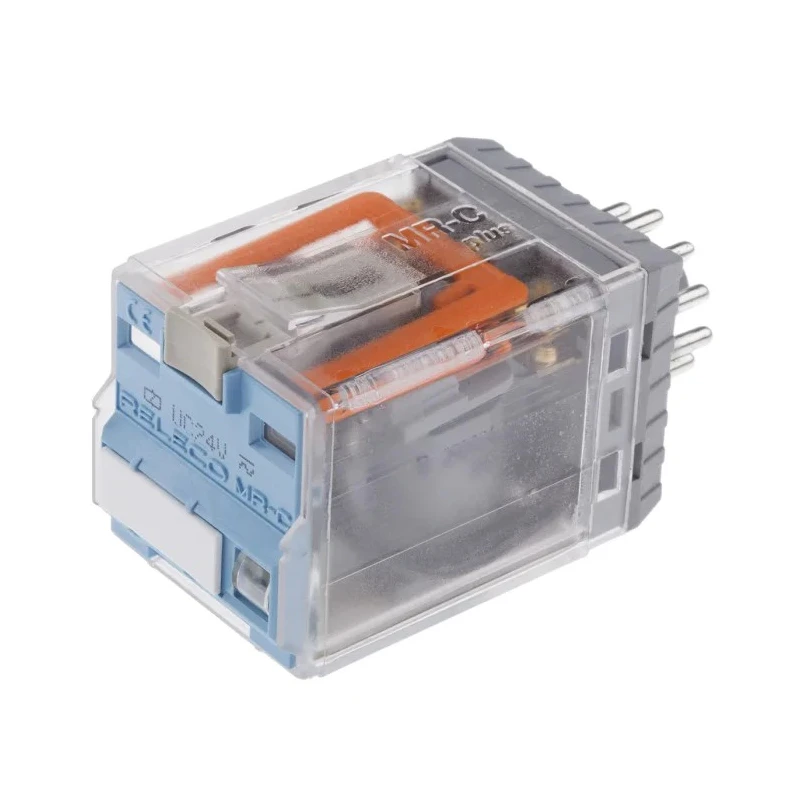

Releco PCB Power Relay 24V ac/dc Coil 10A Switching Current 3PDT C3-A38 BX 24V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |

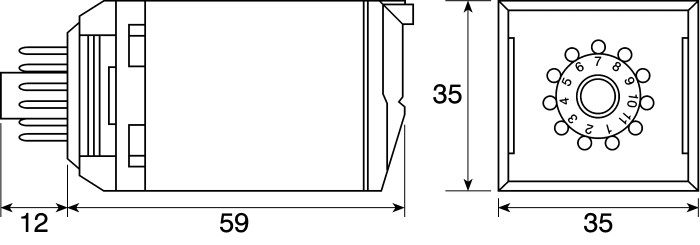

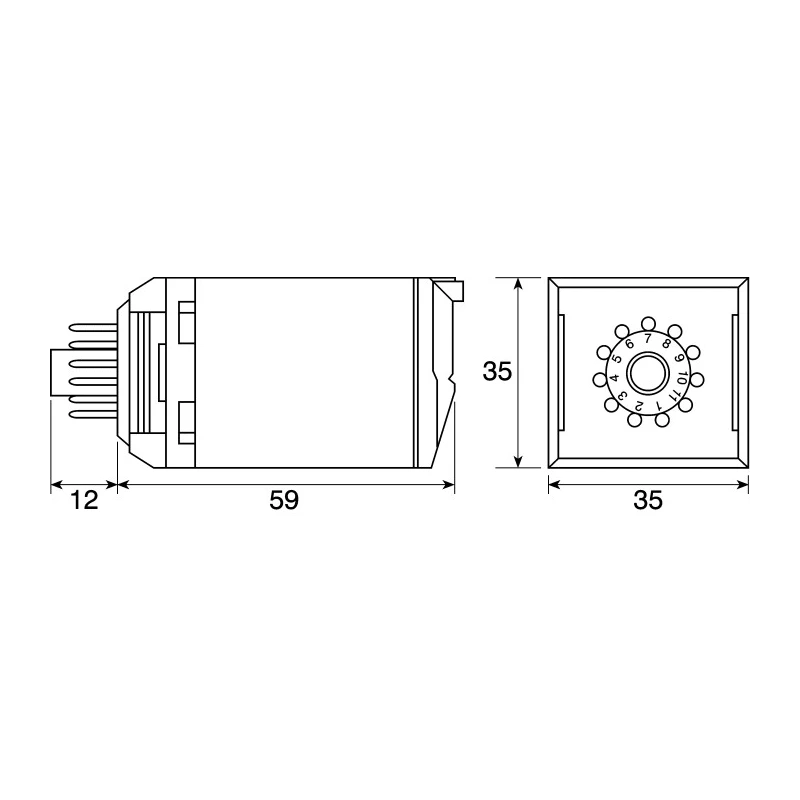

| Height | 66mm |
| Length | 35mm |
| Model | C3-A38 BX 24V |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | C3 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Standards/Approvals | EN, CSA, IEC, RoHS, UL |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 443Ω |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2.2W |
Key Features
- The relay features a 3PDT contact configuration for multiple circuit control.
- Equipped with a colour-coded test button offering push-to-test and lift-to-latch functions.
- Includes LED indicator and mechanical flag indicator for operational status monitoring.

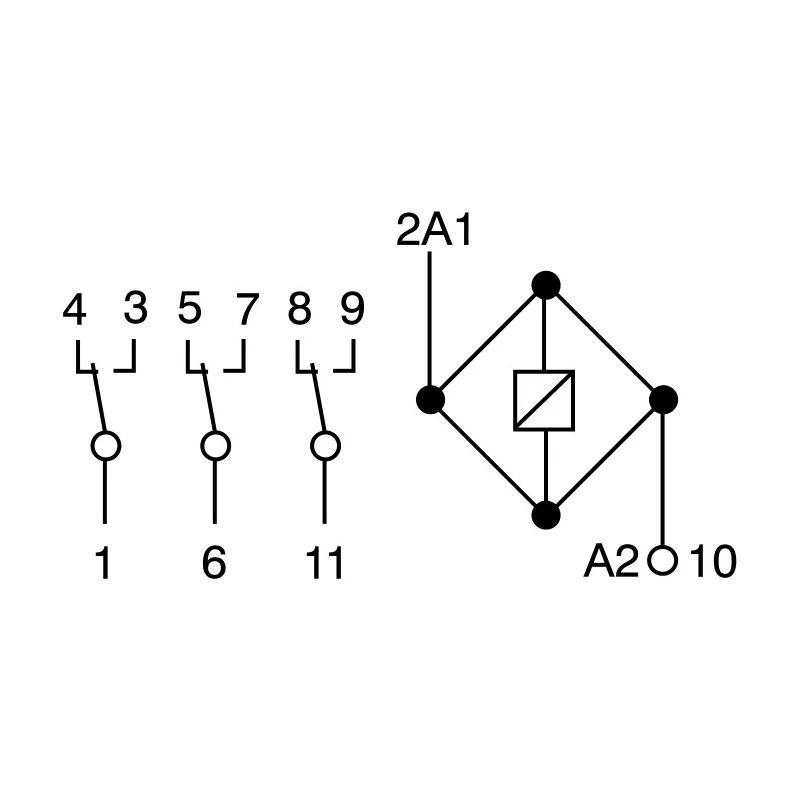

- Built-in bridge rectifier enables AC or DC coil operation while suppressing back EMF during DC use.
- Coil power consumption is low at 2.2W enhancing energy efficiency.
- Operating temperature ranges from -40°C to 60°C for robust performance under diverse conditions.
- Contact material is a silver alloy with silver-nickel and 10μ gold plating for excellent conductivity and durability.
- Through hole terminal type simplifies PCB mounting and ensures secure electrical connection.
Product Description
Releco C3-A38 BX 24V is a premium PCB mount power relay designed for reliable switching in demanding industrial and automation environments. It operates with a 24V AC/DC coil and provides a robust switching current capacity of 10A, suitable for various control systems.
The relay’s 3PDT (three-pole double-throw) contact configuration allows it to control multiple circuits simultaneously, making it versatile for complex applications. A dual function test button - colour-coded for ease - is included, enabling operators to push to test or lift to latch the relay. Additionally, LED and mechanical flag indicators provide clear, immediate visual feedback on relay status, enhancing maintenance and operational monitoring.
This model incorporates a built-in bridge rectifier to seamlessly support both AC and DC coil voltages. The rectifier also suppresses back electromotive force (EMF), which can protect sensitive electronic components during DC operation. The coil power rating is designed for energy efficiency at 2.2 watts, while the coil resistance is 443 ohms.
Built to endure challenging environments, it operates reliably within a temperature range of -40°C to 60°C. The relay features durable silver alloy contacts specifically silver-nickel with a 10-micron gold layer, which provide excellent conductivity and corrosion resistance to ensure long service life. Through-hole terminal mounting offers a secure and stable connection directly onto printed circuit boards (PCBs).
This relay meets multiple international standards and approvals including EN, CSA, IEC, RoHS, and UL, assuring compliance and quality assurance for professional applications. The relay’s contact configuration is 3PDT for multi-circuit control.
Coil voltage is 24V AC/DC, suitable for diverse power sources. Switching current capacity of 10A supports moderate load demands. Operating temperature range from -40°C to 60°C for reliable use in harsh conditions. Coil power consumption of 2.2W optimizes energy usage.
Contact material silver alloy with silver-nickel and gold plating offers durability. Through hole terminals ensure secure PCB mounting and connection. Coil to contact isolation rated at 2.5kV enhances safety. Standards compliance with EN, CSA, IEC, RoHS, UL certifies quality.
Commonly used in industrial automation, electronic control panels, HVAC systems, manufacturing equipment, and other commercial applications where reliable power switching is critical. Compatible with PCB installations requiring high switching current and versatile contact arrangements.
Explore the Electronics & Electricals category at EnvMart for a wide selection of high-quality Power Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 10A, suitable for moderate load demands in various applications.
This model operates with a coil voltage of 24V AC/DC, making it compatible with diverse power sources.
It features a 3PDT (three-pole double-throw) contact configuration, allowing control of multiple circuits simultaneously.
The relay measures 66mm in height and 35mm in length, designed for PCB mounting.
It operates reliably within a temperature range of -40°C to 60°C, suitable for harsh conditions.
This model features through-hole terminals, ensuring a secure and stable connection to printed circuit boards (PCBs).
The coil power consumption is low at 2.2W, which enhances energy efficiency during operation.
The contacts are made of a silver alloy with silver-nickel and 10μ gold plating, providing excellent conductivity and durability.
It meets multiple international standards and approvals including EN, CSA, IEC, RoHS, and UL, ensuring quality assurance for professional applications.
The coil resistance is 443 ohms, which is a critical specification for its operation.
This relay is commonly used in industrial automation, electronic control panels, HVAC systems, and manufacturing equipment where reliable power switching is critical.
Yes, it includes LED and mechanical flag indicators that provide clear visual feedback on the relay's operational status.
