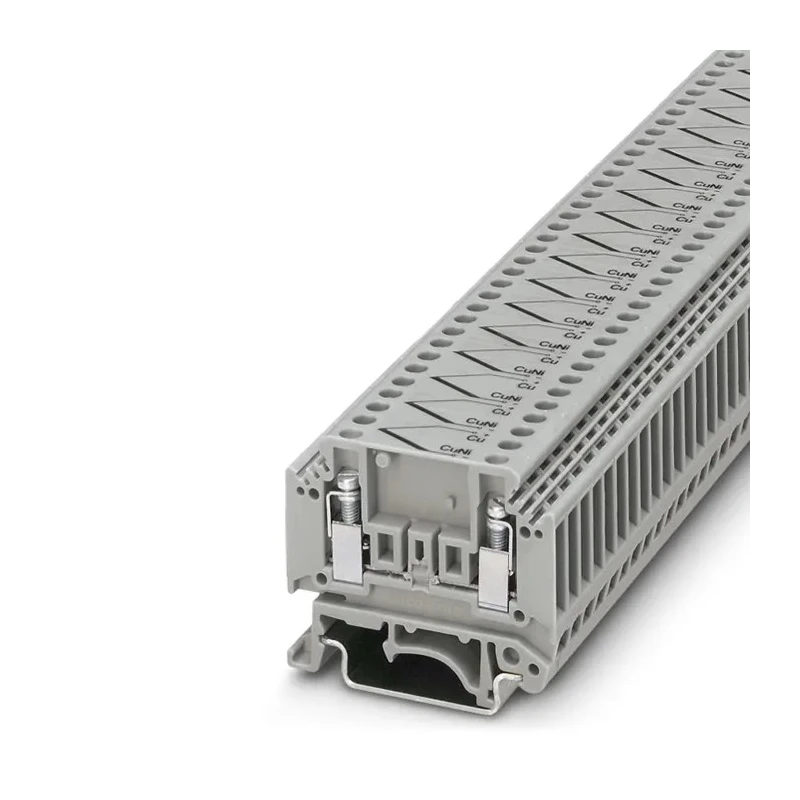

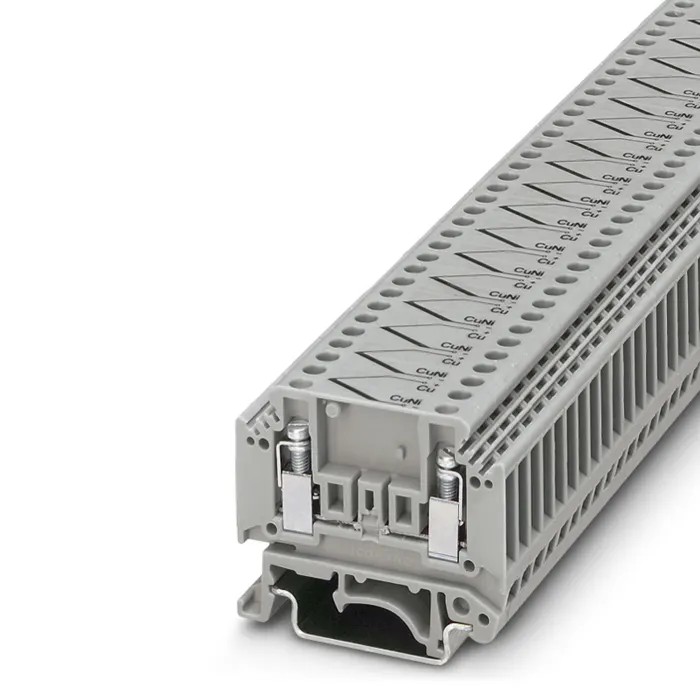

Phoenix Contact MTKD-FE/CUNI EX Series Thermoelectric Voltage Terminal Block Grey 0.2-4 mm² Screw 400V 1A 3100047

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MTKD-FE/CUNI EX Series Thermoelectric Voltage Terminal Block Grey 0.2-4 mm² Screw 400V 1A 3100047

Name: Phoenix Contact MTKD-FE/CUNI EX Series Thermoelectric Voltage Terminal Block Grey 0.2-4 mm² Screw 400V 1A 3100047
Brand: PHOENIX CONTACT
SKU: 325158
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	400V
Brand	Phoenix Contact
Colour	Grey
Model	3100047
Series	MTKD-FE/CUNI EX
Termination Type	Screw
Maximum Operating Temperature	200°C
Number of Levels	1
Hazardous Area Certification	ATEX, EAC Ex
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.2, 4mm²
Terminal Block Current	1A
Thermoelectric voltage terminal block pair, TC type J, nom. voltage	400 V, nominal current: 1 A, connection method: Screw connection, number of connections: 4, number of positions: 2, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 10.4 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

Key Features

Compatible with thermocouple type J for accurate voltage measurement.
Supports wire cross sections from 0.2 to 4 mm² and AWG sizes 24 to 12.
Nominal voltage rating of 400 V and current rating of 1 A for industrial applications.
Constructed with screw termination for secure and reliable connections.
Maximum operating temperature of 200°C suits harsh industrial environments.
Designed for DIN rail mounting (NS 35/7.5, NS 35/15, NS 32) for flexible installation.
Grey color coding aids visual identification in electrical panels.
Certified for hazardous environments with ATEX and EAC Ex certifications.

Product Description

Phoenix Contact 3100047 MTKD-FE/CUNI EX Series thermoelectric voltage terminal block is engineered for extending thermocouple equalizing conductors in precise measuring circuits. Rated for a nominal voltage of 400 V and nominal current of 1 A, this grey coloured terminal block features reliable screw connection technology. It supports wire cross-section sizes from 0.2 mm² to 4 mm² and AWG sizes from 24 to 12.

This terminal block measures 10.4 mm in width and is designed to mount on standard DIN rails including NS 35/7.5, NS 35/15, and NS 32 profiles. Its maximum operating temperature of 200°C makes it well-suited for demanding industrial environments where temperature stability is crucial.

Manufactured in Poland, the MTKD-FE/CUNI EX series ensures thermal characteristics that match corresponding thermocouples up to 200°C, enabling accurate thermoelectric voltage measurements in control systems. The product's screw-type termination guarantees secure wiring, essential for installation durability.

Compatible with thermocouple type J measurement circuits. Wire size range: 0.2 to 4 mm² (24-12 AWG). Voltage rating: 400 volts nominal. Current rating: 1 ampere nominal. Screw connection type for secure termination. Width: 10.4 mm, fitting DIN rail standards NS 35/7.5, NS 35/15, NS 32.

Maximum operating temperature of 200°C for high-temperature applications. ATEX and EAC Ex certifications suitable for hazardous area use.

This thermoelectric voltage terminal block is ideal for industrial automation, electrical enclosures, HVAC systems, manufacturing process controls, and laboratory instrumentation requiring precise temperature measurement and signal integrity.

Discover additional Phoenix Contact terminal blocks and related components in the Electronics & Electricals section at EnvMart for reliable automation and control solutions.
