Omron Z Series Roller Lever Limit Switch, SPDT Contact, Thermosetting Resin Housing, 500V AC, , Mechanical Life 20 IP00

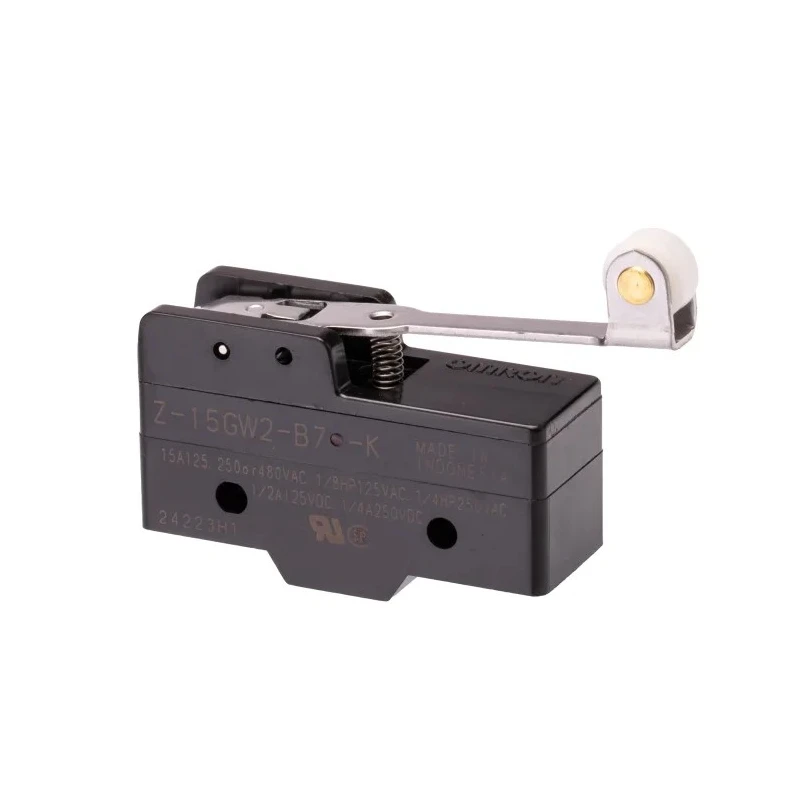

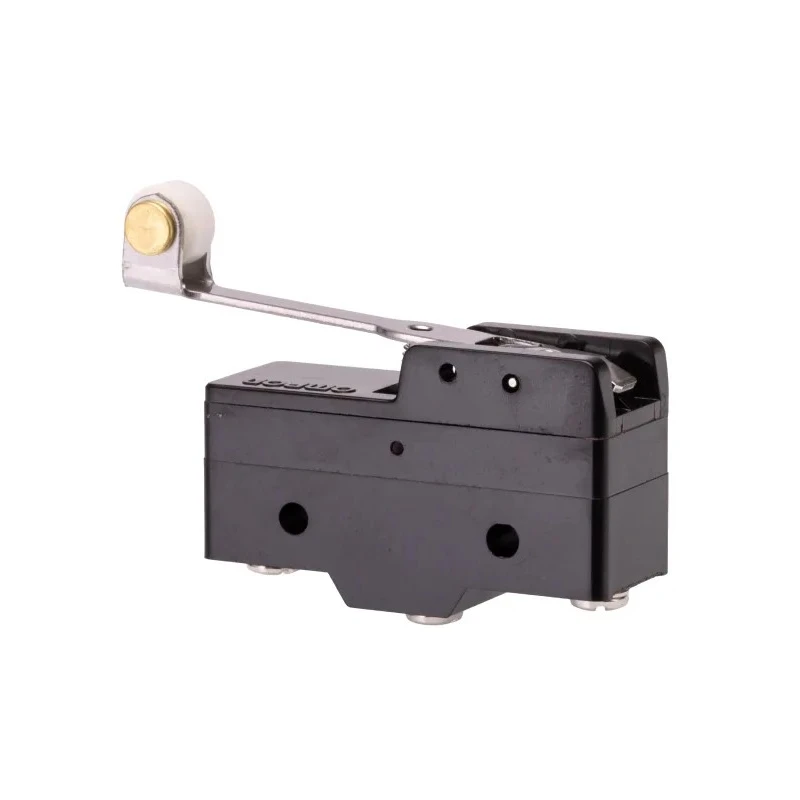

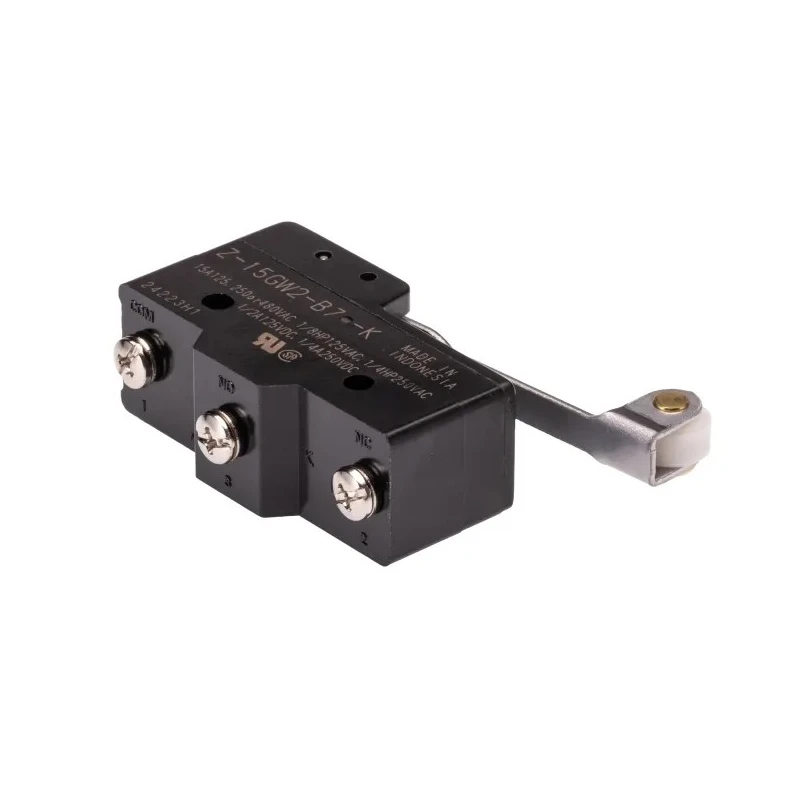

Omron Z-15GW2-B7-K is a high-quality roller lever limit switch designed for reliable use in industrial automation, machinery control, and conveyor systems. It employs a roller lever actuator combined with a snap action contact mechanism to deliver precise, fast switching performance essential for position feedback and limit detection.

The device is housed within a thermosetting resin material, providing excellent electrical insulation and mechanical robustness for demanding industrial environments. It supports single pole double throw (SPDT) contact configuration, which permits versatile wiring in diverse control circuit layouts.

This limit switch is rated for a switching AC voltage up to 500V and features a wide operating temperature range from -25°C to 80°C, ensuring stable operation across various industrial conditions. Its mechanical life expectancy reaches up to 20 million operations, making it suitable for high-cycle applications where durability is crucial.

The low operating force of 3.43N allows the switch to respond to minimal mechanical input, beneficial in delicate automation processes. The side mounting orientation using M4 screws with torque between 12 to 15 kg-cm ensures secure and optimal installation.

Roller lever actuator for smooth, reliable switching. Snap action contacts reduce contact bounce, improving signal accuracy. Robust thermosetting resin housing enhances insulation and durability. High voltage rating of 500V AC suitable for industrial loads.

Wide temperature range of -25°C to 80°C supports versatile environments. Long mechanical life of 20 million operations reduces maintenance needs. Compact dimensions (49.2mm x 29.4mm x 17.45mm) fit tight spaces. Low actuation force of 3.43N facilitates precise activation.

Side mounting with M4 screws for secure placement.

This limit switch fits a variety of industrial uses including conveyor position feedback, precise movement detection in robotics, and as a reliable component in control circuits across manufacturing and automation industries. Its combination of durability, precision, and ease of installation makes it a preferred choice for industrial equipment designers and maintenance professionals.
