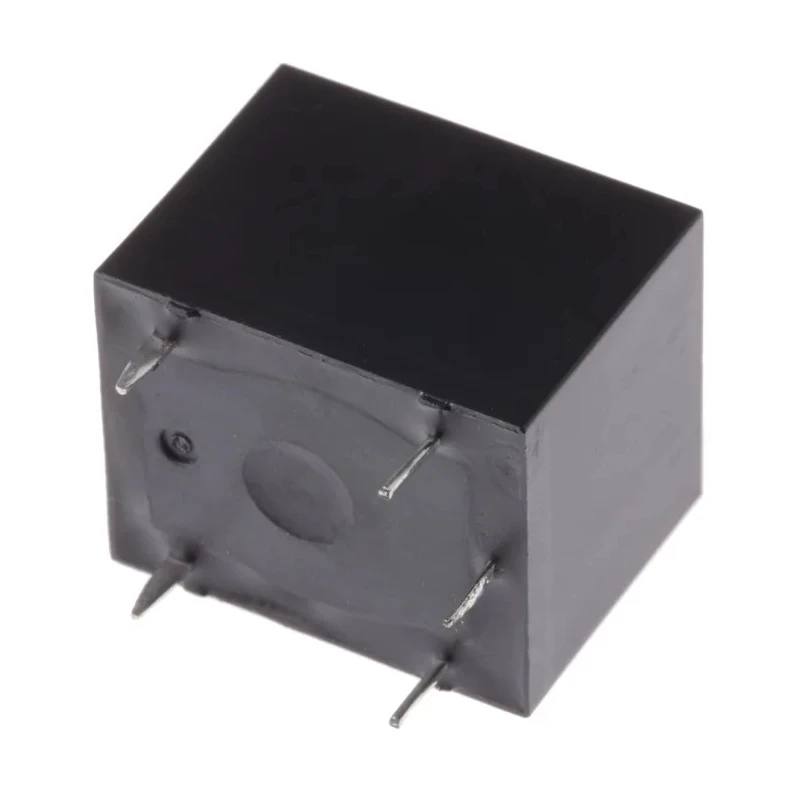

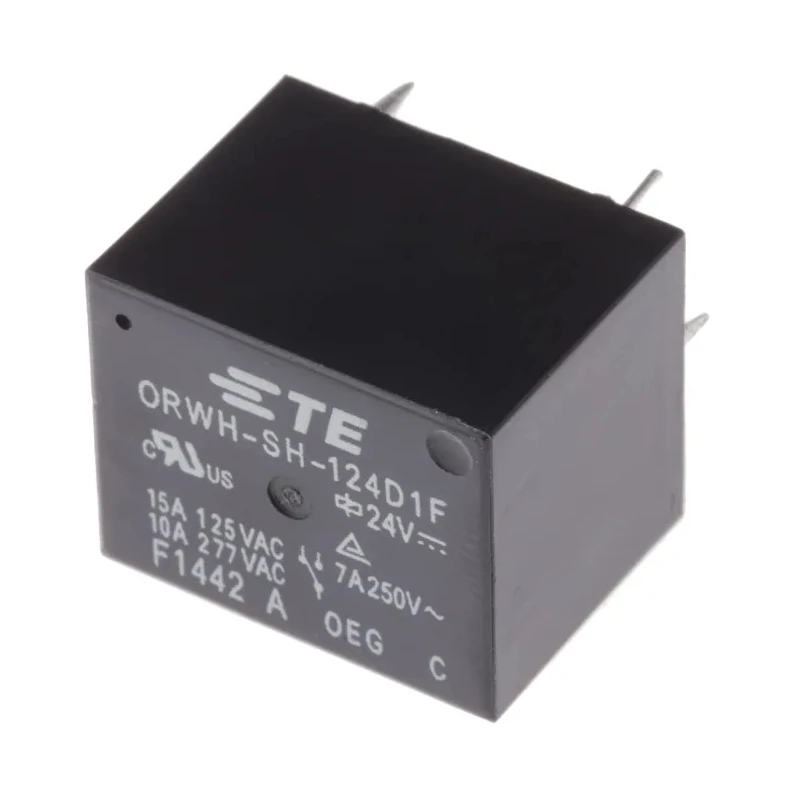

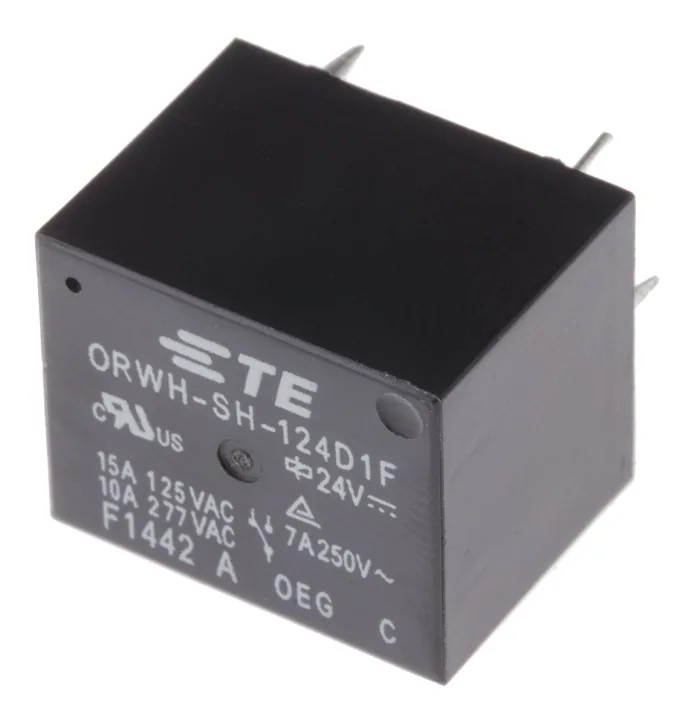

TE Connectivity ORWH Series PCB Power Relay 24V DC Coil 10A Switching Current SPDT 1-1721150-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15.8mm |
| Length | 19mm |
| Width | 15.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ORWH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V |
| Coil Power | 360mW |
Key Features
- Featuring SPDT contact configuration for versatile switching applications.
- Compact dimensions of 19mm length, 15.8mm height, and 15.5mm width improve PCB integration.
- Coil resistance of 1.6kΩ and coil power of 360mW enable efficient operation.
- Suitable for operating temperatures from -30°C up to 70°C ensuring durability in various conditions.
- Contact material made of silver alloy for enhanced conductivity and reliability.
- Mount type and terminal type are designed for PCB mounting with PCB pin connections.
- Conforms to RoHS standards ensuring environmental compliance.
Product Description
TE Connectivity 1-1721150-5 PCB Power Relay from the ORWH series is engineered for high-performance applications requiring 24V DC coil voltage and a switching current of 10A. This miniature Power Relay is specifically designed for printed circuit board mounting with PCB pins, optimizing space in compact electronic assemblies.
The SPDT configuration provides one form C (changeover) contact, offering flexible switching options suitable for control in heating and ventilation appliances, emergency lighting systems, and other industrial automation setups. Its robust silver alloy contacts guarantee long-term electrical reliability and low contact resistance.

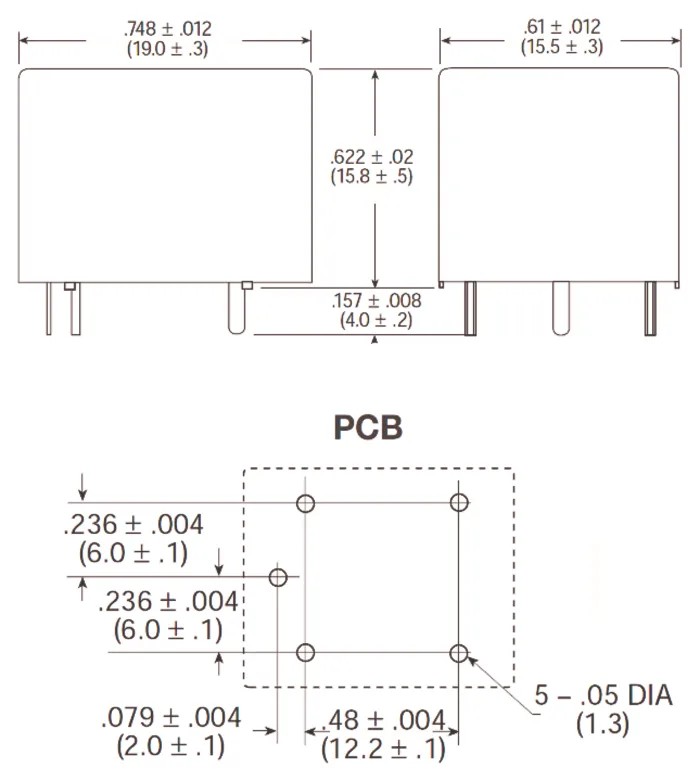

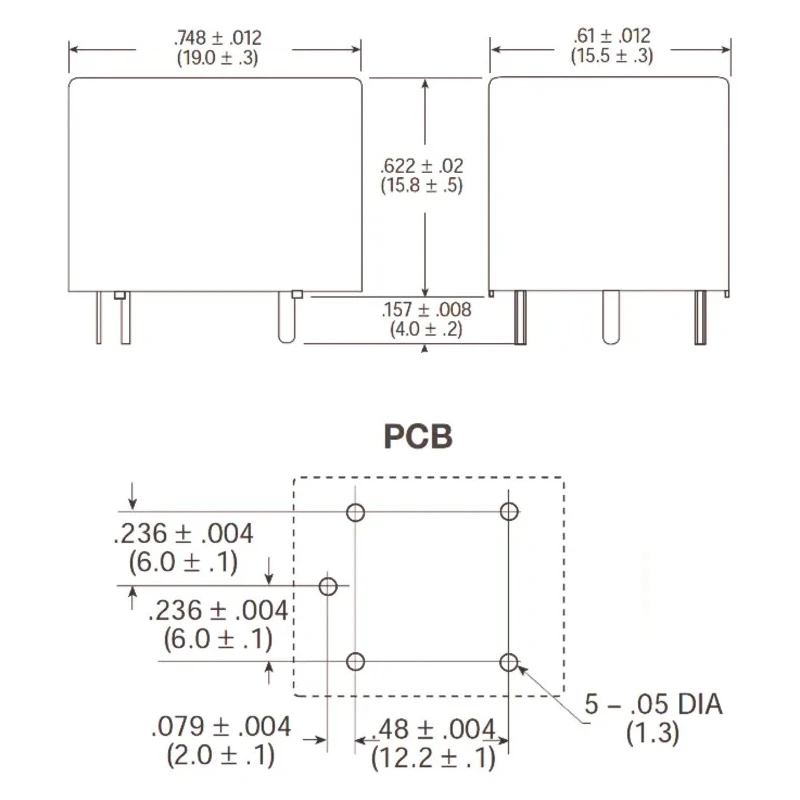

With dimensions of 19mm length, 15.8mm height, and 15.5mm width, it is compact enough for dense PCB layouts. Coil resistance at 1.6kΩ and coil power consumption of 360mW ensure energy-efficient operation. This relay operates reliably within temperature ranges from -30°C to 70°C, making it fit for diverse environmental conditions.
It supports switching voltages up to 28V DC and 277V AC, providing compatibility across multiple electrical systems. Designed according to applicable RoHS standards, the product is compliant with environmental safety requirements.
This relay is ideal for industrial, HVAC, manufacturing, and electronic control applications requiring dependable switching performance and compact design. Featuring SPDT contact configuration for versatile switching applications.
Compact dimensions of 19mm length, 15.8mm height, and 15.5mm width improve PCB integration. Coil resistance of 1.6kΩ and coil power of 360mW enable efficient operation. Suitable for operating temperatures from -30°C up to 70°C ensuring durability in various conditions.
Switching voltage supported: 28V DC and 277V AC for broad electrical compatibility. Contact material made of silver alloy for enhanced conductivity and reliability. Mount type and terminal type are designed for PCB mounting with PCB pin connections.
Conforms to RoHS standards ensuring environmental compliance. Browse the Electronics & Electricals category on EnvMart for more high-quality relays from TE Connectivity and similarly reputed brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current of this relay is 10A.
This model operates with a coil voltage of 24V DC.
The relay has compact dimensions of 19mm in length, 15.8mm in height, and 15.5mm in width.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 1.6kΩ.
The maximum operating temperature is 70°C.
This relay is designed for PCB mounting with PCB pin connections.
The contact material is made of silver alloy, which enhances conductivity and reliability.
The minimum operating temperature is -30°C.
It supports switching voltages up to 28V DC and 277V AC.
Yes, it conforms to RoHS standards, ensuring environmental compliance.
The coil power consumption is 360mW.
